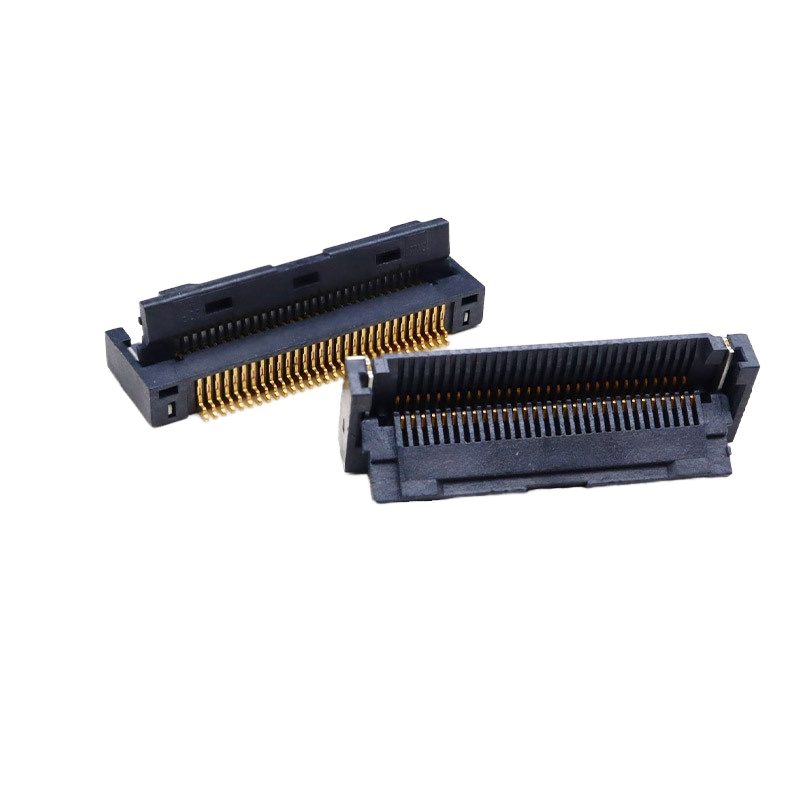

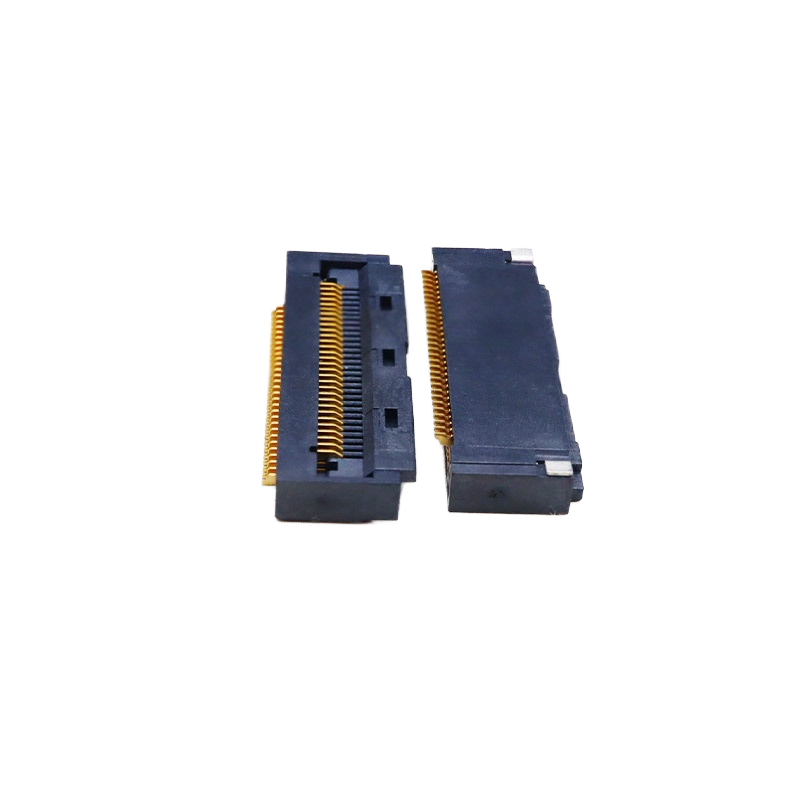

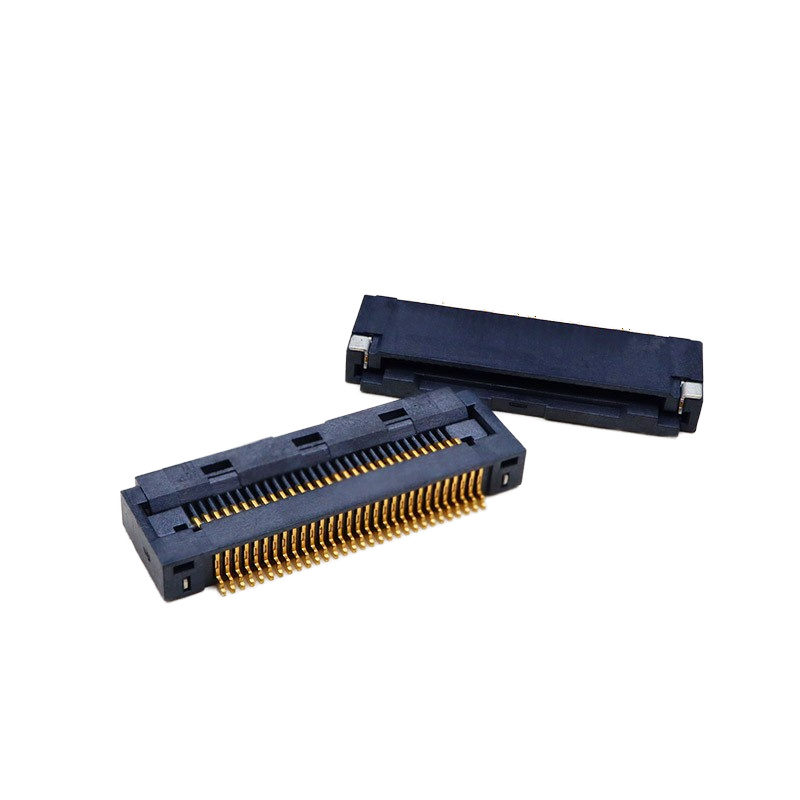

0.5mm Pitch FFC Connector Front Flip with Locking Buckle

30P / 40P / 68P | Flip Cover Down Connection | H2.5 | Black

✅Product Highlights

1,Reliable ZIF / Non-ZIF Locking Buckle Mechanism
Front flip locking design firmly clamps the FFC cable. Prevents cable loosening and signal drop under continuous vibration; anti-vibration test report available. Solves the common failure pain point of cheap flip FFC connectors.
2. Low Profile H2.5mm Height
Compact 2.5mm mounted height, saves PCB vertical space for slim device design.
3,0.5mm Fine Pitch, Down Connection Flip Cover
Front flip-down type, easy FFC insertion, no extra bending space required.
4. Black Housing, Multiple Pin Options: 30P,40P,68P
Ready standard pin counts for fast selection.

Technical Specification Table

🔁 Cross Reference & Equivalent Replacement

Direct alternative to international mainstream 0.5mm front flip down FFC connectors from global famous brands. Pin assignment, footprint & mechanical dimension compatible. Reduce your BOM sourcing cost without redesign PCB layout.

Note: Please verify dimension & vibration requirement for automotive customized project before mass production.

📌 Product Features

1. Front flip locking buckle structure, optional ZIF / Non-ZIF version
2. Flip cover down connection, convenient FFC cable assembly
3. H2.5 low-profile design, ideal for slim consumer & automotive modules
4. LCP black insulator, high-temperature resistant for SMT reflow
5. 30P / 40P / 68P standard pins in stock

More types for reference:

🏆 Product Advantages

1. Anti-vibration locking structure: Avoid intermittent signal failure caused by a loose FFC cable, greatly reducing field return rate.
2. Standard PCB footprint, drop-in replacement, no PCB rework needed.
3. High-temp LCP housing, stable performance during the SMT reflow process.
4. Strict consistency for mass production, less defective rate.
5. Multiple pin options to shorten your project development cycle.

🛠 Application Scenarios

• Automotive on-board display, car instrument panel, vehicle control module
• Notebook, tablet, portable consumer electronics
• LCD / OLED display module
• Medical portable equipment
• Smart home control panel
• Industrial slim display unit

📦 Packaging

• Tape & Reel (Reel): Standard embossed carrier tape, fit for SMT automatic pick‑and‑place machines, directly loaded on customer production line for mass assembly.
• Tube (Tube Packing): Plastic tube packaging, mainly for prototypes, small‑batch trial runs, or manual assembly scenarios.

🏭 Factory Certifications & Custom Service

• Certifications: RoHS, REACH, UL94V-0
• MOQ: Low MOQ for mass orders
• Sample Policy: Free samples available, fast sample delivery
• Custom Service: Custom pin count, plating thickness, modified lock structure, Non-ZIF version, customized marking available.

📖 Customer Selection Guide

1. Confirm pin number: 30P /40P /68P standard; contact us for other custom pin count
2. Confirm locking type: Choose ZIF or Non-ZIF according to your assembly process
3. Application environment: For automotive projects, request an anti-vibration test report before validation
4. FFC cable: Match with 0.5mm pitch FFC flat cable
5. PCB footprint: Use our provided drawing for PCB layout verification
6. Reflow soldering: Follow our soldering profile to prevent housing deformation
