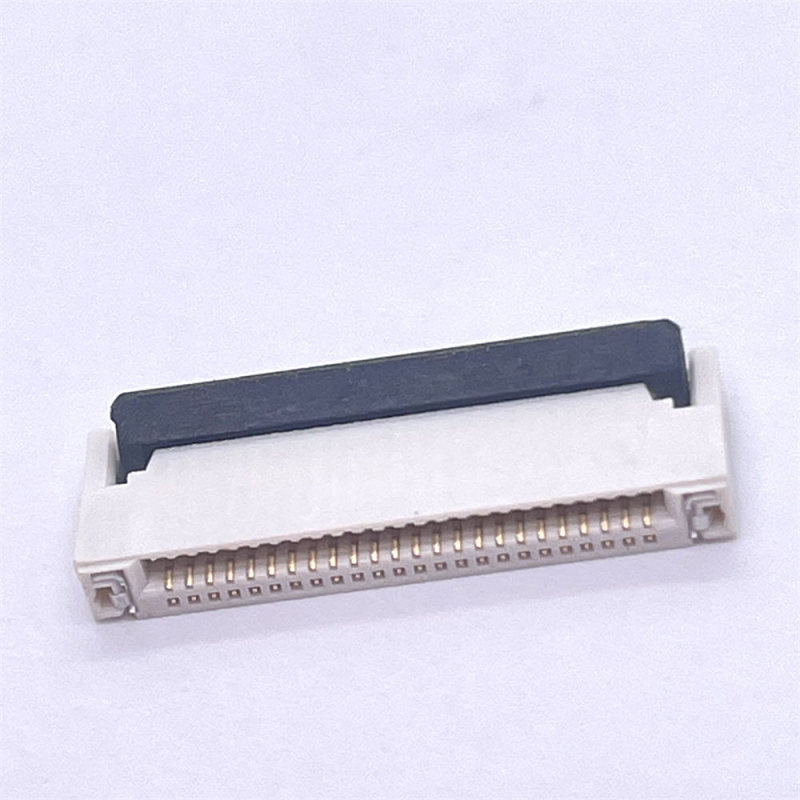

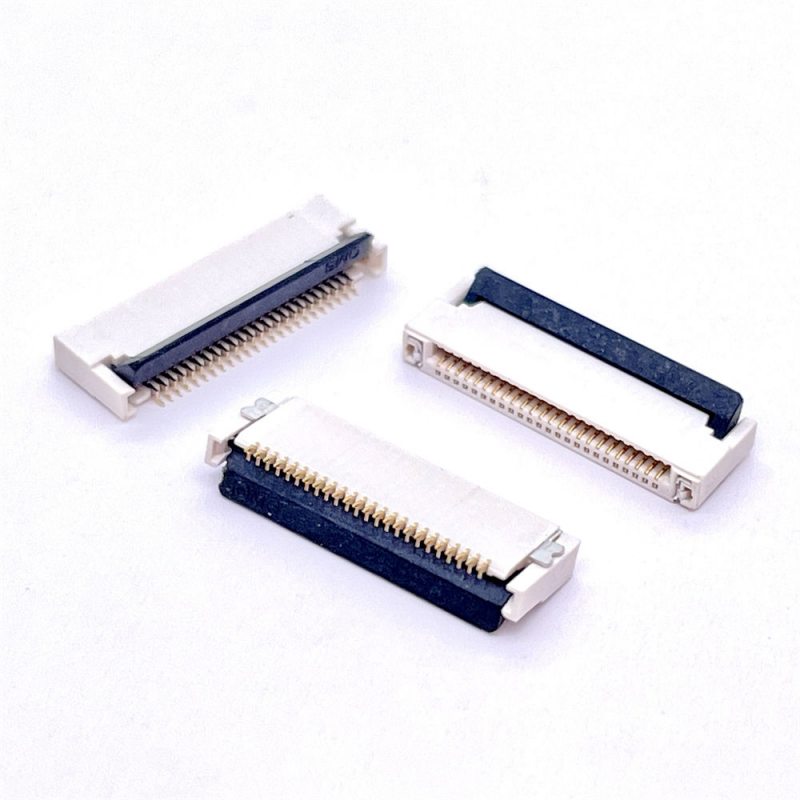

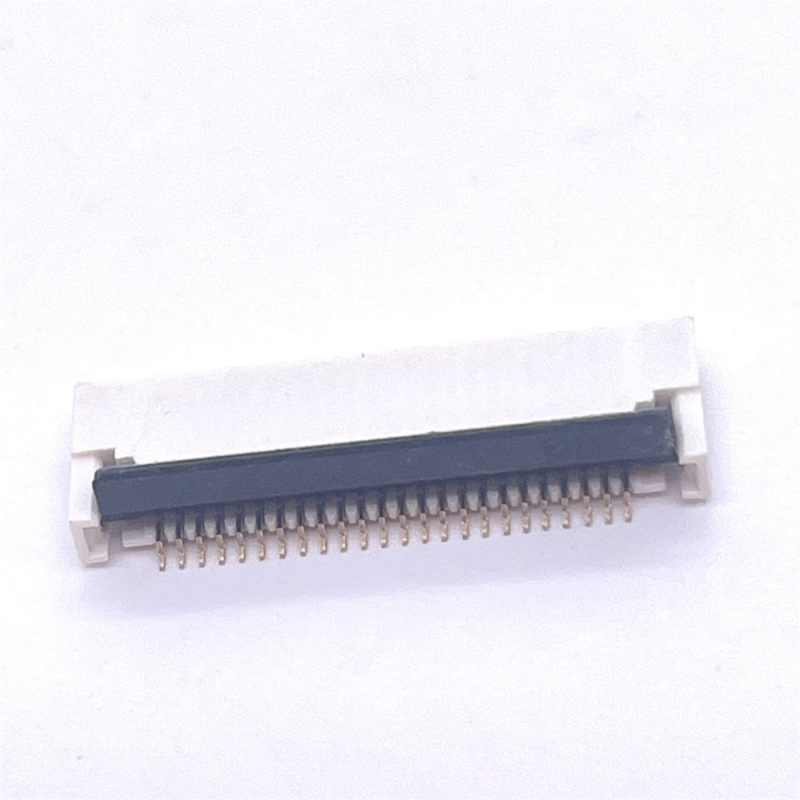

0.5 mm Pitch H2.0 mm Flexible Flat Cable Assembly Dual Contact Type FFC FPC Connector

Product Highlights

0.5 mm pitch dual‑contact FFC/FPC connector with 2.0 mm mated ultra‑low profile. Supports ZIF / Non‑ZIF dual locking mechanism with anti‑pop‑out stable actuator structure. Passed strict multi‑axis vibration test; dual‑side contact eliminates intermittent signal risk under shock & vibration. SMT surface‑mount, high‑temperature LCP housing, RoHS‑compliant, available for reel/tube packaging for automatic SMT assembly.

Full Technical Specifications

Electrical Specifications

Mechanical Performance Parameters

Material & Plating / Environment & Soldering

Replacement for International Brands

Direct drop‑in functional replacement for mainstream international series:

• Hirose: FH52, FH69 series 0.5 mm pitch 2.0 m height dual‑contact FPC connectors
• Molex: Easy‑On 502244 series 0.5 mm pitch low‑profile FPC receptacles
• JAE: FA10‑style dual‑contact 0.5 mm pitch SMT FPC connector series

Product Features

‑ Dual‑side dual‑contact terminal design, anti‑vibration, anti‑signal‑dropout
‑ 2.0 mm ultra‑low mated height, space‑saving compact layout
‑ Optional ZIF / Non‑ZIF flip‑lock actuator, anti‑pop‑out locking structure
‑ High‑temperature‑resistant LCP housing for standard SMT reflow soldering
‑ Right‑angle SMT mounting; compatible with standard 0.3 mm thickness FFC/FPC
‑ Available in multiple pin counts; RoHS compliant
‑ Dual‑packing option: Tube & Tape‑on‑Reel for automatic pick‑and‑place

More types for reference:

Packaging Method

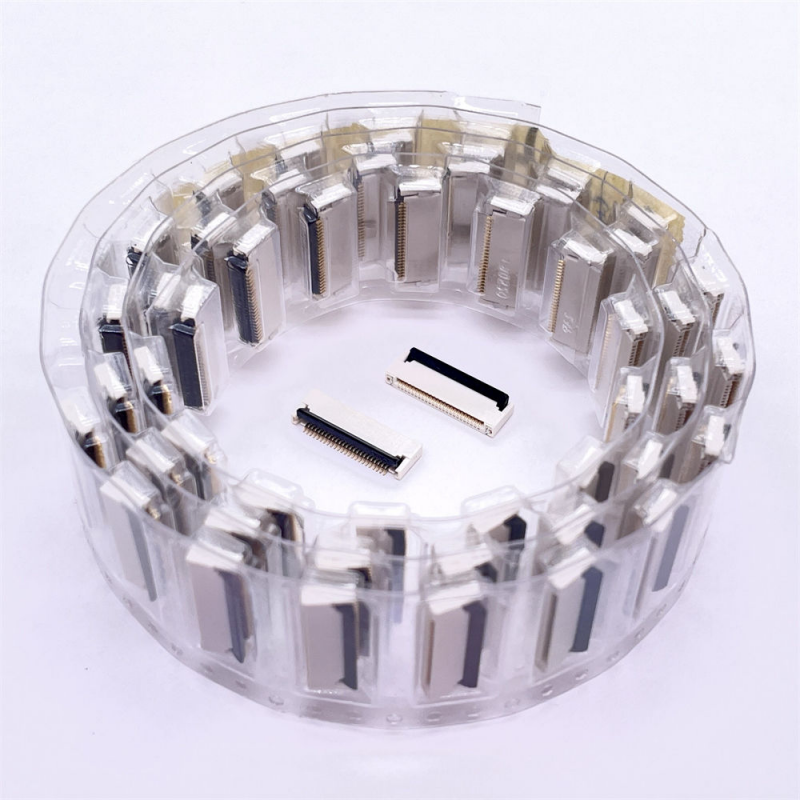

• Tape & Reel (Reel): Standard embossed carrier tape, fit for SMT automatic pick‑and‑place machine, directly loaded on customer production line for mass assembly.
• Tube (Tube Packing): Plastic tube packaging, mainly for prototypes, small‑batch trial‑run or manual assembly scenarios.

Factory Certification & Custom Service

‑ Compliance: RoHS certified; factory implements standardized IQC‑IPQC‑FQC full‑process quality control.

‑ Sample Policy: Support free samples / fast sample delivery.

‑ MOQ: Standard series low MOQ; customized solution subject to drawing evaluation.

‑ Lead Time: Sample order 3 working days; mass‑production order 1‑3 weeks (depends on pin‑count &      customization scope).

‑ Customizable items: Pin‑count adjustment, gold‑plating thickness modification, special actuator requirements, special packing demand.

FAQs

1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2. Can you make your products according to our demand?
Yes, the specifications of products can be customized if you can meet our MOQ.

3. How to guarantee the quality of your products?
1) We promise that within 30 days of a quality problem, we will give you a refund.

2) Strict inspection during production.

3 ) Strict sampling inspection of products before shipment, and intact product packaging is ensured.

4. What are our product certifications?
ISO9001 and some other ROHS certifications.

5. How long can I get the goods?
Most goods are in stock; delivery time is about 1-5 days after receiving payment. For customized requirements, the time will be a little longer, as we confirmed.

6. What kind of logistics do you use for delivery?
We mainly deliver goods by DHL, UPS, FEDEX, EMS, and other express delivery. We will choose the most cost-effective logistics for customers. Also supported goods picked up by your forwarder.

7. Why should you buy from us?
We have 16 years of industry experience. We have cooperated with thousands of companies. Product quality is reliable.

8. What products does your company mainly sell?
Our company's main products include FFC/FPC connectors / Wafer connector /SIM card connector / Memory card connector / USB connector / Type C connector / HDMI connector / RJ45 series / B to B connector and Pin header connectors and so on.
