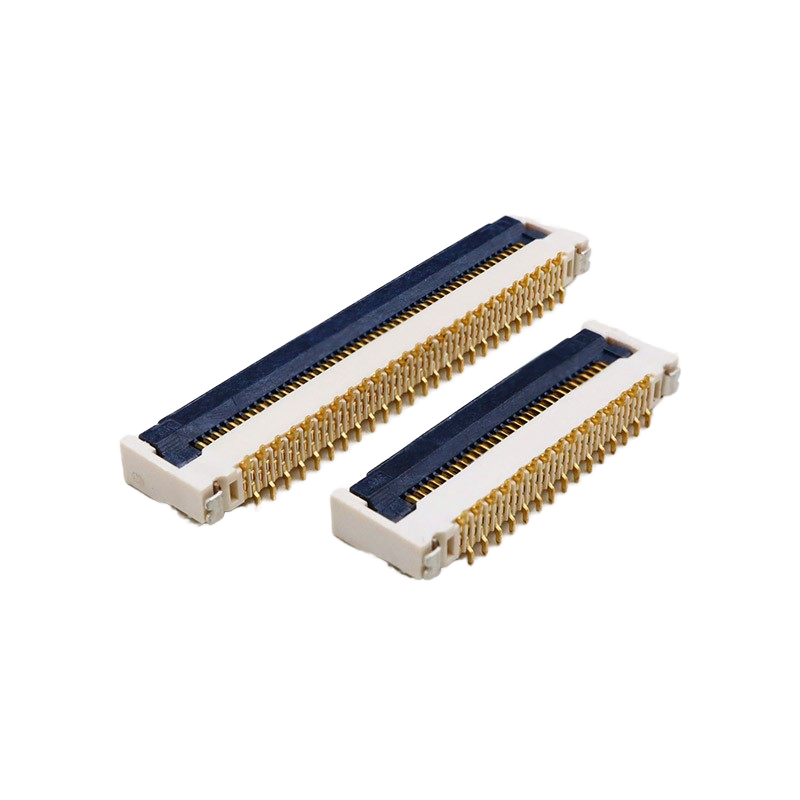

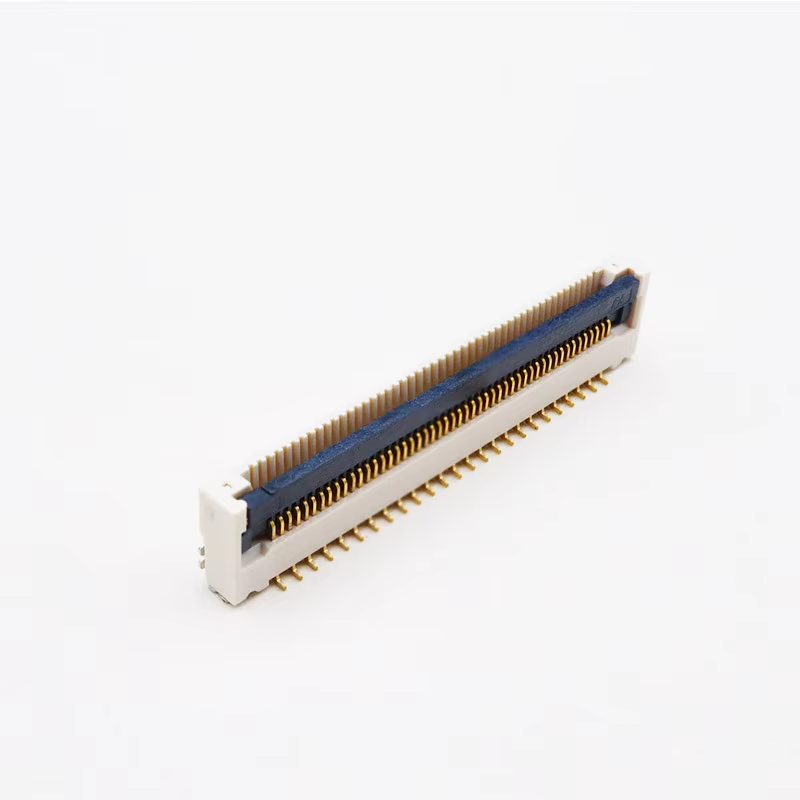

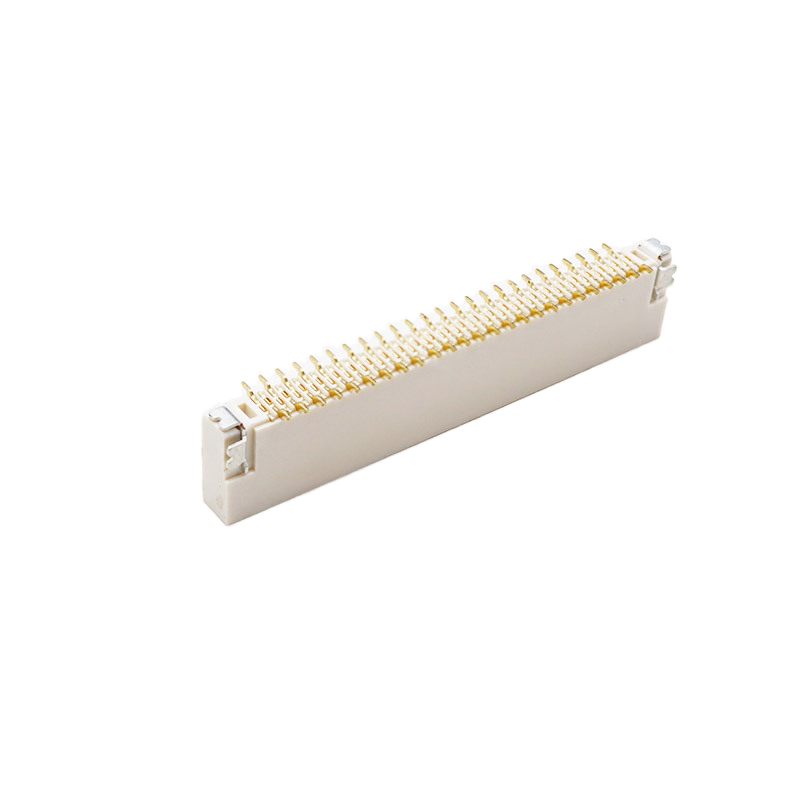

0.5mm Pitch Flip-Top FPC Connector | Vertical SMT, H5.9, 30/40/50P

✅Product Highlights

1. Flip-Top ZIF Locking Mechanism: Secure flip-top lock design prevents FPC loose-out under continuous vibration. Solves a common pain point: easy disconnection & contact failure on vehicles & portable electronics. Non-ZIF version optional upon request.
2. Ultra-Low Profile H5.9mm Height: Compact 5.9mm stacking height, saves internal PCB space for slim consumer & automotive assemblies.
3. Verified Vibration Resistance: Passed strict vibration reliability test, stable contact performance under bump & shake environment.
4. Gold-plated Contact Terminal: High-purity gold plating, low contact resistance, excellent oxidation resistance for long service life.

Technical Specification Table

🔁 Cross Reference & Equivalent Replacement

Direct replacement for major international FPC connector brands. Compatible footprint keeps PCB redesign minimal.

Suitable drop-in replacement for same spec 0.5mm pitch vertical flip top FPC connectors. We support pin-to-pin compatible modification if you need customized footprint.

📌 Product Features

• Flip-top locking structure, easy FPC insertion & removal
• Vertical patch layout, simple PCB layout routing
• LCP high-temperature housing, withstand reflow soldering
• Halogen-free, RoHS-compliant
• Gold-plated contacts for stable signal transmission

More types for reference:

🏆 Product Advantages

1. Reliable ZIF flip lock, effectively avoids FPC pop-out under vibration (solves the frequent failure pain point of cheap connectors)
2. H5.9 slim height, ideal for thin device internal space constraints
3. Strict vibration reliability verified, suitable for vehicle-mounted high-shock scenarios
4. Standard reel tape packaging, directly compatible with automatic SMT placement machine
5. Stable batch consistency, lower failure rate than generic low-cost connectors

🛠 Application Scenarios

Automotive interior electronics

On-board display,

Tablet,

Notebook,

Smart wearable,

Medical portable device,

Industrial touch panel,

Smart home control module

📦 Packaging

• Tape & Reel (Reel): Standard embossed carrier tape, fit for SMT automatic pick‑and‑place machines, directly loaded on customer production line for mass assembly.
• Tube (Tube Packing): Plastic tube packaging, mainly for prototypes, small‑batch trial runs, or manual assembly scenarios.

🏭 Factory Certifications & Custom Service

• Certifications: RoHS, REACH, UL94V-0
• MOQ: Low MOQ for mass orders
• Sample Policy: Free samples available, fast sample delivery
• Custom Service: Custom pin count, plating thickness, modified lock structure, Non-ZIF version, customized marking available.

📖 Customer Selection Guide

1. Confirm pin number: 30P/40P/50P, pitch fixed at 0.5mm
2. Lock selection: ZIF flip-top for frequent FPC plug/unplug; Non-ZIF for fixed assembly
3. Height: This model has a fixed stacking height of H5.9mm
4. Working environment: Select this version if your product faces continuous vibration requirements
5. Soldering: Only for SMT reflow process; Hand soldering not recommended
