9P/11P/13P/15P/25P/39P/45P/51P Front Insertion and Rear Locking FPC Connector 0.3 Pitch 1.0H Pitch High-Precision Connector

Product Highlights

0.3 mm pitch, 1.0 mm ultra‑low mated‑height front‑insert rear‑locking FPC socket, available in ZIF / Non‑ZIF locking versions. Reinforced rear lock actuator delivers stable clamping force and passes strict vibration‑shock tests without FPC loose‑off. Multi‑pin range 9P‑51P for high‑density signal transmission. LCP high‑temp housing supports SMT reflow, RoHS compliant, direct drop‑in replacement for mainstream imported series for consumer & industrial compact devices.

Full Technical Specifications

Electrical Specifications

Mechanical Performance Parameters

Material & Plating / Environment & Soldering

Compatibility & Cross‑Reference (Replacement for International Brands)

Pin‑to‑pin mechanical & electrical compatibility for equivalent series of JAE, TE, Molex, Hirose 0.3 mm pitch front‑insert rear‑lock FPC connectors.

Product Features

• Front‑insert rear‑locking mechanical structure; dual‑option ZIF / Non‑ZIF actuator for different assembly‑force requirements
• Ultra‑low mated height: 1.0 mm, saves critical inner space for slim‑profile hardware
• Reinforced rear lock‑latch mechanism: consistent holding force, anti‑vibration & anti‑shock validated, avoids intermittent signal dropout
• Phosphor‑bronze multi‑beam contact structure, stable signal integrity for high‑density circuits
• High‑temperature LCP UL94‑V0 housing, withstands standard lead‑free SMT reflow without housing warpage
• Covers pin count: 9P,11P,13P,15P,25P,39P,45P,51P; supports 0.2 mm thickness standard FPC cable
• Available in Tube & Reel embossed tape packaging for manual assembly or full‑auto SMT pick‑and‑place
• RoHS‑compliant; supports customized gold‑plating thickness, mechanical tweaks per customer drawing

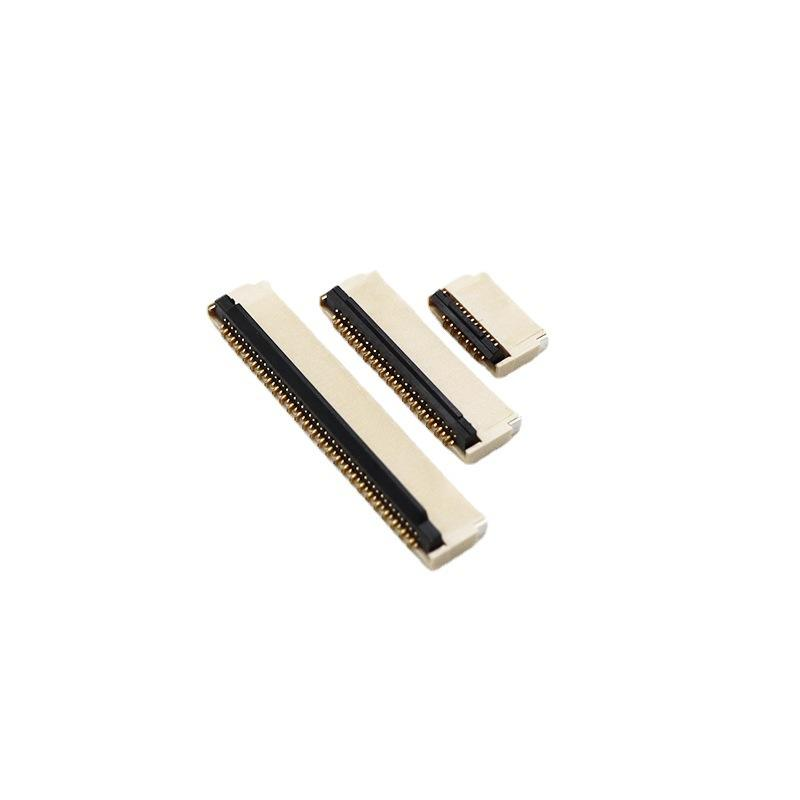

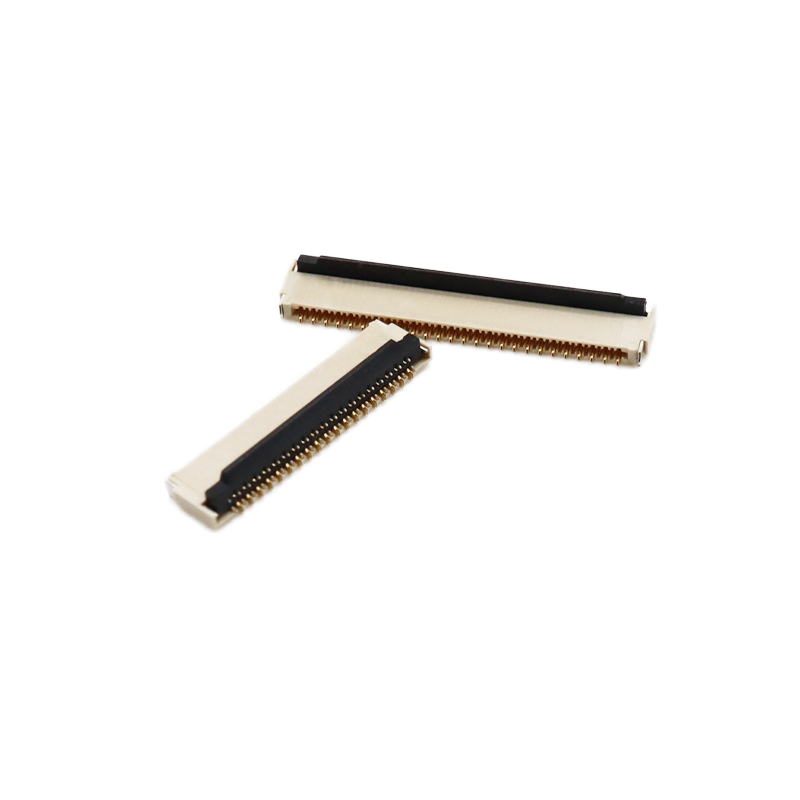

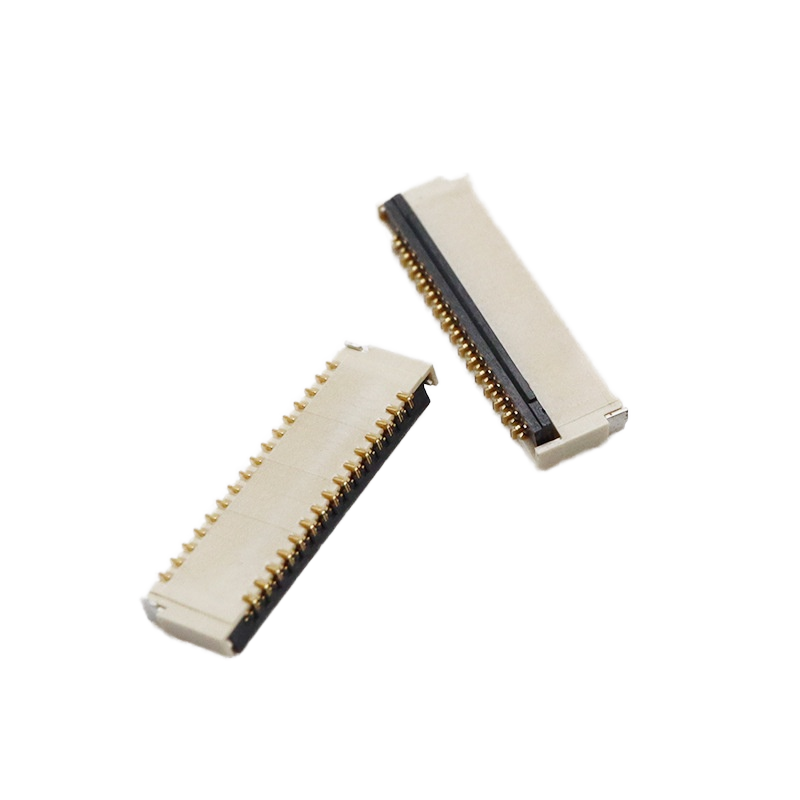

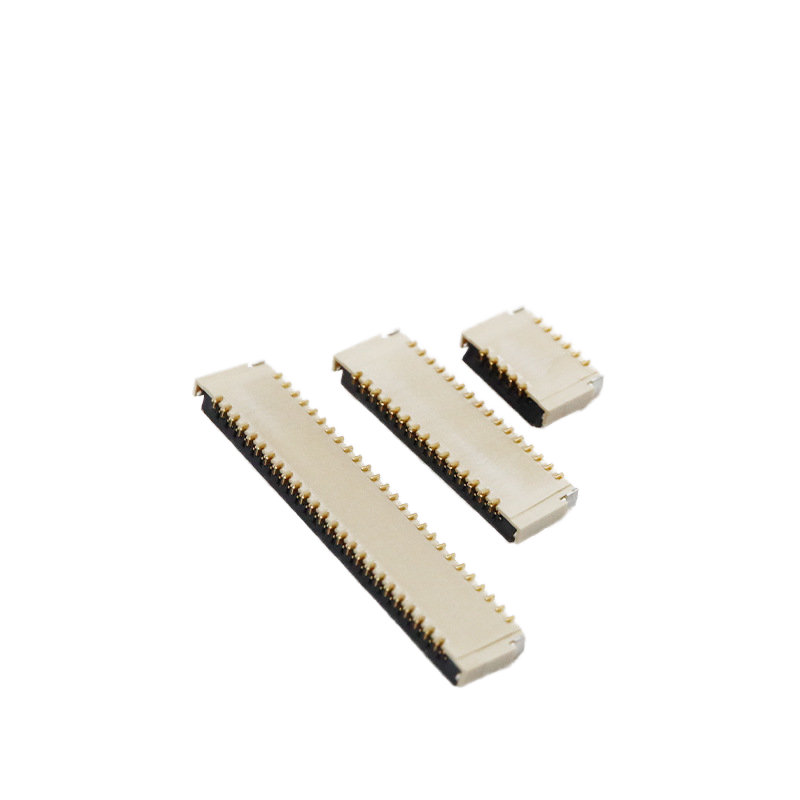

More types for reference:

Packaging Method

• Reel (Tape‑and‑reel): Standard embossed tape reel packaging, fully compliant with IEC 60286‑3, directly compatible with SMT automatic pick‑and‑place machines, for mass‑volume SMT assembly.
• Tube packaging: Available upon special request, mainly for manual prototype assembly; cannot be used for automatic SMT placement.

Factory Certification & Custom Service

• Certifications: RoHS compliant; in‑house lab for vibration, thermal shock, and mating cycle reliability tests
• Sample Policy: Support free samples / fast sample delivery
• MOQ: 1000 pcs for standard parts; custom parts subject to drawing evaluation
• Customization: Adjust pin‑count, gold‑plating thickness, actuator type, add polarization key; custom tape‑and‑reel specification
• Lead‑time: Samples 3 working days; mass‑production orders 1‑3 weeks according to order quantity
