Product Details:
|
| Pitch: | 0.5mm | Mounting Type: | Vertical / ZIF |
|---|---|---|---|
| No. Of Positions: | 4-50pin | Type: | Slide Lock |
| Service: | OEM/ODM | Lead Time: | 7-10 Working Days |
| High Light: | Vertical FFC FPC Connector,0.5mm FFC FPC Connector,0.5mm 50 pin fpc connector |
||

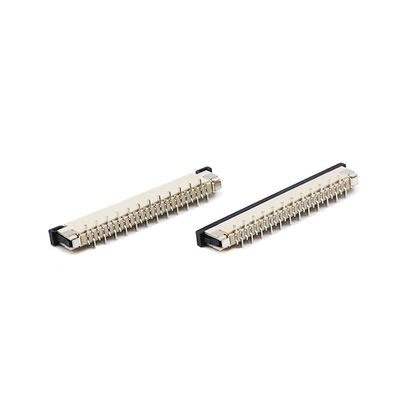

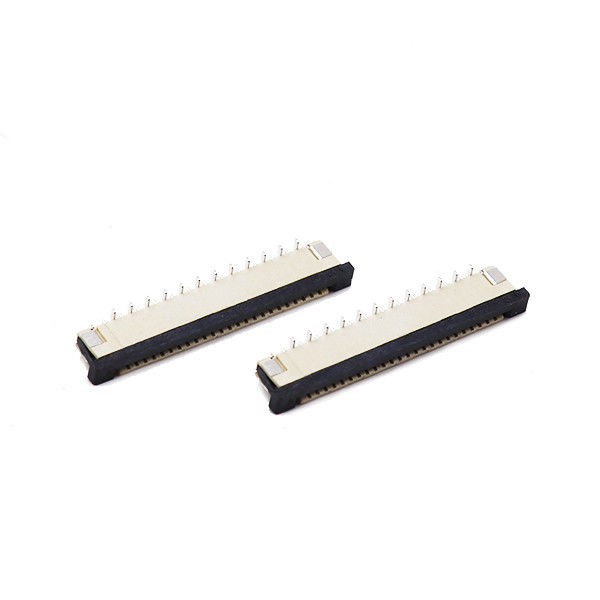

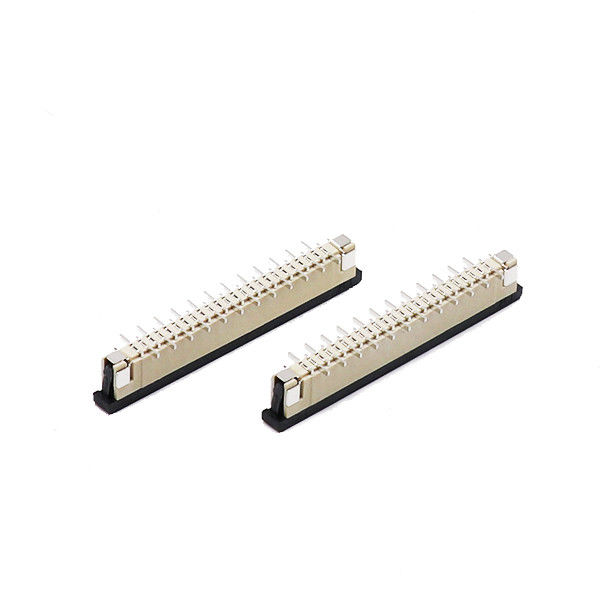

Vertical Type Flexible FFC FPC connector 0.5mm pitch Easy-On
Product Description
This Series are suitable for applications in which high contact reliability is required under harsh environments regarding vibration, temperature, humidity, etc. Applications include in-vehicle units such as car navigation system units, GPS units, and car audio products, medical or industrial equipment, and OA or AV equipment. FPCs/FFCs with tabs prevent improper mating, enable secure connection, and increase the force to retain FPCs/FFCs.
| Type | FFC FPC connector vertical |
| Spacing | 0.5mm |
| height | 3.3mm |
| PIN number | 4-22,24-30,32-36 |
| Rated current | 0.5A AC (RMS) |
| Rated voltage | 50V AC(RMS) / DC |
| Operating temperature range | -40º C ~ +85º C |
| Insulation resistance | 500 MΩ Min |
| Contact resistance | 20 mΩ Max |
| Voltage resistance | 200V AC r.m.s |
Description
1. FFC connector is flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).
Competitive Advantages
1, full experience in connector business
2, Strict shipping ,100% tested before delivery
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Samples can be provided for free in 1-3 days
5, Fast delivery,purchasing orders shipped in 3-10 days
Product Application
DVD, digital photo frame, car stereo, monitor, fax machine, printer, scanner, car navigation, computer, mobile phone, TV, copier, car airbag, MP3, MP4, micro motor and other electrical equipment.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
