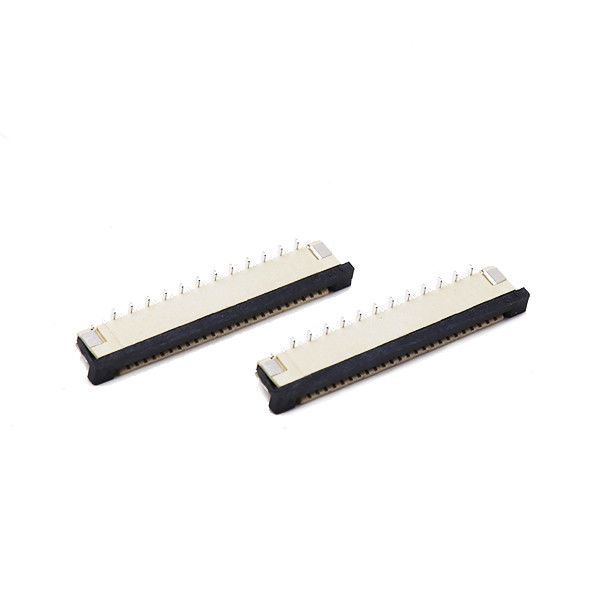

Name: 4-50 Pin 1.0mm Pitch FPC FFC Connector Vertical FPC To Board Connector
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: FPC**-L*T1-0000-A
Price: 4.01 USD
Availability: InStock

Home > Products > FFC FPC Connector >

4-50 Pin 1.0mm Pitch FPC FFC Connector Vertical FPC To Board Connector

1.0mm FPC FFC Connector Vertical

50 Pin FPC FFC Connector Vertical

1.0mm FPC To Board Connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FPC**-L*T1-0000-A

Request A Quote

4-50 Pin 1.0mm Pitch FPC FFC Connector Vertical FPC To Board Connector

Product Details

Pitch:

1.0mm

Type:

ZIF S/A Reverse Type

Positions:

4-50pin

Lock Type:

Slide Lock

Plating:

Tin-plating

Terminal/Contact:

Copper Alloy

Highlight:

1.0mm FPC FFC Connector Vertical

50 Pin FPC FFC Connector Vertical

1.0mm FPC To Board Connector

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C,T/T,Payyal

Supply Ability

4KK pcs

0.5mm Pitch Vertical Unlocked SMD Misalignment Pin FPC Flat Wire Socket FFC/FFC Connector for Flat Flex Unlocking Flex Connector

Get Best Price

Gold-plated 0.5mm Pitch FPCFFC Connector 2.7H Post-Pressure Horizontal SMD 10-68Pin 50V 0.5A

Get Best Price

0.5mm Pitch Butterfly Lock FFC/FPCH Connector Horizontal Lower Connection with 2.55H Height Flip Cover for Flat Flex Electronics

Get Best Price

40 Pin FFC Connector 0.5mm Pitch

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

Vertical Type FFC FPC Connector Pitch 1.0mm Electrical Wire Connectors

Highlights

Vertical top‑entry SMT FPC‑to‑board connector, 1.0 mm pitch, pin count configurable from 4 pins up to 50 pins.
ZIF flip‑lock actuator design, low insertion force, robust cable retention against vibration & cable pull‑out.
Phosphor‑bronze contact terminals, optional tin / selective gold plating for signal‑critical circuits
Fully tape‑and‑reel packaged for high‑volume SMT automated assembly; compatible with standard pick‑and‑place equipment.
RoHS 2.0 & REACH compliant; UL94‑V‑0 high‑temperature housing material for reflow soldering process
Flexible customization: pin count, plating thickness, contact type, PCB footprint modification & OEM marking support
Cost‑effective drop‑in alternative to major branded equivalents, short lead‑time for prototype & mass production orders

Description

Pitch	1.0mm
No. Of Positions	4-50pin
Mounting Type	Vertical / ZIF
Contact Location	Single-sided contact
Type	Slide lock
Current Rating	0.5A/Pin Max
Voltage Rating	50V AC/DC MAX
Withstanding Voltage	250V AC,1min
Cover Material	LCP UL94V-0 black
Housing	LCP UL94V-0 Natural
Terminal/Contact	Copper alloy
Plating	Tin-plating
Operation Temperature	-40℃ to +85℃
Lead Time	7-10 working Days

4-50 Pin 1.0mm Pitch FPC FFC Connector Vertical FPC To Board Connector

Material & Electrical Characteristics

Item	Specification	Remarks
Housing Material	LCP / PA6T	UL94‑V‑0 flame retardant
Actuator Material	PPS / LCP	High‑temperature resistant
Contact Terminal Material	Phosphor Bronze	High spring‑back performance
Plating Option‑1	Contact & Solder Tail: Matte Tin	For general‑purpose signal
Plating Option‑2	Contact Area Selective Gold Plating (0.03‑0.1μm Au over Ni barrier)	For high‑humidity / high‑vibration environment
Rated Current	0.5 A per contact	Signal‑level application
Rated Voltage	50 V AC/DC	Max working voltage
Contact Resistance	≤30 mΩ (initial)	After mating under test conditions
Insulation Resistance	≥500 MΩ	DC 100 V testing
Withstand Voltage	500 V AC / 1 minute	No breakdown / flash‑over

Design &Technical strength
We have more than 20 years of experience in the connector industry; our engineers can support your new project. Design a new tooling time:30-45 working days.

Competitive Advantage

Keyouda has various types of appearance and many kinds of internal schematic products, high quality, customer first,100% test, 0 defects, and short lead time are our best advantages

Target Application Industries

Consumer Electronics: Display modules, POS terminals, household appliances, smart home panels, portable handheld devices
Industrial Control: Human‑machine interface HMI, sensor modules, industrial display, test‑measurement equipment
IoT & Smart Hardware: Gateway devices, surveillance cameras, drone peripheral modules, smart lighting control
Medical Equipment: Patient monitoring auxiliary modules, non‑critical signal interconnection for medical devices
Peripheral Equipment: Printer modules, scanner internal interconnects, small‑size LCD panel driver boards

FAQ

Q1: Can this connector work with both FPC rigid‑flex and standard FFC flat cables?
A1: Yes. It supports both 0.3 mm‑thickness FPC and matching FFC flat cables. Please make sure conductor pad orientation matches the contact side of the connector.

Q2: What will happen if I use an FPC thicker than 0.33 mm?
A2: An over-thick flex cable will prevent the flip‑lock actuator from fully closing, causing insufficient contact pressure and an increased risk of intermittent connection. Strictly follow the recommended flex thickness.

Q3: Is this connector automotive grade?
A3: Standard version is for consumer & general‑industrial use. For automotive applications, please contact our sales team for an automotive‑grade modified variant with enhanced material & test standards.

Q4: Can I hand‑solder this connector instead of SMT reflow?
A4: Hand‑soldering is allowed for prototype debugging only. Do not apply heat to plastic housing; limit single‑pin soldering time to under 5 seconds. Hand‑soldering is NOT recommended for mass production.

Q5: What is the difference between front‑flip and back‑flip ZIF actuator?
A5: Front‑flip: latch sits on FPC insertion side, easy manual operation. Back‑flip: latch is located opposite the insertion side, delivers superior cable retention force for a vibration‑heavy environment.

Q6: Can you modify the PCB footprint for our existing old‑design replacement project?
A6: Yes, footprint modification service is available. Please provide your original PCB drawing; our engineering team will evaluate feasibility and NRE cost.

Q7: What is MOQ and sample lead‑time?
A7: Free engineering samples available; sample lead‑time 1‑3 working days. Mass‑production MOQ depends on configuration; tape‑and‑reel standard parts support low‑MOQ orders.
