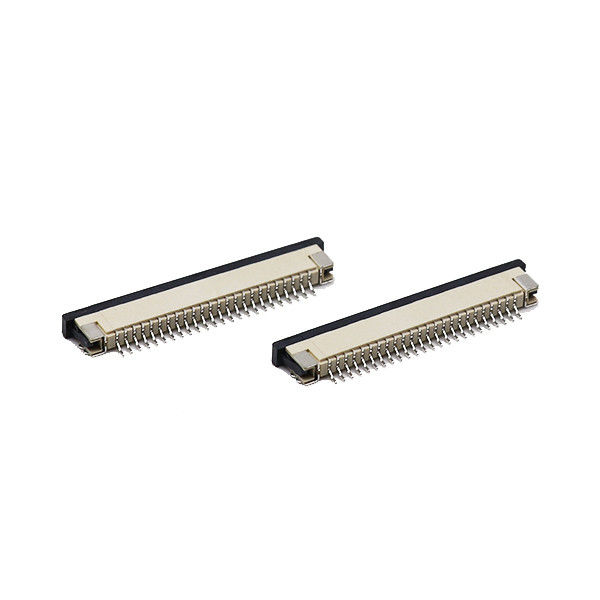

20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height

20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height
20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height
20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height 20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height 20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height

Large Image :  20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: FPC**-T2T1-00**-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height

Description
Pitch: 1.0mm Height: 2.0mm
Lock Type: Slider Series Withstanding Voltage: 250V AC,1min
Mounting Type: SMT/ZIF Voltage Rating: 50V AC/DC MAX
High Light:

2.0mm FFC FPC connector

,

ZIF ffc fpc connector

,

1.0mm 20 pin fpc connector

20pin FFC FPC connector 1.0mm Pitch FPC Connector H=2.0 right ZIF SMT slider series



Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.



Description

This Series are suitable for applications in which high contact reliability is required under harsh environments regarding vibration, temperature, humidity, etc. Applications include in-vehicle units such as car navigation system units, GPS units, and car audio products, medical or industrial equipment, and OA or AV equipment. FPCs/FFCs with tabs prevent improper mating, enable secure connection, and increase the force to retain FPCs/FFCs.



Pitch 1.0mm
Height 2.0mm No. Of position: 4-40pin
Mounting Type SMT/ZIF
Contact Location Single-sided contact
Type Slide lock
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Tin-plating / Gold-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days


20 Pin SMT ZIF FFC FPC Connector 40 Pin 1.0mm Pitch 2.0mm Height 0


Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
We have more than 30 units automation equipments to product as possible
We consists of 2 subordinations , located partly in Hubei ,Guangdong
With large scale of production lines, we can reach to cost reduction at the most extent




Service

XTK Offer good pre-sales & after-sales service &Strong technical support



1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:3-5 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

8. kits if customers are not satisfied)
