0.5mm Pitch Flip Cover H1.8 80 Pos ZIF FFC FPC Connectors 50V 500V -20~+85℃ 505110 505110-8091

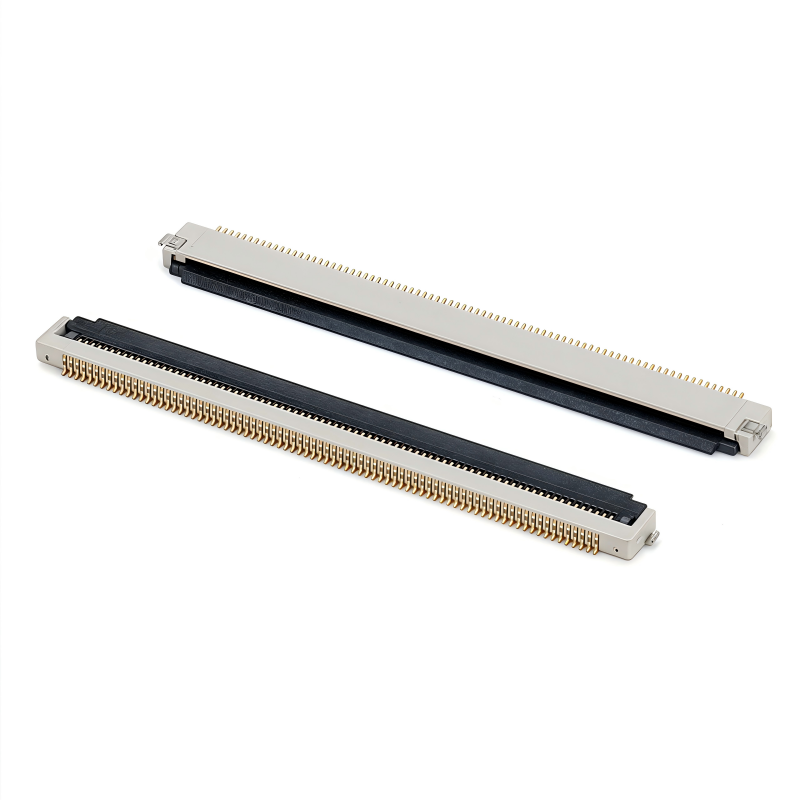

0.5mm pitch 80-pin ZIF flip-type FFC/FPC connector, H1.8 stacked height, double contact design, -20~+85℃, SMT reel packaging, direct replacement for Molex 505110-8091, for display, IoT, and smart device PCB cable connection.

Product Highlights

• Blind Mating & Self-Alignment: Polarized housing + cable guiding tab prevents reverse insertion and compensates for minor assembly offset, avoiding pin damage during manual or auto assembly.
• High-Speed Signal Transmission: Dual contact structure ensures stable contact impedance, supports high-speed LVDS signal transmission for display modules.
• Low Mated Height: Stack height H1.8mm, ultra-slim profile to fit compact PCB stacking requirements.

Technical Specifications

Compatible / Alternative Brand Statement

This 80P 0.5mm flip ZIF FFC/FPC connector is a drop-in replacement for Molex 505110 series, part number 505110-8091. Same footprint, pinout, and mechanical dimensions; direct PCB substitution without PCB redesign.

Product Features

1. Front flip ZIF locking design, zero insertion force for FFC/FPC cable insertion.
2. Dual bottom contact terminal, self-cleaning contact surface, stable connection under vibration.
3. Built-in anti-misalignment polarisation, eliminate reverse assembly risk.
4. Reserved vacuum pick & place area, fully compatible with SMT production.
5. Ultra-low profile H1.8mm, saves vertical space for slim devices.

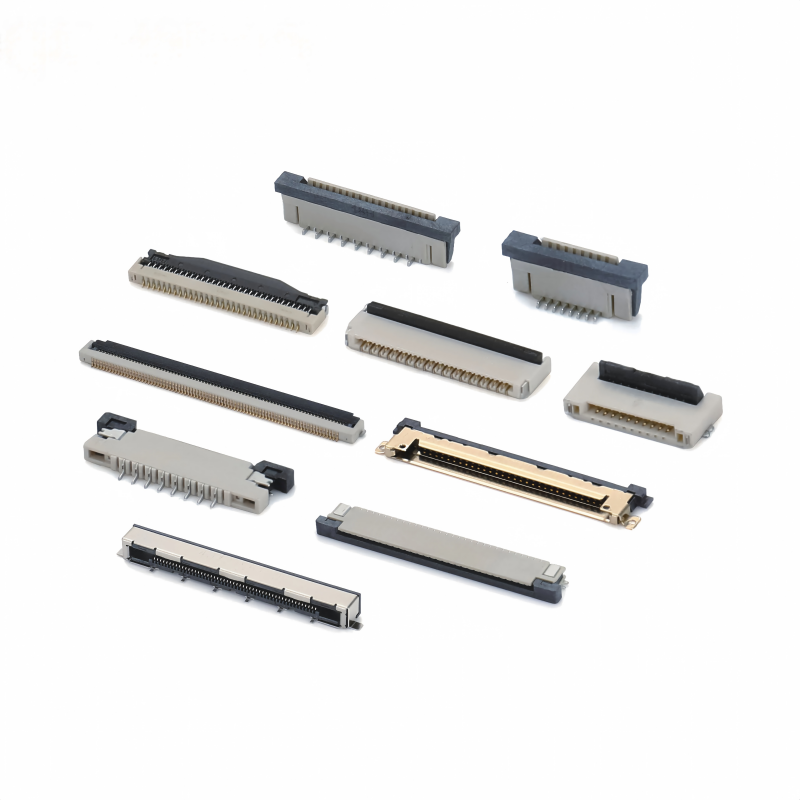

More types for reference:

Product Advantages

1. Cost-effective alternative: Pin-to-pin compatible with Molex 505110-8091, shorter lead time, reduces BOM cost.
2. Robust signal stability: Dual contact structure reduces intermittent failure risk for display signal.
3. Wide temperature range: Stable performance for consumer and light industrial devices.
4. Factory customization: Support different pin counts, plating thickness, and housing colour customization.
5. Full SMT ready: Reel tape packaging, directly run on automatic pick & place machine.

Application Scenarios

LCD / OLED display modules

IoT devices, smart home

NB notebook

GPS handheld terminals

medical portable equipment

small-sized camera modules

automotive small screen.

Packaging Method

• Tape & Reel (Reel): Standard embossed carrier tape, fit for SMT automatic pick‑and‑place machines, directly loaded on customer production line for mass assembly.
• Tube (Tube Packing): Plastic tube packaging, mainly for prototypes, small‑batch trial runs, or manual assembly scenarios.

Factory Certification & Custom Service

Certifications: ISO9001, RoHS, REACH.

MOQ & Sample Policy: Free samples available, fast sample delivery.

Custom service: Custom PIN, gold plating thickness, housing material, and colour upon request.

Customer Selection Guide

1. Confirm pitch 0.5mm, total pin count 80, flip ZIF direction (front flip).
2. Verify stack height H1.8mm, FFC cable thickness 0.3mm compatible.
3. Check PCB footprint matches 505110-8091 if replacing Molex.
4. Confirm operating temperature and signal speed requirements for display application.
5. Reel packaging for SMT mass production; contact us for a custom pin version.
