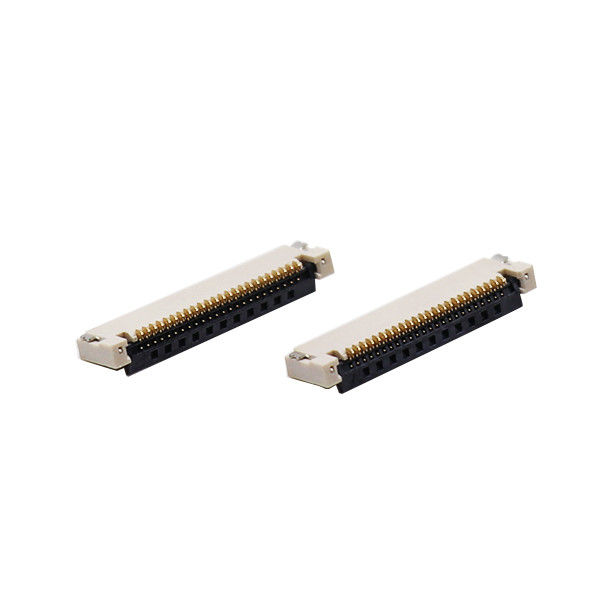

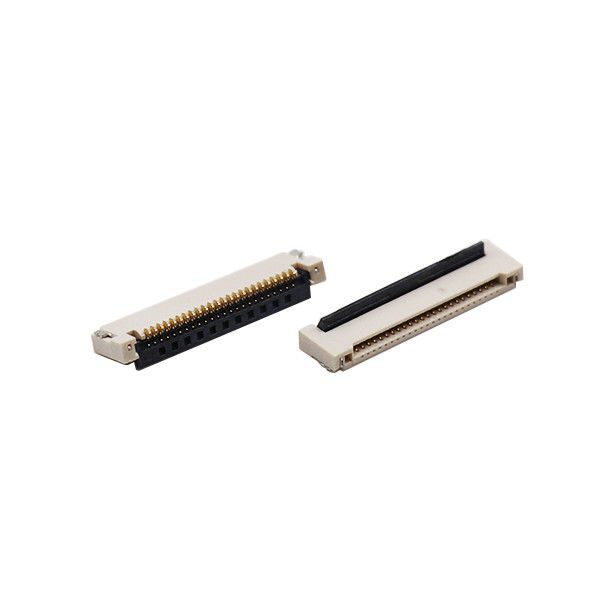

ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module

ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module
ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module
ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module

Large Image :  ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: FPC**-T1S1-0015-A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module

Description
Plating: Gold Flash , 1u" , 3u" , 6u" , 10u" Contact: Copper Alloy
Mounted Height (mm): 1.5 Connector Type: Board Mounting
FPC: 0.5mm Height: 1.5mm
High Light:

ZIF 0.5 Mm FPC Connector

,

1.5mm 0.5 Mm FPC Connector

,

30P zif fpc connector

FPC connector 0.5 mm Pitch Zif Connector 30P 1.5mm Height For LCD Module





Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

Description

This Series are FPC Connectors for consumer electronics, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.



Product Name
FPC connector
Item Number
0.5 FPC connector
Applicable FPC/FFC
0.3±0.03mm
Electronic Life
>10000CYCLES
Mechanical Life
>10000CYCLES
Contact Resistance
<60MΩ Max
Insulation Resistance
>500MΩ
Withstand Voltage
250V/MINUTE
Storage Temperature
-30°C~+70°C



ZIF 0.5 Mm FPC Connector 30P 1.5mm Height For LCD Module 0



Description

1. FFC connector is flexible flat cable connector.

2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.

3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).

4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).



Product Application

They are widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
