0.3mm Pitch FFC FPC Connector 9 17 21 25 31 35 -61 Pin Dual-sided SMT Right Angle Height 0.9mm

Product Highlights

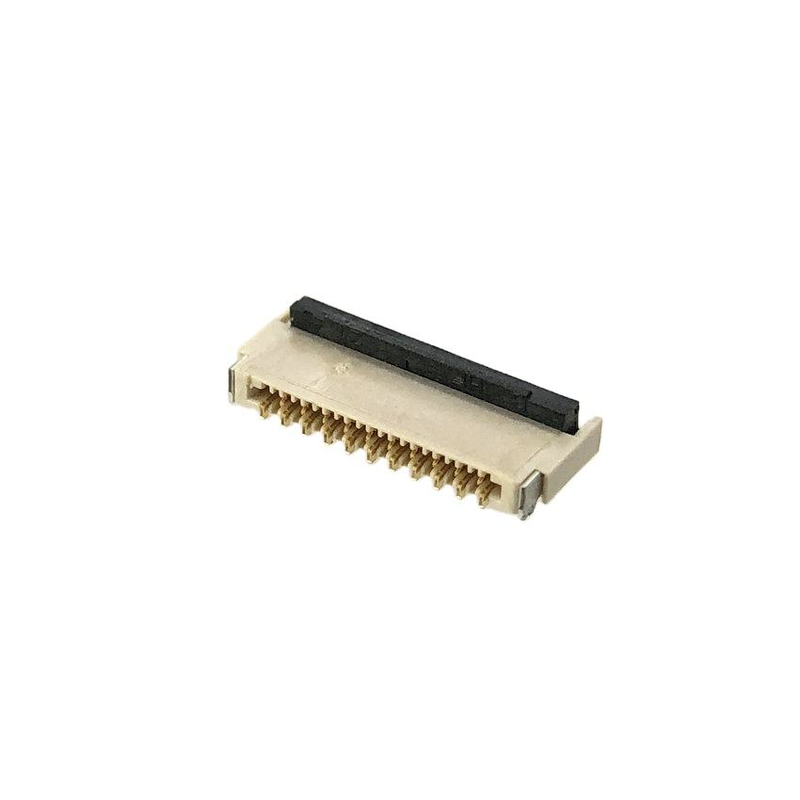

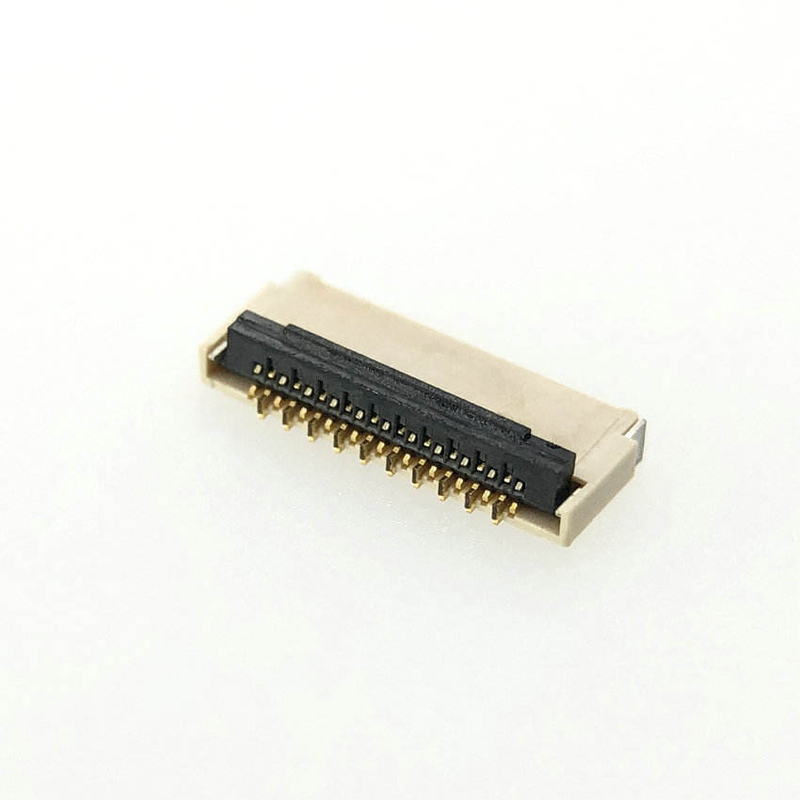

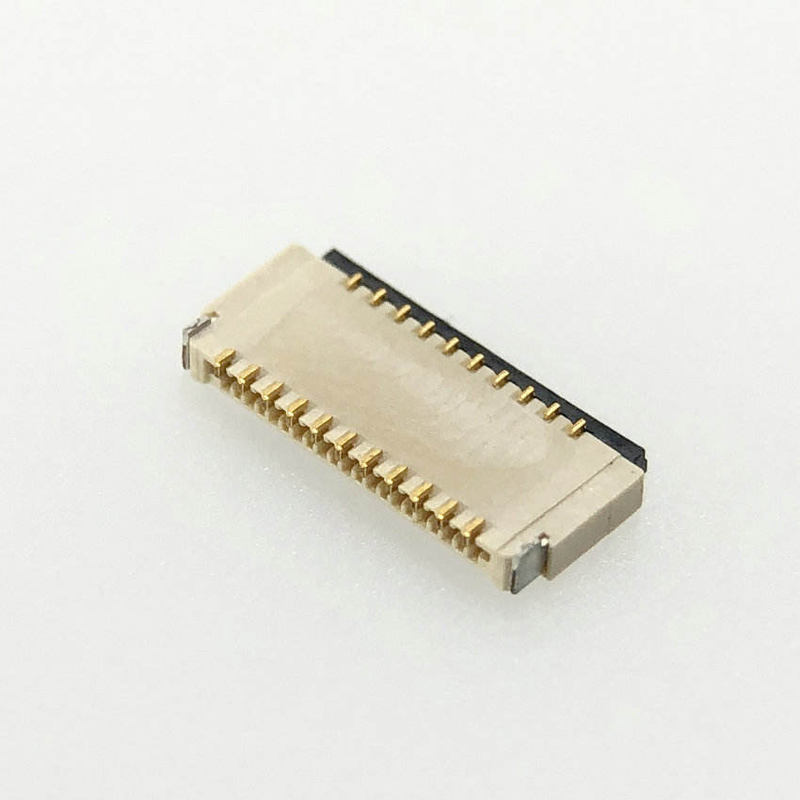

0.3 mm pitch dual‑sided contact right‑angle SMT FFC/FPC connector, 0.9 mm ultra‑low mated height, supports ZIF / Non‑ZIF locking actuator with firm tactile click‑in lock feedback. Passed strict multi‑axis vibration test, stable contact resistance under shock & vibration, avoids intermittent signal drop. Multi‑pin options:9‑17‑21‑25‑31‑35‑61P. LCP UL94‑V0 high‑temp housing, gold‑plated dual‑side contacts, RoHS compliant, for high‑density slim‑profile PCB interconnection.

.

Full Technical Specifications

Electrical Specifications

Mechanical Performance Parameters

Material & Plating / Environment & Soldering

Compatible / Alternative International Mainstream Counterparts

Direct mechanical‑&‑electrical drop‑in alternative for mainstream series:

• Hirose: FH26 / FH35 series
• JAE: FB8 / FL2 series
• Molex: 54809 / 501912 series
• Kyocera 6844 series

Product Features

• 0.3 mm fine pitch, right‑angle dual‑sided contact design, multiple pin counts:9/17/21/25/31/35/61P
• Ultra‑thin mated height 0.9 mm, ideal for slim‑form‑factor product mechanical limitations
• Optional ZIF / Non‑ZIF flip‑lock actuator; clear locking click feedback prevents accidental FPC pull‑out
• Dual‑side spring contact structure, excellent anti‑vibration & anti‑shock performance, keeps stable signal transmission
• LCP UL94‑V0 high‑temperature resistant insulator, compatible with standard lead‑free SMT reflow process
• Gold‑plated contact area, low contact resistance, anti‑oxidation for long‑term service life
• Dual‑sided SMT termination, compact footprint; no restricted routing zone under connector for flexible PCB layout
• Fits standard 0.2 mm thickness FPC/FFC flat cables
• RoHS compliant; customizable pin‑count, plating thickness, actuator version upon request

More types for reference:

Packaging Method

• Reel (Tape‑and‑reel): Standard embossed tape reel packaging, fully compliant with IEC 60286‑3, directly compatible with SMT automatic pick‑and‑place machines, for mass‑volume SMT assembly.
• Tube packaging: Available upon special request, mainly for manual prototype assembly; cannot be used for automatic SMT placement.

Factory Certification & Custom Service

• Certifications: RoHS compliant; in‑house lab for vibration, thermal shock, and mating cycle reliability tests
• Sample Policy: Support free samples / fast sample delivery
• MOQ: 1000 pcs for standard parts; custom parts subject to drawing evaluation
• Customization: Adjust pin‑count, gold‑plating thickness, actuator type, add polarization key; custom tape‑and‑reel specification
• Lead‑time: Samples 3 working days; mass‑production orders 1‑3 weeks according to order quantity
