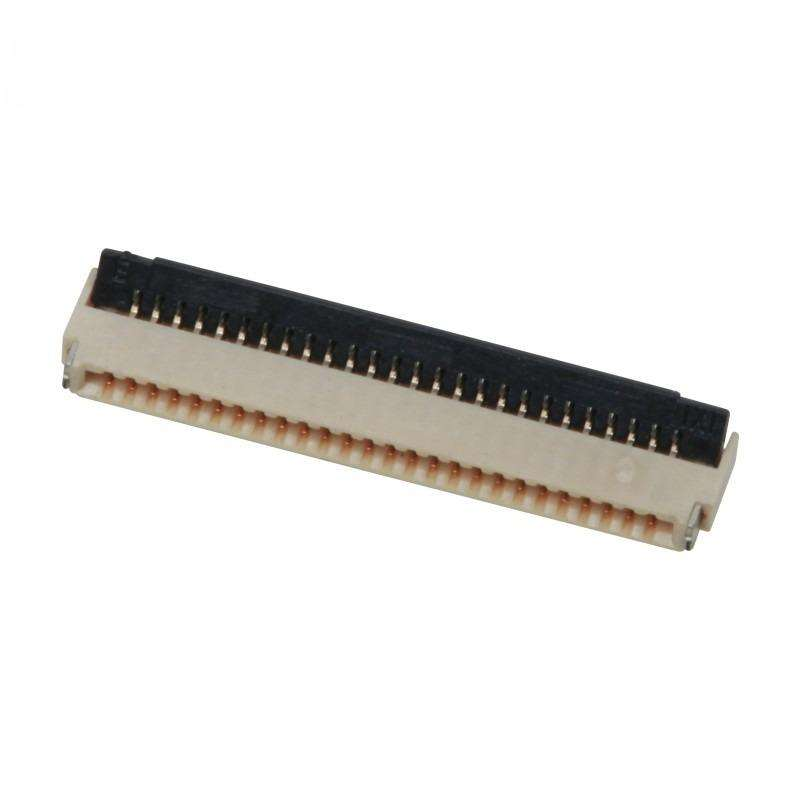

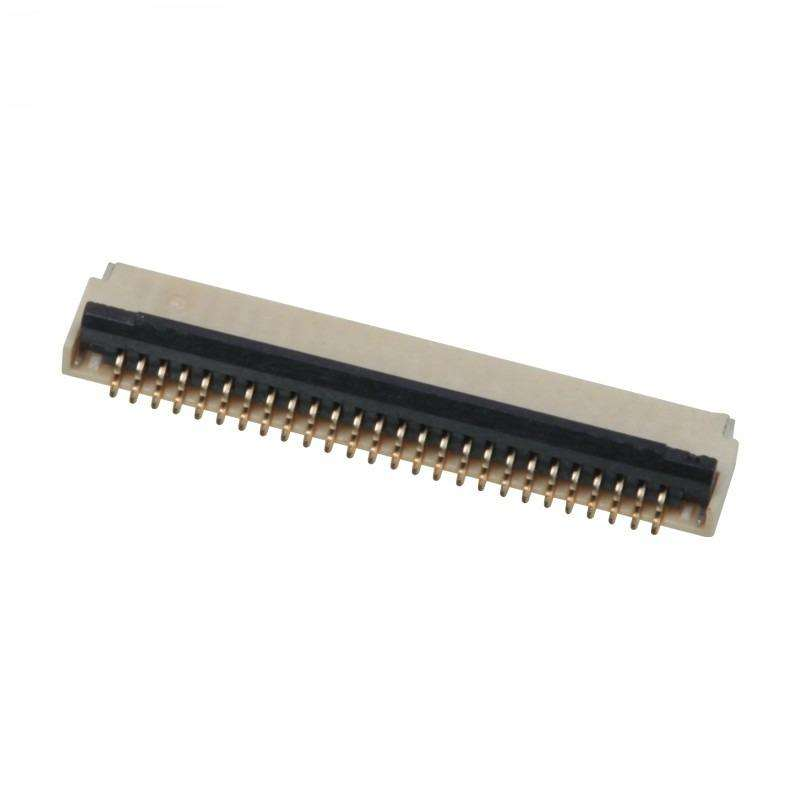

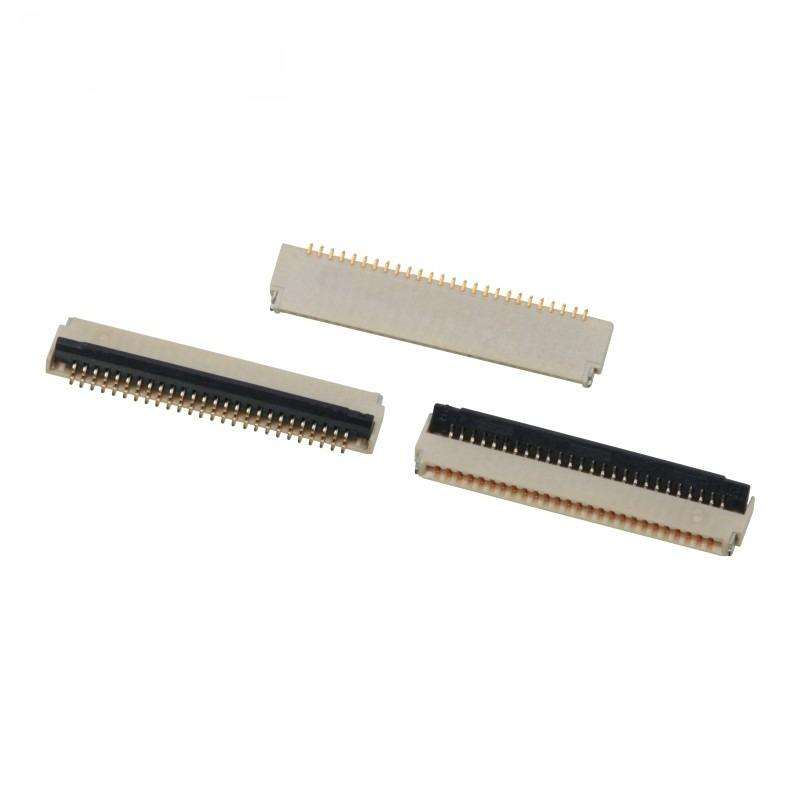

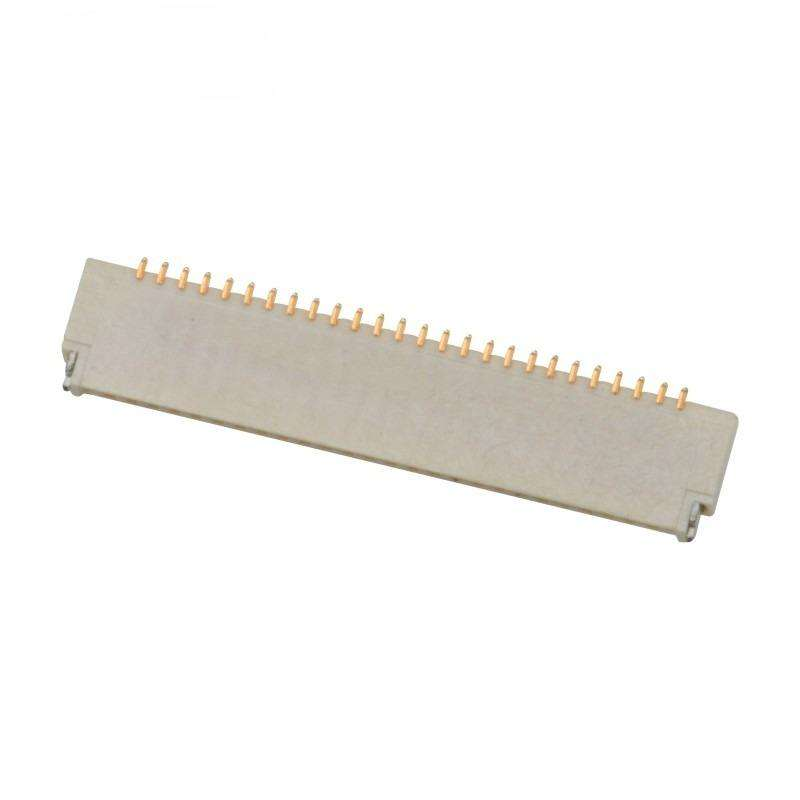

0.3mm Pitch 9- 71 Pin ZIF R/A SMT H=0.9 Backflip Dual Contact High Temperature Thermoplastic FPC Connector PCB

Product Highlights

Ultra‑low 0.9 mm mated height right‑angle SMT FPC connector, 0.3 mm pitch, 9‑71 positions, and a back‑flip ZIF locking mechanism with stable ZIF/non-ZIF switchable locking performance. Dual upper‑side contact design delivers superior anti‑vibration performance and passes the 3‑axis vibration test without intermittent signal dropout. High‑temperature thermoplastic housing supports standard SMT reflow, ideal for slim compact display & sensor modules, RoHS & halogen‑free compliant

.

Full Technical Specifications

Electrical Specifications

Mechanical Performance Parameters

Material & Plating / Environment & Soldering

Compatible / Replacement for International Major Brands

Direct drop‑in functional replacement for Hirose FH35C series, Molex 502598 series, TE 3‑2328724 series 0.3 mm pitch back‑flip ZIF dual‑contact FPC connectors.

Product Features

• 0.3 mm contact pitch, pin count configurable 9- 71 pins, right‑angle SMT mounting
• Back‑flip ZIF locking actuator, tactile click feedback for clear lock‑in confirmation; supports ZIF / Non‑ZIF operation mode
• Dual upper‑side contact structure: two‑point contact improves FPC retention, avoids signal loss under vibration
• Ultra‑low 0.9 mm mated height, helps designers realize ultra‑slim end‑product mechanical layout
• High‑temperature thermoplastic insulator, compatible with standard SMT reflow soldering process
• Accepts industry‑standard 0.2 mm thickness FPC; entry chamfer guides prevent wrong FPC insertion
• Passes strict 3‑axis vibration test; no> 1 μs electrical discontinuity under vibration conditions
• RoHS‑compliant, halogen‑free; customizable plating thickness, polarization key, partial pin assignment

Factory Certification & Custom Service

• Factory Certifications: ISO9001, ISO14001, RoHS, Halogen‑Free compliance
• MOQ: Standard reel MOQ 5000 pcs; small‑lot trial‑order negotiable
• Sample Policy: Support free samples / fast sample delivery
• Customization: Custom pin‑count, plating thickness, polarization key, special mechanical modification according to customer drawing or specification

Packaging Method

• Reel (Tape & Reel): Standard packing, suitable for SMT automatic pick‑and‑place machine, directly feeds to customer assembly line.
• Tube packaging: Available for small‑lot sample / manual prototype assembly; not fit for high‑volume automatic SMT production.

Lead Time

• Sample order: 3 working days
• Mass production order: 1‑3 weeks, subject to quantity & custom requirements
