Product Details:
|
| Pitch: | 1.0mm | Height: | 2.0mm |
|---|---|---|---|
| Terminal/Contact: | Phosphor Bronze | Type: | Front Lock |
| Matching: | With FFC Cable | Contact Location: | Bottom Contact |
| High Light: | 1.0 mm Pitch FPC Connector,ZIF 1.0 mm Pitch FPC Connector,2.0mm 4 Pin FFC Connector |
||

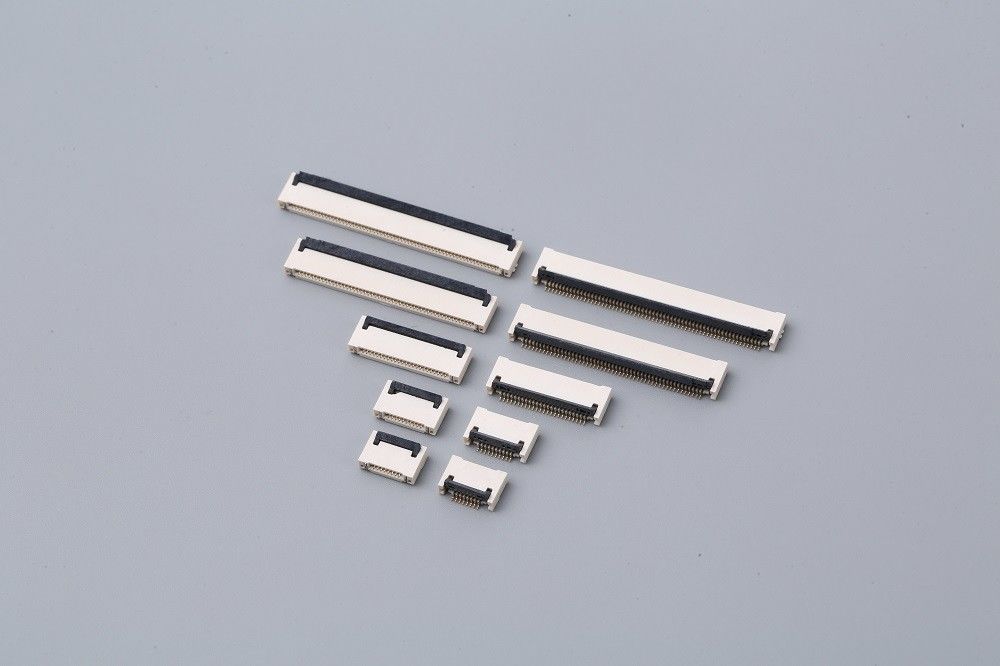

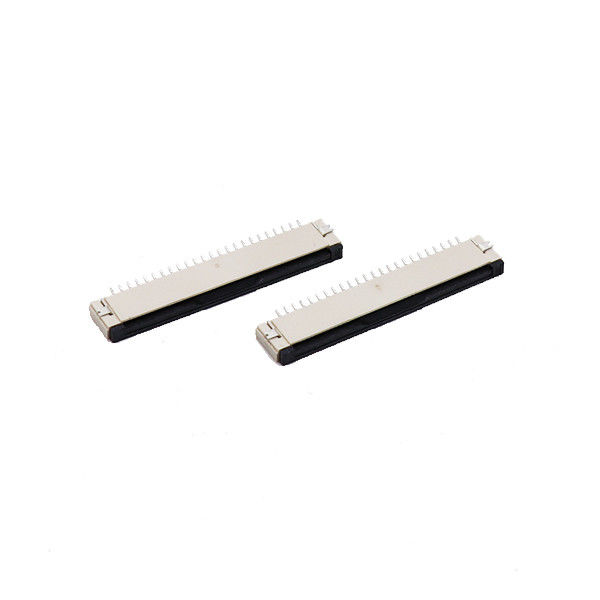

1.0 mm Pitch FPC Connector 4 Pins H 2.0mm BottomContact ZIF Type Soldering
FPC/FFC connectors provided by Xietaikang are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF and etc. are provided for achieving customers' requests.
Description
1.0mm pitch type connectors modified from 0.5mm pitch ones. (Only even-numbered pins are inserted.)Wide variations in stacking height and pin count are provided.For details, please refer to a 0.5mm-pitch type page of each Series.
| Pitch | 1.0mm |
| Height | 2.0mm |
| Mounting Type | SMT/ZIF |
| No. Of Positions | 4-40pin |
| Contact Location | Bottom contact |
| Type | Front lock |
| Current Rating | 0.5A/Pin Max |
| Voltage Rating | 50V AC/DC MAX |
| Withstanding Voltage | 500V AC,1min |
| Cover Material | LCP UL94V-0 black |
| Housing | LCP UL94V-0 Natural |
| Terminal/Contact | Phosphor bronze |
| Plating | Tin-plating |
| Operation Temperature | -40℃ to +85℃ |
| Lead Time | 7-10 working Days |
Typical Applications
Audio Players,
Printers / Copiers,
Industrial Equipment,
Medical Equipment etc.
