Name: 40 Pin FPC Connector 0.5 Mm Pitch H2.0/2.5/3.0mm SMT Flat Flex Cable Connector
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: FPC**-T1T1-00**-C
Price: 4.01 USD
Availability: InStock

Home > Products > FFC FPC Connector >

40 Pin FPC Connector 0.5 Mm Pitch H2.0/2.5/3.0mm SMT Flat Flex Cable Connector

40 Pin Fpc Connector 0.5 Mm Pitch

SMT FPC Connector 0.5 Mm Pitch

2.0mm flat flex cable connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FPC**-T1T1-00**-C

Request A Quote

40 Pin FPC Connector 0.5 Mm Pitch H2.0/2.5/3.0mm SMT Flat Flex Cable Connector

Product Details

Pitch:

0.5mm

Height:

2.0

Material:

LCP

Plating:

Tin-plated

Terminal Material:

Brass

Type:

Lock

Highlight:

40 Pin Fpc Connector 0.5 Mm Pitch

SMT FPC Connector 0.5 Mm Pitch

2.0mm flat flex cable connector

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C,T/T,Payyal

Supply Ability

4KK pcs

0.5mm Pitch Vertical Unlocked SMD Misalignment Pin FPC Flat Wire Socket FFC/FFC Connector for Flat Flex Unlocking Flex Connector

Get Best Price

Gold-plated 0.5mm Pitch FPCFFC Connector 2.7H Post-Pressure Horizontal SMD 10-68Pin 50V 0.5A

Get Best Price

0.5mm Pitch Butterfly Lock FFC/FPCH Connector Horizontal Lower Connection with 2.55H Height Flip Cover for Flat Flex Electronics

Get Best Price

40 Pin FFC Connector 0.5mm Pitch

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

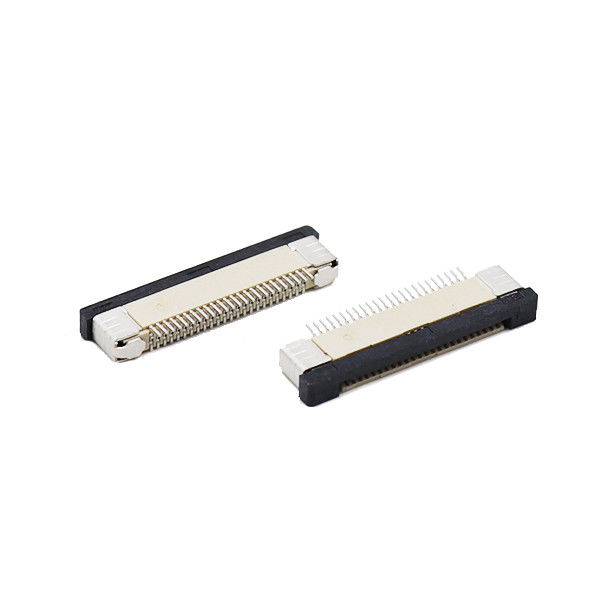

FFC/FPC connector 0.5mm Spacing FPC H=2.0 2.5 3.0 slider series SMT

Product Highlights

0.5 mm fine pitch, 40‑position, SMT surface‑mount, 3 stacking height options: 2.0 mm / 2.5 mm / 3.0 mm, one part family covers multiple enclosure height requirements
ZIF flip‑lock actuator design, low insertion force, clear click feedback to prevent incomplete FPC seating & field intermittent failure
Phosphor‑bronze terminals with selective gold plating, stable contact performance for LVDS, MIPI‑DSI, RGB parallel display signal transmission
High‑temperature LCP housing, fully compatible with lead‑free reflow soldering; embossed tape‑on‑reel packaging for high‑speed SMT mass production
Top‑contact / bottom‑contact optional; supports standard 0.3 mm‑thickness FPC / FFC flat flexible cables.
RoHS‑2.0 & REACH compliant; strict batch‑to‑batch consistency, sample support, custom modification available for OEM projects

Description

Pitch	0.5mm
Height	2.0mm	4-60pin available
	3.0mm	36-40-45-50-54-55-60pin available
Mounting Type	SMT/ZIF
Contact Location	Single-sided contact
Type	Slide lock
Current Rating	0.5A/Pin Max
Voltage Rating	50V AC/DC MAX
Withstanding Voltage	250V AC,1min
Cover Material	LCP UL94V-0 black
Housing	LCP UL94V-0 Natural
Terminal/Contact	Copper alloy
Plating	Tin-plating / Gold-plating
Operation Temperature	-40℃ to +85℃
Lead Time	7-10 working Days

40 Pin FPC Connector 0.5 Mm Pitch H2.0/2.5/3.0mm SMT Flat Flex Cable Connector

Typical Applications

Display & Touch Devices: TFT‑LCD, OLED screen modules, touch controllers, industrial human‑machine interface panels, POS terminals
Embedded & Consumer Electronics: Single‑board computers, handheld devices, portable instruments, printers, smart home control panels
Industrial Control Equipment: Industrial sensors, data acquisition modules, factory automation auxiliary units, surveillance camera internal display interfaces
Medical Electronic Devices: Patient monitoring equipment, diagnostic auxiliary modules (non‑implant), portable medical instrument internal flex interconnection
IOT & Peripheral Hardware: Gateway accessories, smart wearable accessories, test‑and‑measurement equipment internal signal connections

FAQ

Q1: Can I swap H2.0 / H2.5 / H3.0 parts directly on same PCB?

A: Yes. This product family adopts a unified SMT pad layout. You can change stacking height by switching part number only; no PCB change required. But physical housing height differs, must match mechanical housing clearance.

Q2: What happens if FPC is inserted incompletely?

A: The flip‑lock actuator cannot close fully when FPC is not seated in position. If forced closed under partial‑insertion state, intermittent signal or open‑circuit failure will occur. Always confirm an obvious “click” sound when locking the actuator.

Q3: Can I use a manual soldering iron for rework?

A: Manual iron is allowed for limited repair. Keep iron temperature ≤350 °C, soldering time per pin ≤3 seconds. Never touch LCP plastic housing with hot iron tip, housing melting will cause permanent connector damage. Max allowed rework times: 2 times per connector.

Q4: Which FPC / FFC cable should I purchase to match this connector?

A: Standard: 0.5 mm pitch, 40 circuits, 0.30 mm total thickness. Confirm whether you need stiffener reinforcement on the insertion end of the FPC.

Q5: Does this connector support high‑speed MIPI / LVDS signal?

A: It supports common display‑interface signal transmission. For high‑speed differential signals, overall system performance depends on FPC impedance control, PCB trace design, and ground layout. We suggest joint validation with your FPC supplier.

Q6: What is the shelf‑life for reel‑packed connectors?

A: Under original sealed packaging, storage ≤40 °C / ≤70 %RH, shelf‑life is 6 months. After opening the reel, finish SMT assembly within 72 hours under a normal workshop environment to avoid terminal oxidation.

Q7: Can you provide Altium / KiCad PCB footprint files and datasheet?

A: Yes. Contact our sales team to request the official datasheet, 3D STEP model, and PCB footprint library for engineering evaluation.

Q8: Can I get small‑quantity samples before mass order?

A: Sample service is available for design validation. Standard‑spec samples ship quickly; customized variants require tooling lead‑time quotation.
