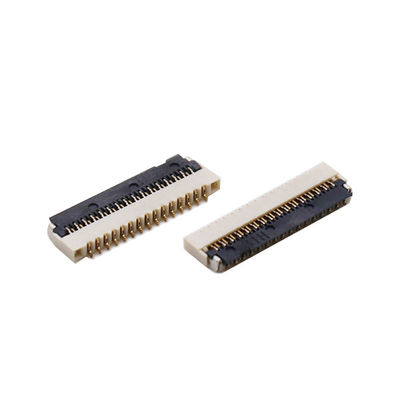

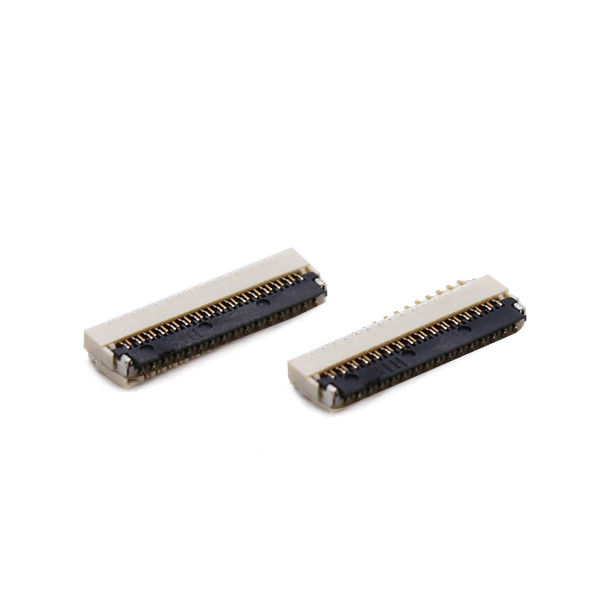

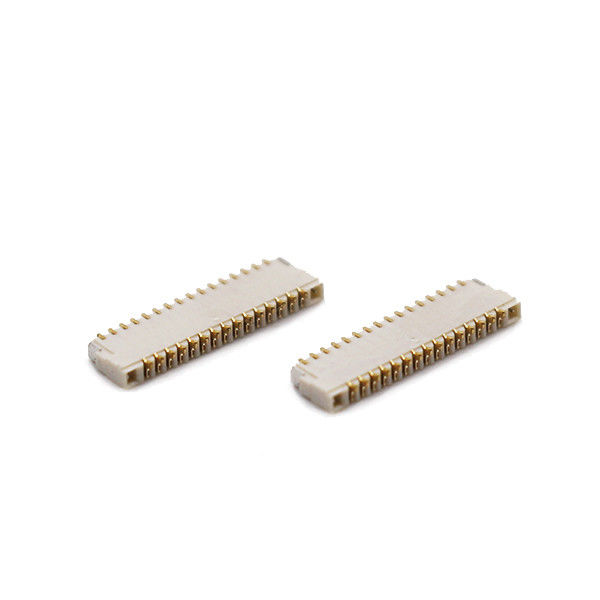

Bottom Contact Flip Type 0.3 mm Pitch FPC Connector 13-51 Pin FFC ZIF Connector

0.3mm pitch H=1.0mm FFC/FPC connector right angle SMT/ZIF

FPC/FFC connectors provided by Xietaikang are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF and etc. are provided for achieving customers' requests.

Product Description:

This series are low profile,space-saving FPC connectors which feature a pitch of 0.3mm,height of 1.0mm,and width of 3.6mm for mounting areas. These products have two options:dual-sided contact / bottom contact, right angle,SMT type connectors.

Typical Applications:

Tablet PCs / Notebook PCs, DSCs / DVCs, Printers / Copiers etc.

Processing steps:

Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.

Main export markets:

• Asia Australasia
• Eastern Europe Mid East/Africa
• North America Western Europe
• Central/South America

Packaging & Shipment:

FOB Port:Shenzhen

Lead time:7 working days

Packaging: reel in carton

Payment & Shipment:

Payment Method:advance TT,T/T,L/C,Paypal etc;

Delivery details:7-10working days after having confirmed the order

Primary Competitive Advantages

• Small orders accepted
• Factory direct export
• With 20 years of professional production experience as a manufacturer of precision connectors
• Free samples is available
• Prompt delivery
• Green product
• Strong researching and developing team
• Experienced staff
• ISO9001,ROHS

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What ‘s PCB Connector can provide?
A: FPC connector, Pin Header, Female Header, Box Header, Ejector header,Wafer housing, SIM Card connector,Memory card connector, USB.

Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.

Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.

Q: Why you can buy high quality PCB connector with attractive price from us ?
A: 1) Products development and design of metal and plastic mold , precision high-speed punch molding, plastic injection molding and automatic assembly with the support of Skilled R&D also all process are done in house that can save cost and control quality of each production process by ourself.

2) We have own electroplating factory can save our cost, other supplier has not it yet. It’s our advantage

3) Our production equipment are Auto- Assemblies Machine instead of worker. Highly efficient production capacity.

For Example 0.5mm pitch FPC connector

Auto-Assemblies Machine capacity: 100pcs/ 1minute.
