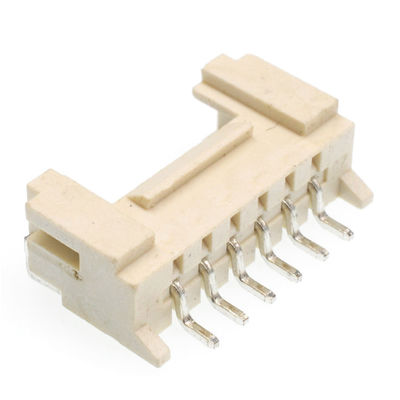

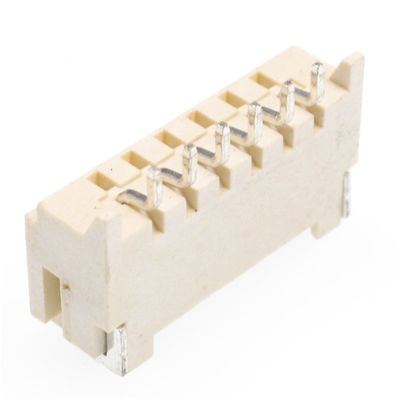

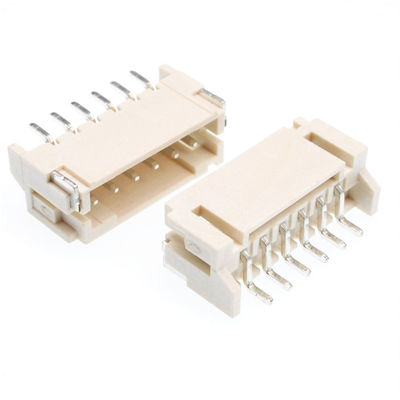

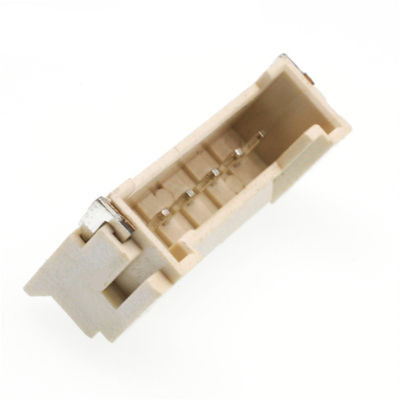

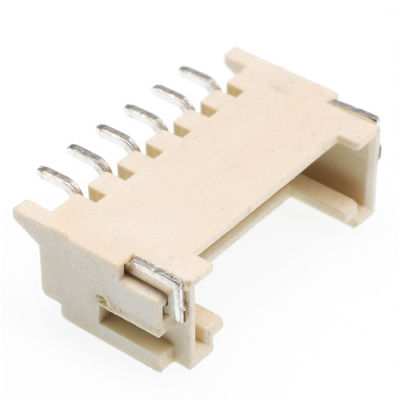

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector
OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Large Image :  OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer Box Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Description
Rated Current: 3.0A AC DC Rated Voltage: 250V AC/DC
Contact Resistance: 20m Ohms MAX Insulation Resistance: 100m Ohms Min
Operation Temperature: -25℃ To +85℃ Housing: Nylon66 UL94V-0
High Light:

OEM Wafer Box Connector

,

15p Wafer Box Connector

,

2p 2.0 mm wafer connector

Horizontal Type 2.0mm pitch Wafer Box Connector wire to board electrical connector





Ideal for compact applications, the 2.00mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets a diverse range of industry requirements.

In microminiature wire-to-board applications, sometimes operators fail to ensure proper mating orientation, which can lead to end-product failure. The polarized ribs of the wafer Wire-to-Board Connector System prevent mismating and provide mating guidance. Often medical, automotive and home appliance designers have a real-estate space issue on their PC board because of increasing components.wafer Wire-to-Board Connector System features positive lock in a compact 2.00mm pitch design.



Specifications



Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 3.0A AC DC
Rated voltage 250V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 800V/1min AC
Housing Nylon66 UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG #24-#30

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector 0



Application



Printer,Camera,Robot ,Move automatically,Computer, Electronic,Appliances,Electronic scales,LED lighting etc.



Our Service:


1. Lead customer choose a best connection sulotion way.

2. 20pcs free sample. Support more than 20pcs sample for old customer.

3. OEM/ODM service. We have a strong R&D team to support connector design.

4. Quickly response, email reply within 12hours,online inquiry is welcome.

5: Serivce attitude:our business is not just connector supply, it's about deliverying promises.



Competitive Advantage



XTK has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages
