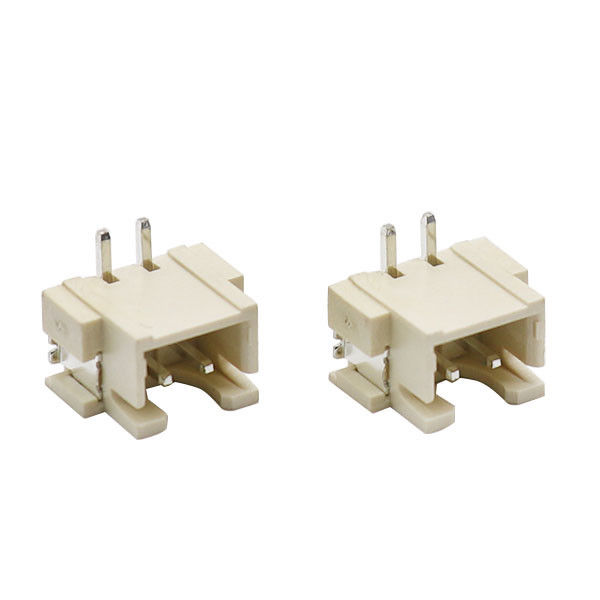

2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB

2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB

DIP SMD Wire To Board Connector

2.54mm SMD Wire To Board Connector

2.54mm pcb board wire connectors

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Contact Us
Request A Quote
2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB
2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB 2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB
Product Details
Name:
Wafer Connector
Pitch:
2.54mm
Type:
DIP Type
Insulator Color:
Beige
OEM/ODM:
Accepted
Packing:
Reel Packing
Highlight:

DIP SMD Wire To Board Connector

,

2.54mm SMD Wire To Board Connector

,

2.54mm pcb board wire connectors

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
RELATED PRODUCTS
Good price XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector online

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

Get Best Price
Good price 1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH online

1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH

Get Best Price
Good price 2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector online

2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector

Get Best Price
Good price Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector online

Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

Smd Wire To Board Connector 2.54mm Pitch Connector 90 Degree DIP Type For PCB





Product Description



Pitch 2.54mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 3.0A AC DC
Rated voltage 250V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 1000V/1min AC
Housing LCP,PA6T UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG #22-28

2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB 0



Drawing



2.54mm Pitch SMD Wire To Board Connector 90 Degree DIP Type For PCB 1



Other Pitch

Pitch 1.25mm 2.00mm 2.50mm 2.54mm 3.96mm 4.20mm
Current Rating 1 Ampere 2 Ampere 3 Ampere 3 Ampere 7 Ampere 5-9 Ampere
Contact Resistance(Max) 20m ohm 20m ohm 20m ohm 20m ohm 20m ohm 20m ohm
Withstand Voltage for one minute 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC
Insulator Resistance(Min) 100 M ohm 100 M ohm 100 M ohm 100 M ohm 100 M ohm 100 M ohm
