OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector
OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector
OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Large Image :  OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer Box Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector

Description
Rated Current: 3.0A AC DC Rated Voltage: 250V AC/DC
Contact Resistance: 20m Ohms MAX Insulation Resistance: 100m Ohms Min
Operation Temperature: -25℃ To +85℃ Housing: Nylon66 UL94V-0
High Light:

OEM Wafer Box Connector

,

15p Wafer Box Connector

,

2p 2.0 mm wafer connector

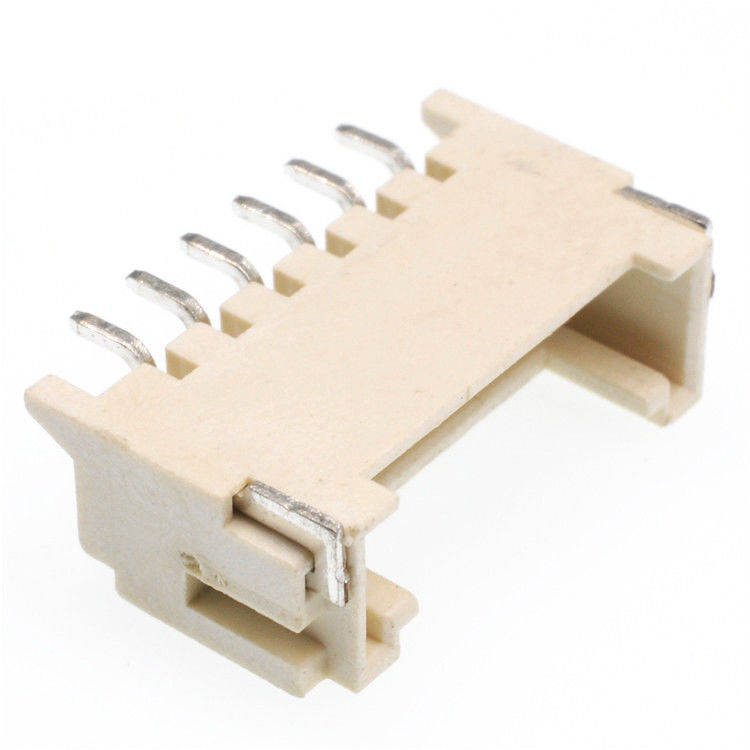

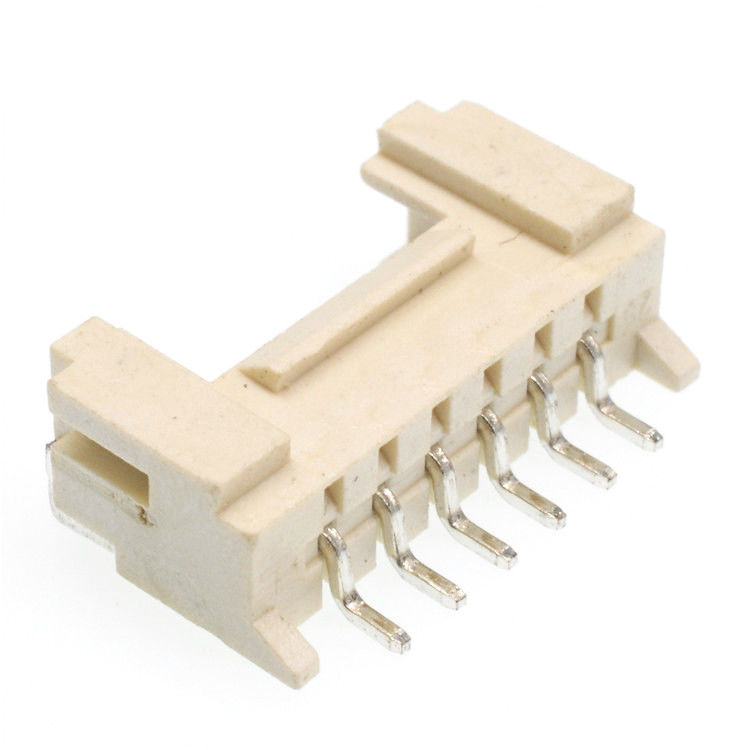

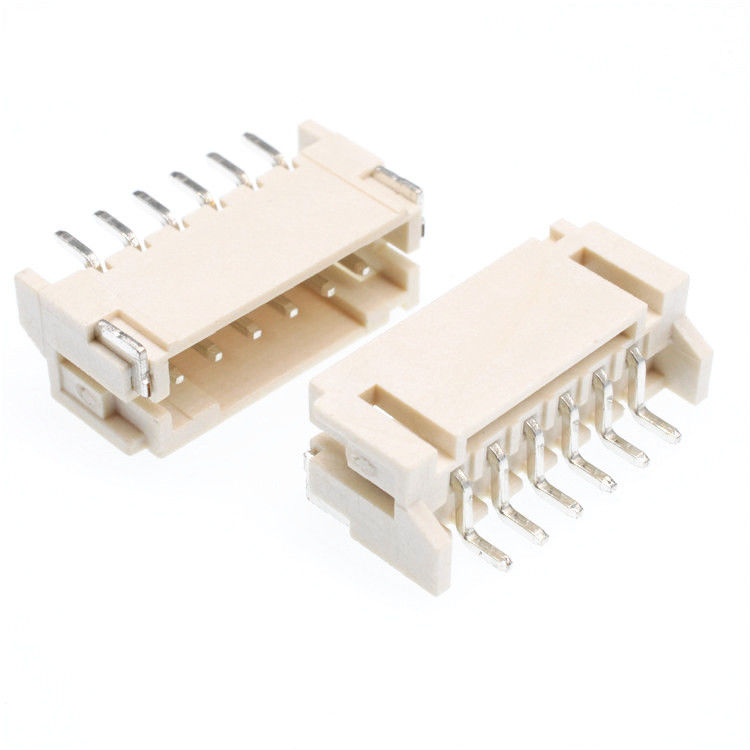

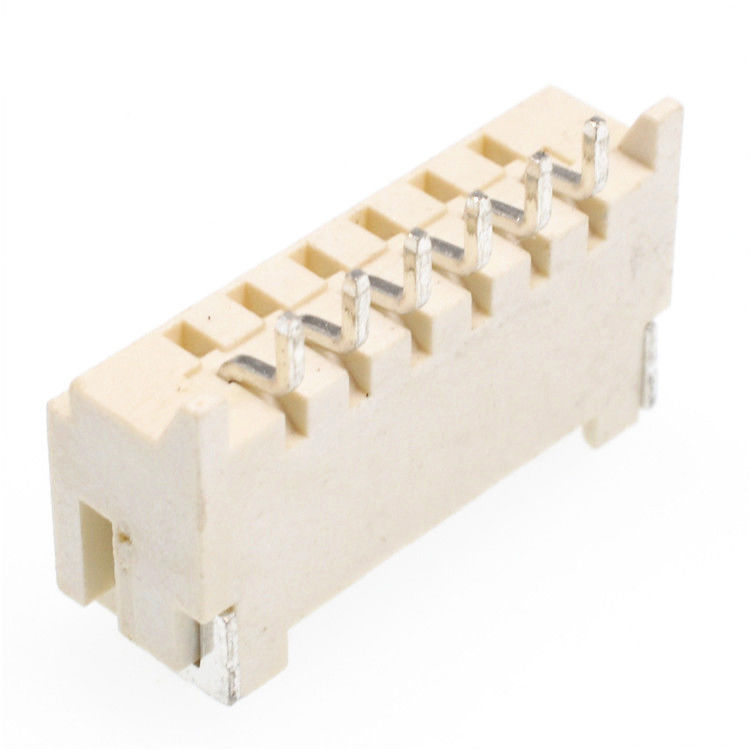

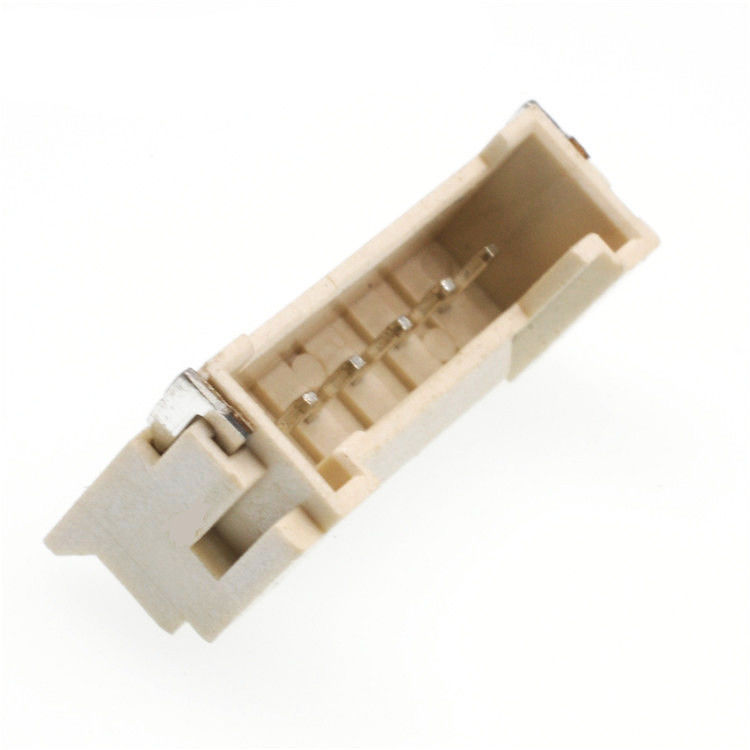

Horizontal Type 2.0mm pitch Wafer Box Connector wire to board electrical connector





Ideal for compact applications, the 2.00mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets a diverse range of industry requirements.

In microminiature wire-to-board applications, sometimes operators fail to ensure proper mating orientation, which can lead to end-product failure. The polarized ribs of the wafer Wire-to-Board Connector System prevent mismating and provide mating guidance. Often medical, automotive and home appliance designers have a real-estate space issue on their PC board because of increasing components.wafer Wire-to-Board Connector System features positive lock in a compact 2.00mm pitch design.



Specifications



Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 3.0A AC DC
Rated voltage 250V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 800V/1min AC
Housing Nylon66 UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG #24-#30

OEM 2.0mm Pitch Wafer Box Connector 2-15p Wire To Board Electrical Connector 0



Application



Printer,Camera,Robot ,Move automatically,Computer, Electronic,Appliances,Electronic scales,LED lighting etc.



Our Service:


1. Lead customer choose a best connection sulotion way.

2. 20pcs free sample. Support more than 20pcs sample for old customer.

3. OEM/ODM service. We have a strong R&D team to support connector design.

4. Quickly response, email reply within 12hours,online inquiry is welcome.

5: Serivce attitude:our business is not just connector supply, it's about deliverying promises.



Competitive Advantage



XTK has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages
