Product Details:
|
| Material: | LCP,Phosphor Bronze,Brass | Type: | SMT |
|---|---|---|---|
| PIN: | 2pin ~ 20 Pin | Contact Resistance:: | ≦20mΩ |
| Applicable:: | AWG28#-22# | Working Temperature: | -25°C-+85°C |
| High Light: | PCB Wafer Box Connector,Horizontal Wafer Box Connector,1.25mm pcb wire to board connector |
||

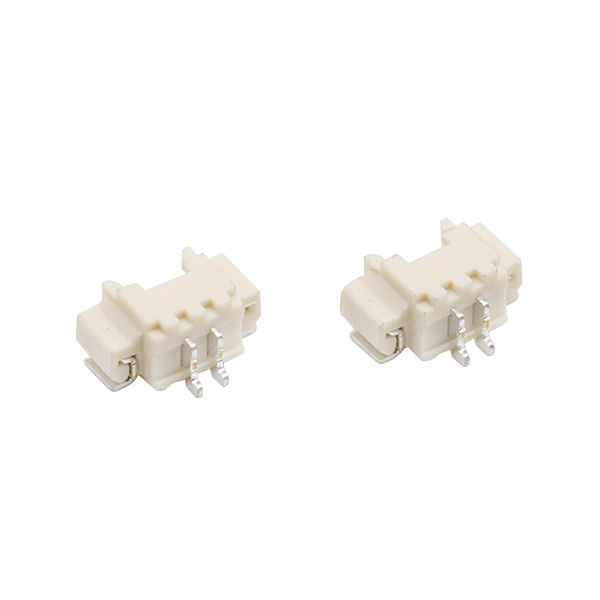

Horizontal 1.25mm Pitch PCB Wafer Box Connector Housing Wire To Board Connector SMT
Product Description
| Mounting Type | SMT |
| Pitch | 1.25mm |
| No. Of Positions | 2-15p |
| Rated current | 1.0A AC |
| Rated voltage | 125V AC/DC |
| Contact Resistance | 20m ohms MAX |
| Insulation Resistance | 100m ohms min |
| Insertion Force | 20gf/pin Min |
| Operation Temperature | -25℃ to +85℃ |
| Withstanding Voltage | 500V/1min AC |
| Housing | LCP UL94V-0 |
| Contact | Brass Tin-plated |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
Drawing
Feature
Xietaikang`s leading wire-to-board 1.25mm-pitch connector system provides design flexibility with multiple header options, making it ideal for a variety of applications across many industries.
Wafer connector is offered in wire-to-board options. The system saves about 45% of PCB space compared to typical 2.00mm wire-to-board systems. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.
A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.
