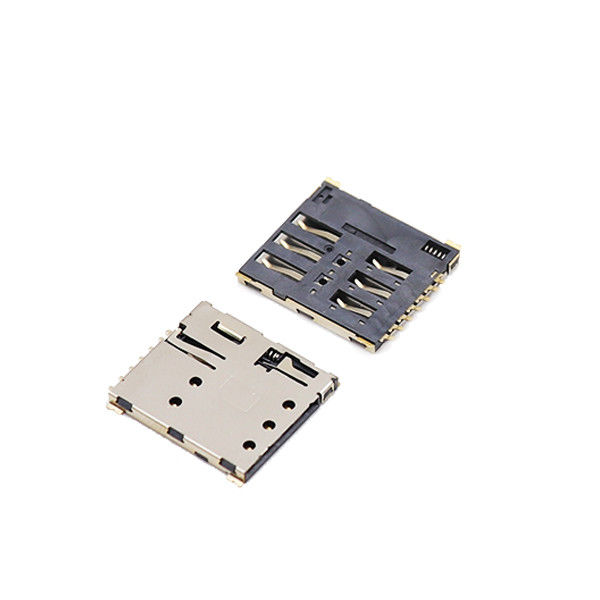

6pin H1.37 Nano sim Card Connector Push-Push Type for Mobile Phone
|
Product Name
|
Card connector
|
Place of origin
|
Guangdong,China
|
|
Contact Material
|
Tin-Bronze
|
Package
|
Tape and Reel Package
|
|
Voltage rating
|
100V AC
|
Insulation resistance
|
≥1000ΜΩ
|
|
Contact resistance
|
≤30mΩ
|
Sample
|
We can supply sample
|
Smaller, semi-finished products are required due to increased battery capacity and the increase in demand for an internal semiconductor chip. XTK offers compact memory card sockets with a height of no more than 1.28mm, saving PCB space.
Optimized for reliability and high-speed data transfer, XTK’s compact, easy-to-use SD and SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.
Specifications
| Mounting Type |
SMT |
| No. Of Positions |
6p |
| Rated current |
0.5A AC |
| Rated voltage |
125V AC/DC |
| Contact Resistance |
100m ohms MAX |
| Insulation Resistance |
1000m ohms min |
| Insertion Force |
20gf/pin Min |
| Operation Temperature |
-20℃ to +80℃ |
| Withstanding Voltage |
350V/1min AC |
| Housing |
LCP |
| Contact |
Copper alloy |
| Gender |
Female |
| Price Term |
FOB |
| Durability cycles |
5000 Cycles Min |
| Lead Time |
7-10 working Days |
| Ejector TYpe |
Push-push;push-pull,Hinge;Tray type |
Product Application
Our connectors are widely applied to cummunications industry , cusumer electronics,military industry ,automotive filed, medical equipment , data module and so on .
Processing steps
Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.
Primary Competitive Advantages
- Small orders accepted
- Factory direct export
- With 20 years of professional production experience as a manufacturer of precision connectors
- Free samples is available
- Prompt delivery
- Green product
- Strong researching and developing team
- Experienced staff
- ISO9001,ROHS
FAQ
Q1. Can I have a sample order for Connector?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-7 days, mass production time needs 1-2 weeks for order quantity more than 10K pieces.
Q3. Do you have any MOQ limit for Connector?
A: Low MOQ 10pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 12 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Connector?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print number on the Connector?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes.
Our company specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.
