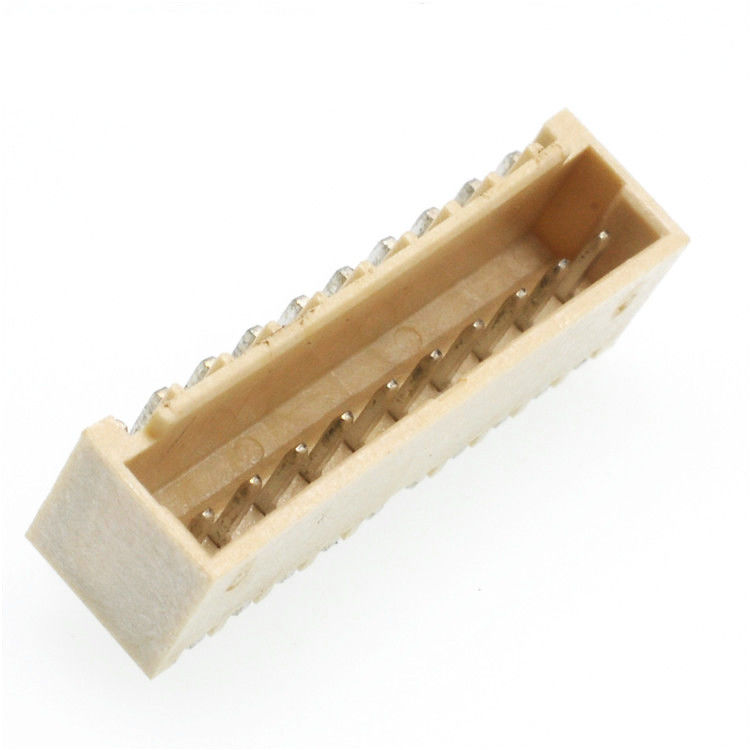

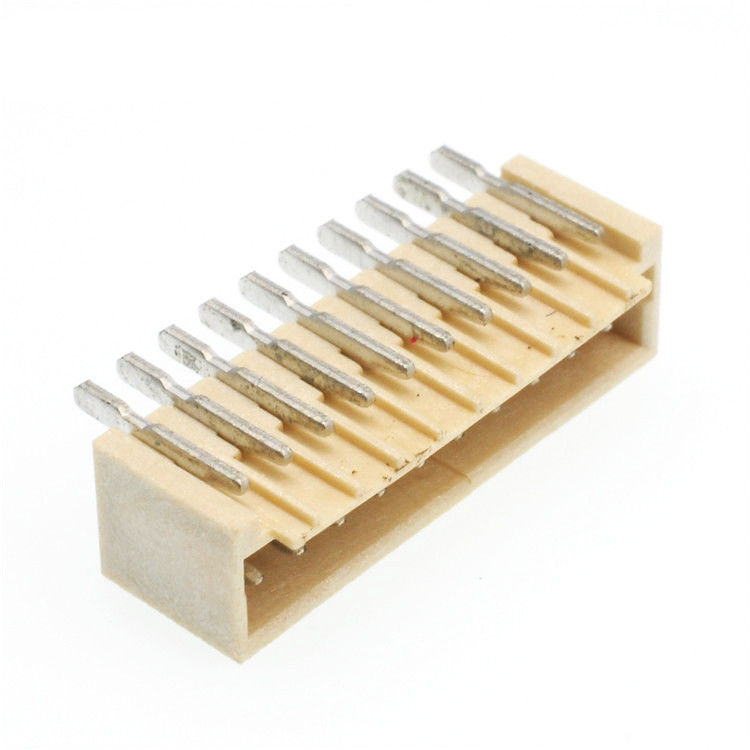

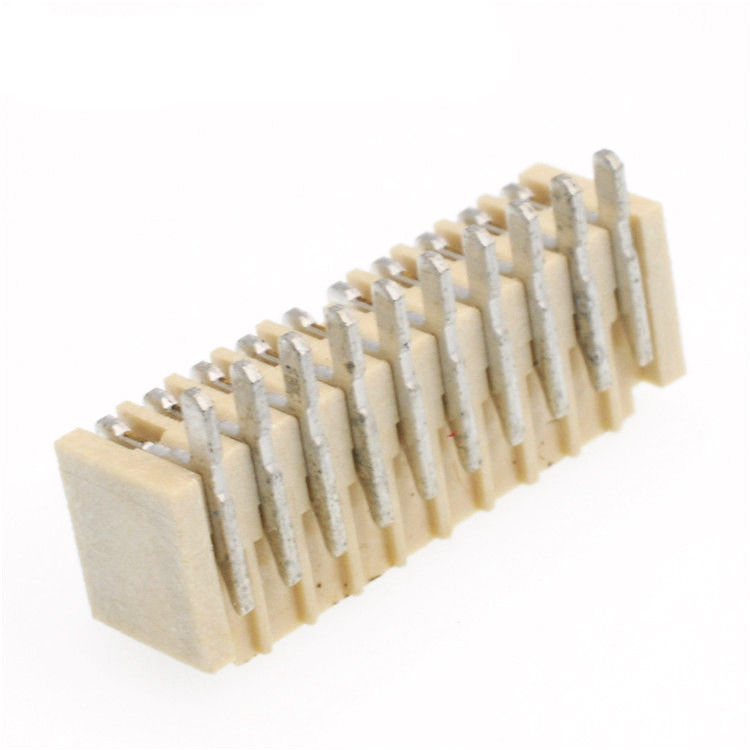

PCB Board 1.5mm Pitch 90° Dip Wafer Box Connector Phosphor Bronze
Ideal for compact applications, the Pico-SPOX 1.50mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets several industry requirements.
Wafer Connector System is very compact and secure, featuring 1.50mm-pitch and friction lock. Saves 30% space compared with 2.00mm wire-to-board connector system. Customers choose different connectors from different vendors; this makes their procurement process complex and often causes compatibility issues.wafer Connector System is available in 2- to15- circuit single-row connectors in vertical and right angle configurations.
|
Wafer Connector
|
Specification
|
|
Features
|
|
Pitch
|
0.5mm, 1mm, 1.25mm,1.5mm, 2.0mm, 2.5mm, 2.54mm, 3mm, 3.81mm,3.96mm, 4.2mm, 5.08mm (according to customer's needs)
|
|
Pins
|
2p, 3p, 4p, 5p, 6p, 7p, 8p,9p, 10p, 12p, 14p, 16p, 18p (according to customer's needs)
|
|
Type
|
Horizontal, Vertical, ZH, MX, SH, HY, PH, XH, VH, etc.
|
|
Color
|
Beige
|
|
Electrical Characteristics
|
|
Current rating
|
3.0A/contact (maximum)
|
|
Contact resistance
|
≤20Ω/contact
|
|
Insulator resistance
|
≥1,000MΩ
|
|
Withstanding voltage
|
1,000V AC/minute
|
|
Rated current
|
1.0A
|
|
Rated voltage
|
125V AC DC
|
|
Mechanical Characteristics
|
|
Insertion force
|
3-20N
|
|
Durability (min.)
|
100000 cycles
|
|
Environmental Characteristics
|
|
Operating Temperature
|
-30℃-70℃
|
|
Material
|
|
Contact material
|
Brass
|
|
Shell material
|
Plastic
|
|
Sevice
|
|
Sample
|
For free
|
|
Port
|
Shenzhen/ Hongkong
|
* 24 Hours Online Service & Quickly Quote / Delivery.
* 100% QC quality inspection before delivery, and can provide quality inspection form.
* one-stop service.
|
Our advantages
1. 15 years of experience in the connector industry
2. Production capacity for each month: 300000000 pieces
3. Quality and delivery guarantee
4. Free sample
5. Customization
6. one-stop shopping for you
FAQ
1. Are you a factory or trading company ? We are a connector factory, our factory has a standardized production base of 20,000 square meters in Shenzhen. welcome to visit our factory.
2. Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, we will send a catalogue as part of the shipment
3. Can you make customized products and customized packing?
Yes, we made a lot of customized products for our customer before(mainly wire harness).
About customized packing, There is no problem for we put your Logo or other information on the packing.
4. How about your quality control ?
All the products will be 100% checked before the shipment.
5. How long is your delivery time ?
Normally stock goods within 1-3 days, arranged producti within 7-15 days. It also depends on the order quantity.
6. How could I get a sample ?
Free sample with freight collect.
7. What is your after-sales service?
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
