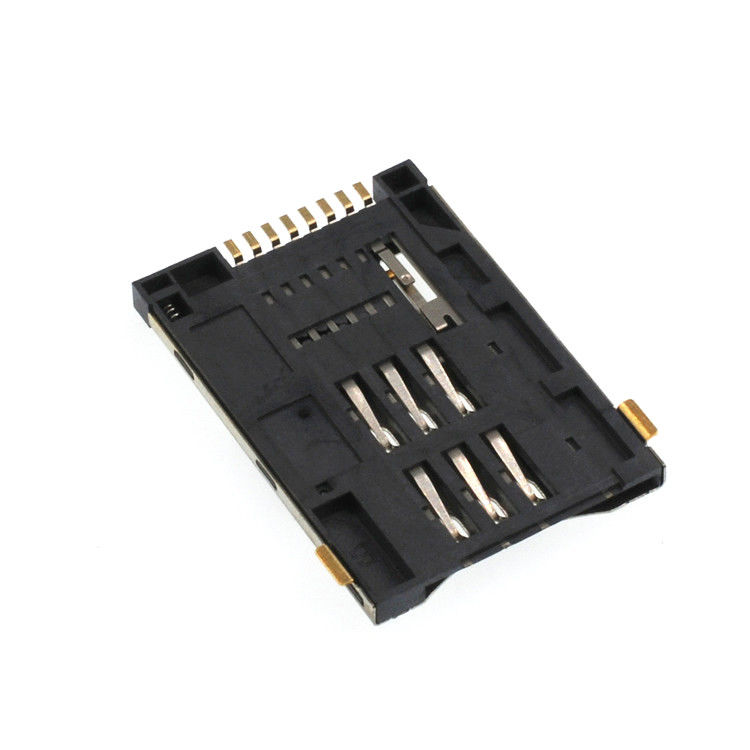

Name: 2.2mm Height Micro Sim Card Connector Sockets 8 Pin Push Extended Type
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Sim card connector
Price: 4.01 USD
Availability: InStock

Home > Products > Memory Card Connectors >

2.2mm Height Micro Sim Card Connector Sockets 8 Pin Push Extended Type

2.2mm Micro Sim Card Connector

8 Pin Micro Sim Card Connector

2.2mm SIM Card Sockets

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Sim card connector

Request A Quote

Product Details

Type:

SIM Card Connector

Pins:

Rated Current:

1.5A

Operating Temperature:

-20 ℃ TO +80 ℃

Insulation Resistance:

1000mΩ MIN

Rated Voltage:

30V

Highlight:

2.2mm Micro Sim Card Connector

8 Pin Micro Sim Card Connector

2.2mm SIM Card Sockets

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

3KK pcs

SMT Micro Sim Card Connector

Get Best Price

6 Pin SIM Card Socket Connector

Get Best Price

Video

H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

Get Best Price

Video

LCP 8 Pin Micro SIM Card Socket Connector Push Pull H1.8mm 5000 Cycles Durability

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

Sim Card Connector Push Extended Type 6+2pin 8pin Height 2.2mm Sim Card Socket Connector

Type	SIM card connector
Product specifications
Operating temperature	-20 ℃ TO +80 ℃
Life	500,000 times
Rated current	1.5A
Rated voltage	30V
Durability	3000 Cycles MIN
Resistance voltage	500V AC MIN.
Contact impedance	30mΩ MAX. Initial; 40 m Ω MAX
Insulation resistance	1000mΩ MIN
Product material
Rubber core	PBT/LCP UL94V-0
Terminal	Brass C2680/Nickel base/Gold plated 1 U
Shell	SPCC/C2680 all-area nickel plated 40 U MIN

2.2mm Height Micro Sim Card Connector Sockets 8 Pin Push Extended Type 0

Typical Application

For data transfer and charging:Mobile phone, mobile power, charger Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipment etc.

Payment term and delivery

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
