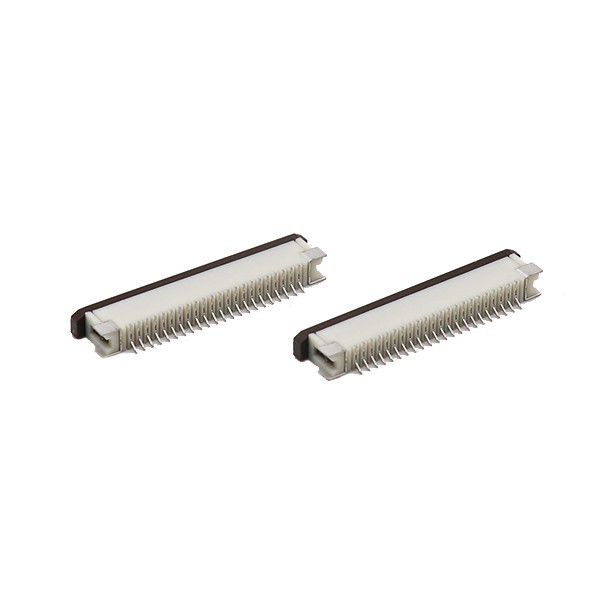

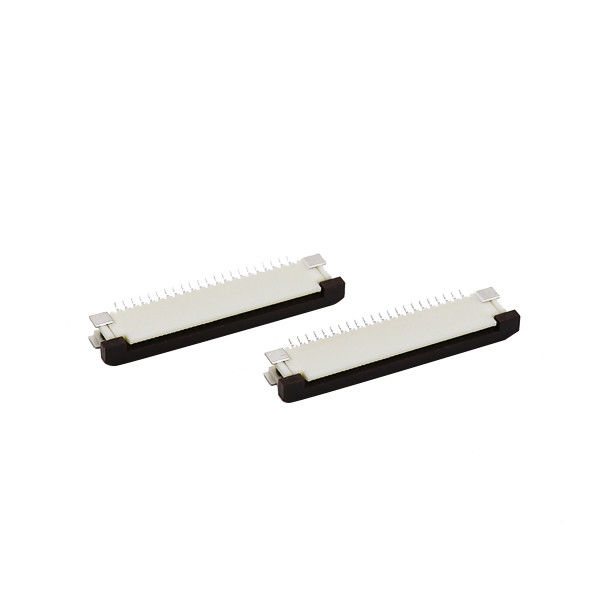

Slider Series 1.0mm FFC FPC Connector H=3.0 for FFC Flat Cable
Description
Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.
Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.
Description
1.0mm pitch type connectors modified from 0.5mm pitch ones. (Only even-numbered pins are inserted.)Wide variations in stacking height and pin count are provided.For details, please refer to a 0.5mm-pitch type page of each Series
Specifications
| Pitch |
1.0mm |
| Height |
3.0mm |
| No. Of position |
17-19-22-24-27pin |
| Mounting Type |
SMT/ZIF |
| Contact Location |
Single-sided contact |
| Type |
Slide lock |
| Current Rating |
0.5A/Pin Max |
| Voltage Rating |
50V AC/DC MAX |
| Withstanding Voltage |
250V AC,1min |
| Cover Material |
LCP UL94V-0 black |
| Housing |
LCP UL94V-0 Natural |
| Terminal/Contact |
Copper alloy |
| Plating |
Tin-plating / Gold-plating |
| Operation Temperature |
-40℃ to +85℃ |
| Lead Time |
7-10 working Days |
FOQ
1: May I get free samples?
A: Sure, 10-20 pcs of free samples are available for normall models. We need to confirm height, operation force and price before shipment.
2: When can I get the quotation ?
A: We will send you quotation within 24 hours.
3: When can I get the samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.
4: Can you accept small order, like 1000 pcs , 2000 pcs ?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.
5: What's the lead time of bulk order ?
A: Normally, lead time is 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.
6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by TT.
7. Can you open mold for teminal order or uncommon models ?
OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
8.What's your advantage ?
1.We accept Alibaba online order,protect customer's payment and promise delivery ontime,also you can dispute if un-satisfy with goods;
2.We provide 30 days return or refunds if any quality issue;
3.Our sales 24hrs online,you can contact us anytime,even though 03:00am in the morning.
