1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

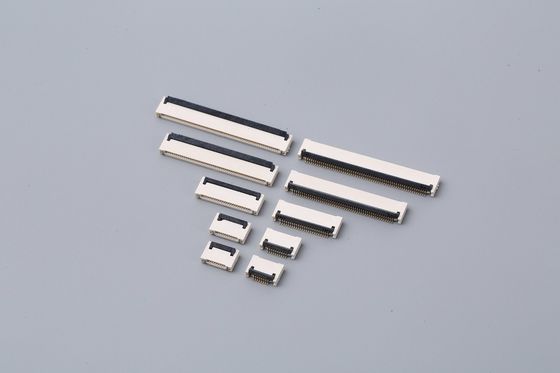

1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector

1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector
1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector 1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector

Large Image :  1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: FPC**-T2T1-0020-B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector

Description
Pitch: 1.0mm Height: 2.0mm
Terminal/Contact: Phosphor Bronze Type: Front Lock
Matching: With FFC Cable Contact Location: Bottom Contact
High Light:

1.0 mm Pitch FPC Connector

,

ZIF 1.0 mm Pitch FPC Connector

,

2.0mm 4 Pin FFC Connector

1.0 mm Pitch FPC Connector 4 Pins H 2.0mm BottomContact ZIF Type Soldering





FPC/FFC connectors provided by Xietaikang are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF and etc. are provided for achieving customers' requests.

Description

1.0mm pitch type connectors modified from 0.5mm pitch ones. (Only even-numbered pins are inserted.)Wide variations in stacking height and pin count are provided.For details, please refer to a 0.5mm-pitch type page of each Series.

Pitch 1.0mm
Height 2.0mm
Mounting Type SMT/ZIF
No. Of Positions 4-40pin
Contact Location Bottom contact
Type Front lock
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 500V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Phosphor bronze
Plating Tin-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

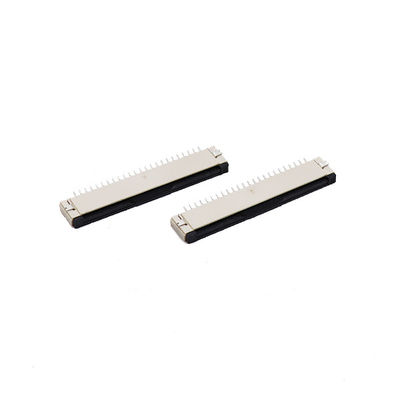

1.0 Mm Pitch FPC Connector H2.0mm Bottom Contact ZIF 4 Pin FFC Connector 0



Typical Applications

Audio Players,

Printers / Copiers,

Industrial Equipment,

Medical Equipment etc.



Primary Competitive Advantages

Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS
