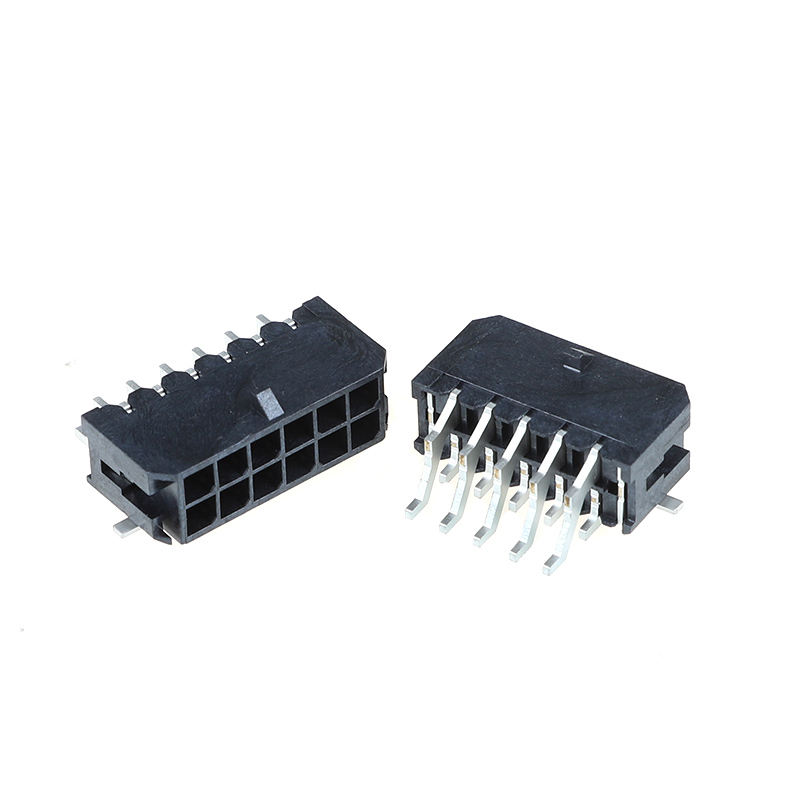

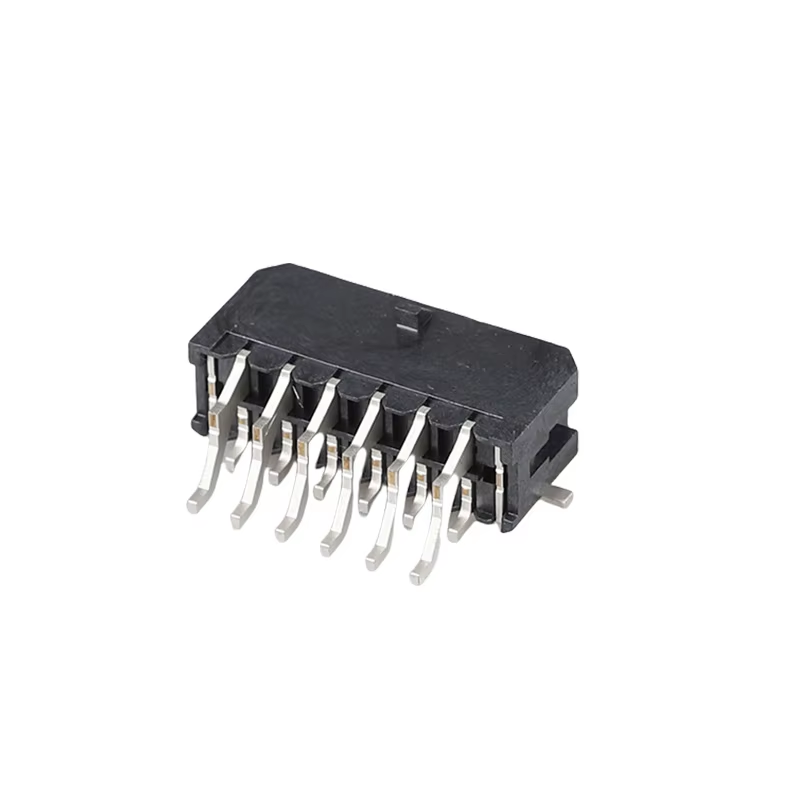

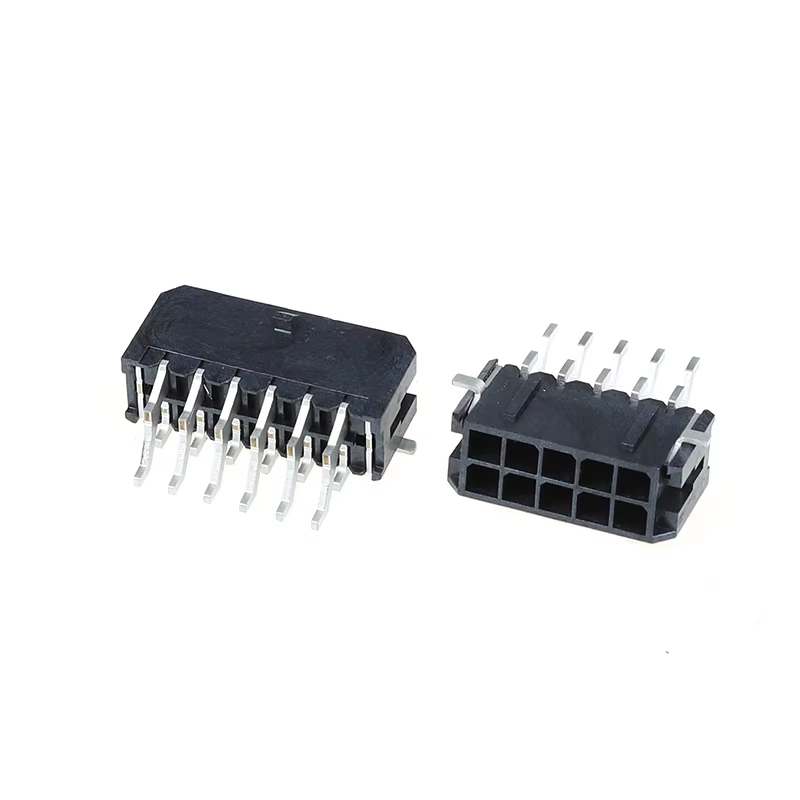

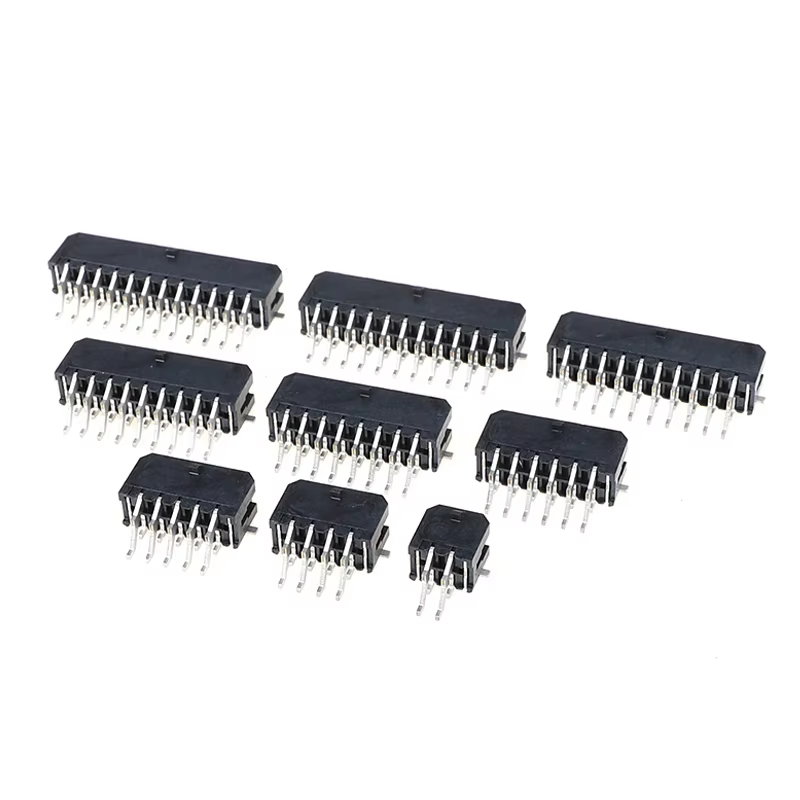

Wire-to-Board Dual Row MX3.0 Connector, 3.0mm pitch, 4P to 24P, horizontal type, copper contact, automotive & industrial grade, cross-reference Molex 43045 series.
Product Highlights
- UL94V-0 Flame Retardant & Halogen-Free Housing: Meets strict industrial and automotive EHS requirements, low smoke, non-toxic for high-reliability equipment.
- Anti-Vibration Latch Design: Reinforced locking structure prevents accidental un-mating under continuous vibration & shock, solving loose connection risk in harsh environments.
- Complete Matching System: Full set of compatible housing + crimp terminals, one-stop BOM sourcing, no separate component matching hassle.
- Dual-Beam Copper Terminals: Stable dual contact points, low contact resistance, maintains continuous circuit under thermal cycling and mechanical shaking.
- RoHS & REACH Compliant: Global export-ready for EU, North America, and other overseas markets.
Technical Specifications
| Category |
Item |
Spec |
| Electrical Performance |
Rated Current |
Up to 8.5A per pin |
| Rated Voltage |
600V AC/DC |
| Contact Resistance |
≤20 mΩ |
| Insulation Resistance |
≥1000 MΩ |
| Withstand Voltage |
1000V AC, 1min |
| Mechanical Performance |
Pitch |
3.0 mm, Double Row |
| Positions |
4P ~ 24P |
| Mating Cycles |
≥30 cycles |
| Retention Force |
High latch retention, anti-unmating under vibration |
| Material & Plating |
Housing Material |
LCP/PA66, UL94V-0, Halogen-Free |
| Terminal Material |
Copper Alloy |
| Plating Option |
Matte Tin / Selective Gold plating (on contact area) |
| Environmental |
Operating Temp |
-40℃ ~ +105℃ |
| Compliance |
RoHS, REACH, HF |
| Soldering Guide |
SMT / Through-hole available; Max soldering temp 260℃, 3s max |
Cross Reference / Alternative Replacement
Direct form-fit-function alternative to Molex 43045 Micro-Fit 3.0 series. Widely selected by engineers as a second-source replacement for JST, TE (AMP) equivalent 3.0mm pitch double-row wire-to-board connectors.
Same mating profile, pin layout, and wire crimp range; no PCB redesign required for most projects.
Product Advantages
- Vibration-proof locking mechanism: Solves the customer pain point of connector drop-off in automotive/industrial vibration scenarios.
- Halogen-free UL94V-0 plastic: Passes fire safety audit for home appliances, industrial control, and automotive electronics.
- Full range 4P~24P: Unified series, simplify BOM and inventory management.
- Competitive lead time & pricing: Short production cycle vs. overseas original brands.
- Dedicated terminal & housing matched set: Consistent crimp performance, reduce field failure rate.
- Flexible plating options: Tin for power circuits, selective gold for high-stability signal circuits.
Application
- Automotive Electronics: Vehicle control modules, on-board sensors, BMS, interior lighting
- Industrial Equipment: Servo drives, PLC, power supply, industrial controllers
- Home Appliances: Inverter, smart home control boards, power modules
- Energy & IoT: Battery packs, charging modules, automation signal transmission
Packaging Method
- Standard: Anti-static bag packing
- Optional: White / Neutral carton box packing. Custom packing label & barcodes available upon request.
Lead Time
- Samples: 3 working days
- Mass order: 1–2 weeks
Factory Certificate & Custom Service
- Certifications: UL, RoHS, REACH, ISO9001
- MOQ: Low MOQ for standard items
- Sample Policy: Support free samples / Fast sample delivery. Custom service: Custom pin count, plating thickness, cable harness assembly, special packaging & marking.
Customer Selection Guide
- Confirm pin position: 4P~24P double-row horizontal type.
- Choose plating: Tin for power circuits; Gold plating recommended for long-lifespan signal contacts.
- Wire gauge: Match AWG range for crimp terminals to guarantee pull-out strength.
- Environment check: For heavy vibration, confirm latch retention; high temperature application use LCP housing.
- Pre-validation: Order free samples for vibration, temperature cycling, and crimp testing before mass design lock.
- Mating check: Fully compatible with Molex 43045 series housing & terminals for drop-in replacement.
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
2. Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need, and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about35-45 days.
3. Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay for the shipping cost
4. Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
5. Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We are responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please make sure that we can receive the same amount as the Invoice. And you can pay in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001. IQC, OQC, IPQC, and QA account for 10% of our staff. All of our products will be tested by CCD.
8. Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to list all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
9. Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers formerly (mainly wire harnesses). About customized packing, there is no problem for we put your logo or other information on the package. Just have to point out that it incurs additional cost.
10. Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
