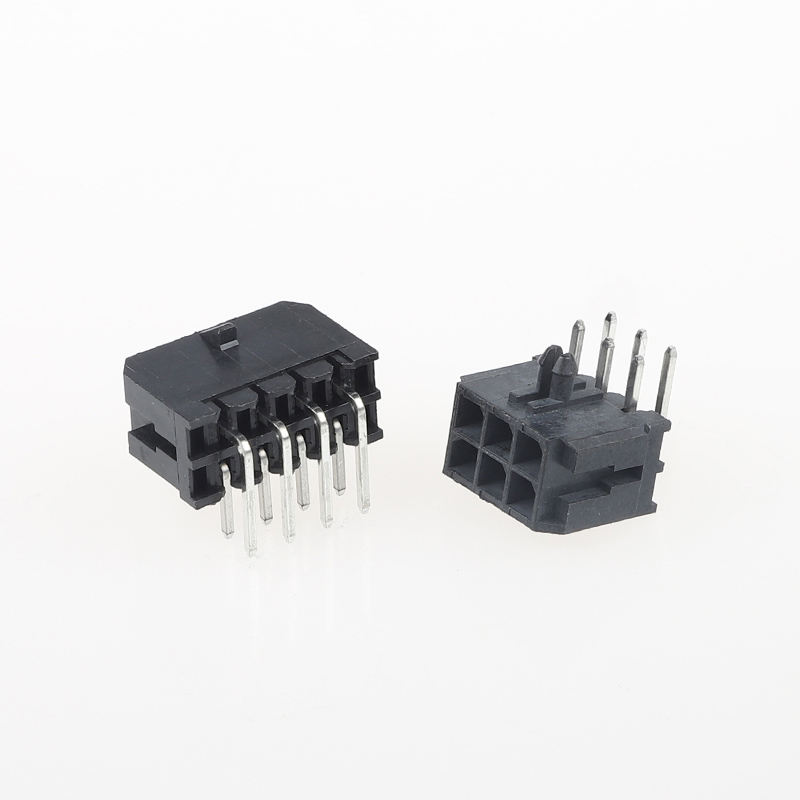

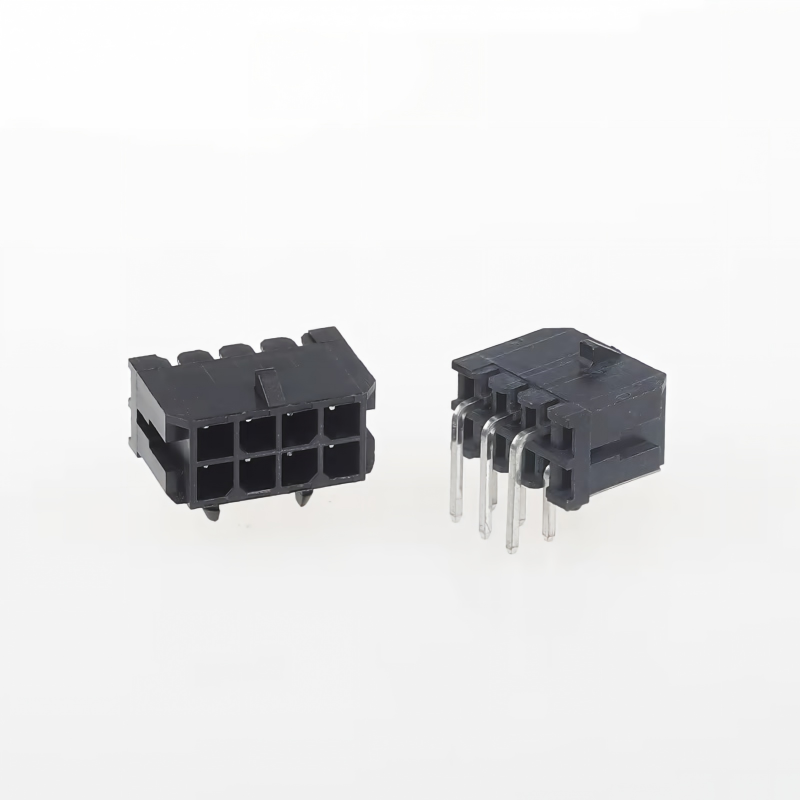

MX3.0 Pitch 3.0mm Electrical Wire Connectors R/A SMD Connector and Terminals PCB Board Connector
Product Highlights
- Housing Flame Class: UL94V-0, Halogen-Free, low toxic fume for industrial & home appliance projects
- Anti-Vibration Positive Lock: Reinforced snap lock design to prevent accidental un-mating under continuous vibration (critical for industrial & vehicle accessory environments)
- Complete System: Full set supply, including R/A SMD wafer, matching housing and crimp terminals
- **Pitch 3.0mm, Right Angle Surface Mount, single-row wire-to-board connection for power & signal transmission
- RoHS & REACH compliant
Technical Specifications
| Item |
Parameter |
| Electrical Performance |
| Rated Current |
5A per pin |
| Rated Voltage |
250V AC/DC |
| Contact Resistance |
≤20mΩ |
| Insulation Resistance |
≥1000MΩ |
| Withstanding Voltage |
1000V AC, 1min |
| Mechanical Performance |
| Mating Cycles |
≥300 times |
| Unmating Retention |
Anti-drop locking structure, withstands vibration test |
| Wire Gauge |
AWG#20 ~ AWG#28 |
| Pitch |
3.0mm |
| Mount Type |
Right Angle SMD |
| Positions |

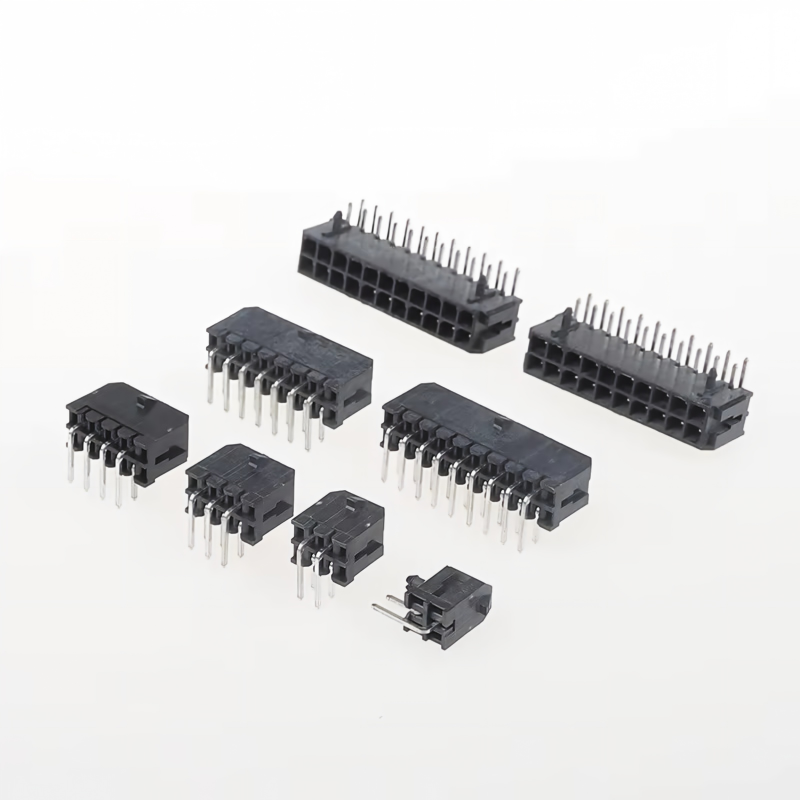

2P~24P customizable |
| Material & Plating |
| Housing |
Nylon66, UL94V-0, Halogen-Free, Black |
| Terminal Material |
Phosphor Bronze |
| Plating |
Tin-plated (Standard); Gold plating optional for high-reliability signal |
| Environment & Soldering Guide |
| Operating Temp |
-40℃ ~ +105℃ |
| SMD Reflow Temp |
Max 260℃, complies with IPC soldering standard |
| Compliance |
RoHS, REACH |
Cross Reference / Alternative Replacement
Our MX3.0 R/A SMD connector is mechanically & electrically interchangeable with the series, a direct drop-in replacement for cost-down:
- Molex: Micro-Fit 3.0 Series (43640 /43645 /43650 series)
- JST: 3.0mm pitch wire-to-board R/A SMD equivalent series
- TE (AMP): 3.0mm wire-to-board right-angle SMD connector equivalent
Note: Please verify pin count & PCB footprint before mass production.
Product Advantages
- Vibration-Resistant Lock: Positive locking avoids accidental disconnection for moving & vibrating equipment, solving the field failure risk of loose connections.
- Halogen-Free UL94V-0 Housing: Safe for industrial control, home appliance, and automotive accessory fire safety requirements.
- Full BOM Supply: One-stop purchase: SMD wafer + housing + crimp terminals, no multi-supplier sourcing hassle.
- Stable SMD Soldering: Optimized SMT foot, good solderability, low tombstone rate during PCB assembly.
- Cost-effective Alternative: Pin-to-pin compatible with international brands, reducing BOM cost without reliability compromise.
Application
✅ Industrial automation, servo control, PLC peripheral
✅ Home appliances: Air conditioner, washing machine, power supply module
✅ Automotive auxiliary electronics, vehicle lighting & sensor harness
✅ Power & signal transmission for robotics, medical equipment, battery management system
Packaging Method
- Standard: Anti-static bag packing
- Optional: White / Neutral carton box packing. Custom packing label & barcodes available upon request.
Payment Method
EXW, FOB, CIF, CPT, T/T, L/C available
Lead Time
- Samples: 3 working days
- Mass order: 1–2 weeks
Factory Certificate & Custom Service
- Certifications: UL, RoHS, REACH, ISO9001
- MOQ: Low MOQ for standard items
- Sample Policy: Free samples available / Fast sample delivery. Custom service: Custom pin count, plating thickness, cable harness assembly, special packaging & marking.
Customer Selection Guide
- Confirm pin count and current requirement: Tin plating for power circuit; Gold plating recommended for low-level signal.
- Check the maximum working temperature and vibration grade of your equipment; our lock design is preferred for high-vibration environments.
- PCB footprint: Use our provided PCB footprint to match our R/A SMD wafer.
- Wire selection: AWG#20~#28, match terminal crimp range.
- Pre-sample test is strongly recommended before mass project validation.
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
2. Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need, and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about35-45 days.
3. Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay the shipping cost
4. Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
5. Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We are responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please make sure that we can receive the same amount as the Invoice. And you can pay in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001. IQC, OQC, IPQC, and QA account for 10% of our staff. All of our products will be tested by CCD.
8. Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to list all prices, and prices change based on material costs and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
9. Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers formerly (mainly wire harnesses). About customized packing, there is no problem; we can put your logo or other information on the package. Just have to point out that it incurs additional cost.
10. Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
