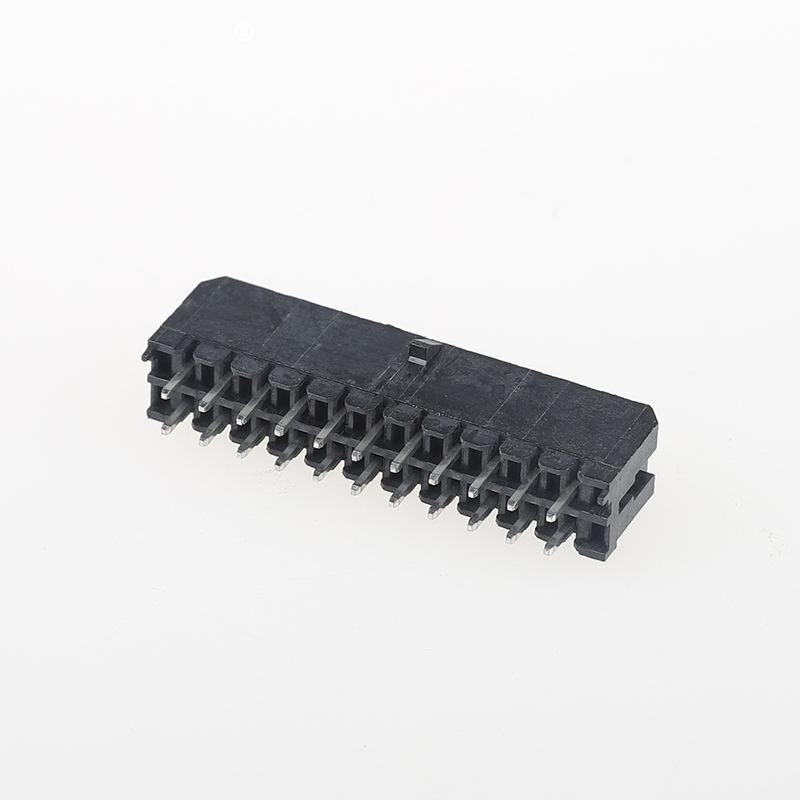

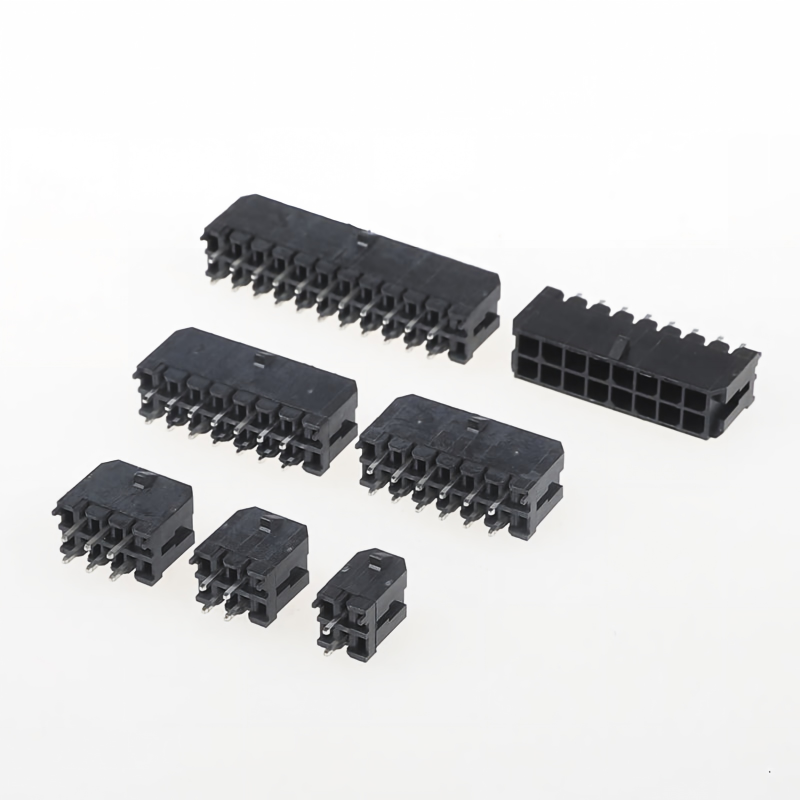

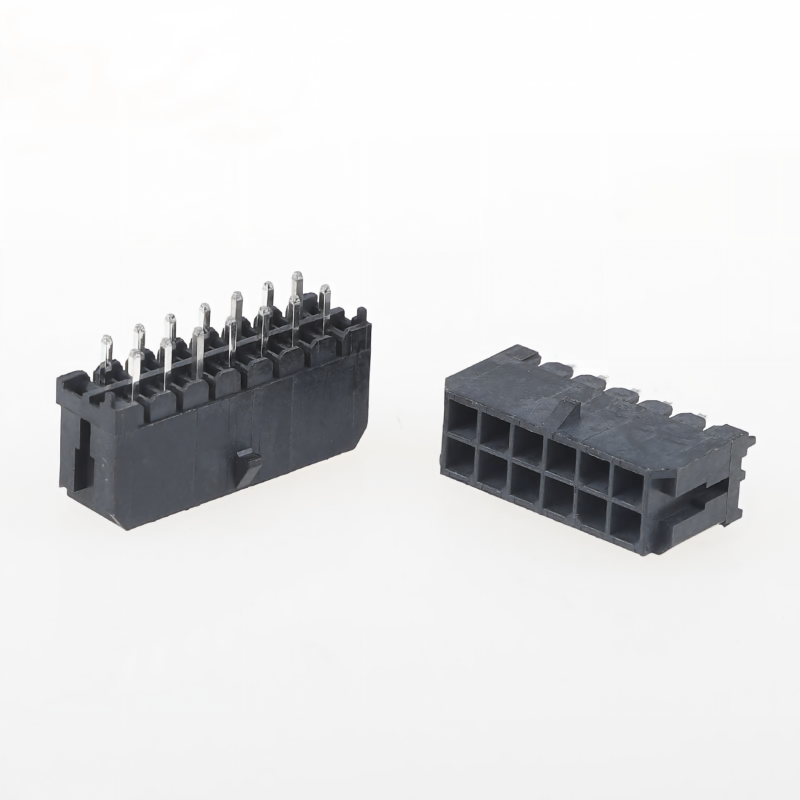

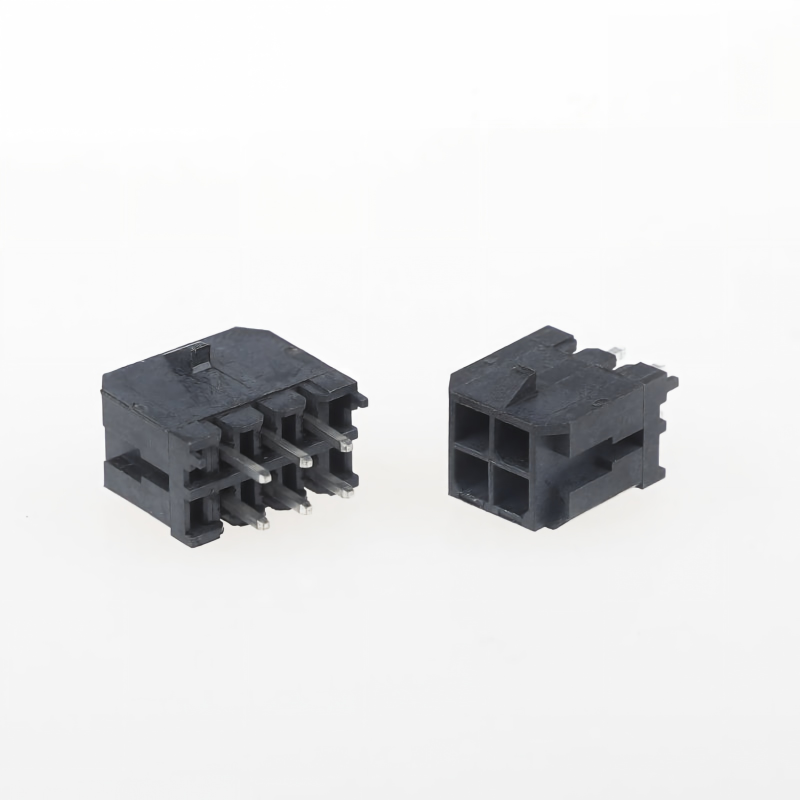

MX 3.0mm Pitch Connector Double Row Buckle with Straight Pin Wire-to-Board Connector
Product Highlights
- Positive locking buckle design: Anti-unmating, provides an audible & tactile click after full mating, avoids connector drop-off under continuous vibration for industrial & vehicle applications
- Housing material: UL94V-0 flame retardant, Halogen-Free, RoHS & REACH compliant
- Full set supply: Sold as a complete kit including housing + crimp terminals, no separate sourcing hassle
- Dual row, 3.0mm pitch, straight through-hole pin header, polarized anti-misplug structure
- Wide temperature range, stable contact resistance for power & signal transmission
Technical Specifications
| Category |
Item |
Parameter |
| Electrical Performance |
Rated Current |
10A Max per pin |
| Rated Voltage |
600V AC/DC |
| Contact Resistance |
≤10mΩ |
| Insulation Resistance |
≥5000MΩ |
| Withstanding Voltage |
1500V AC for 1min |
| Mechanical Performance |
Pitch |
3.0mm, Double Row |
| Mating Cycles |
≥500 times |
| Vibration Resistance |
10~2000Hz, no disconnection & no un-mating |
| Lock Structure |
Positive lock buckle, polarized |
| Material & Plating |
Housing |
Nylon66, UL94V-0, Halogen-Free |
| Terminal Material |
Copper alloy |
| Plating |
Tin plating (Gold plating optional) |
| Environment |
Operating Temp |
-40℃ ~ +105℃ |
| Compliance |
RoHS 2.0, REACH |
| Soldering Guide |
Soldering Method |
Through-hole wave soldering/hand soldering |
| Soldering Temp & Time |
260℃ max, ≤5s |
| Wire Range |
18~24AWG |
Cross Reference / Alternative Replacement
Direct drop-in replacement for globally famous connector series, same footprint & pin assignment for PCB redesign savings:
- Molex: Micro-Fit 3.0 Series: 43020,43025,43030,43045
- JST: 3.0mm pitch dual-row wire-to-board equivalent series
- AMP(TE): 3.0mm dual row wire-to-board power connector equivalent
Note: Verify pin count & mechanical dimension before mass production. Samples available for full validation.
Product Advantages
- Vibration-proof lock buckle: Solves engineers’ pain point: accidental un-mating under industrial/automotive vibration
- UL94V-0 & Halogen-Free plastic, meets strict fire safety & environmental requirements for home appliances and industrial control
- Supply full assembly package: housing + terminals together, simplify BOM & purchasing
- Stable copper alloy terminal with reliable tin plating, low contact resistance, long service life
- Drop-in compatible with Molex / JST / TE AMP, reduce PCB redesign cost
- Fast sample & mass production lead time, flexible customization
Application
✅ Industrial automation equipment, PLC, servo driver
✅ Home appliances: Air conditioner, water heater, washing machine, power supply
✅ Automotive interior control, battery management signal & power connection
✅ Power module, LED driver, medical equipment, smart meter
Packaging Method
- Standard: Anti-static bag packing
- Optional: White / Neutral carton box packing. Custom packing label & barcodes available upon request.
Payment Method
EXW, FOB, CIF, CPT, T/T, L/C available
Lead Time
- Samples: 3 working days
- Mass order: 1–2 weeks
Factory Certificate & Custom Service
- Certifications: UL, RoHS, REACH, ISO9001
- MOQ: Low MOQ for standard items
- Sample Policy: Free samples available / Fast sample delivery. Custom service: Custom pin count, plating thickness, cable harness assembly, special packaging & marking.
Customer Selection Guide
- Confirm required pin count: 22P up to 212P standard; custom pin count available
- Confirm wire gauge and maximum working current
- Vibration-heavy environment: Must use buckle-locked version to prevent un-mating
- Fire safety required project: Confirm UL94V0 + Halogen-Free version
- Cross-brand replacement: Test samples first for mating check before mass production
- Soldering: Follow through-hole soldering temperature limit to avoid plastic housing melting
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
2. Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need, and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about35-45 days.
3. Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay the shipping cost
4. Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
5. Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We are responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please make sure that we can receive the same amount as the Invoice. And you can pay in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly follow ISO9001. IQC, OQC, IPQC, and QA account for 10% of our staff. All of our products will be tested by CCD.
8. Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to list all prices, and prices change based on material costs and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
9. Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers formerly (mainly wire harnesses). About customized packing, there is no problem; we can put your logo or other information on the package. Just have to point out that it incurs additional cost.
10. Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
