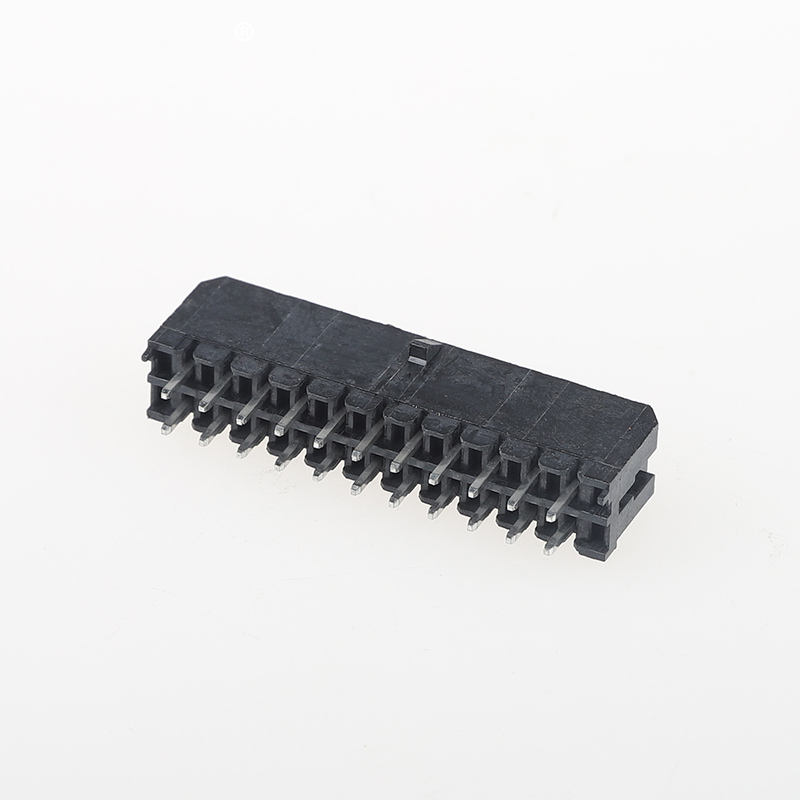

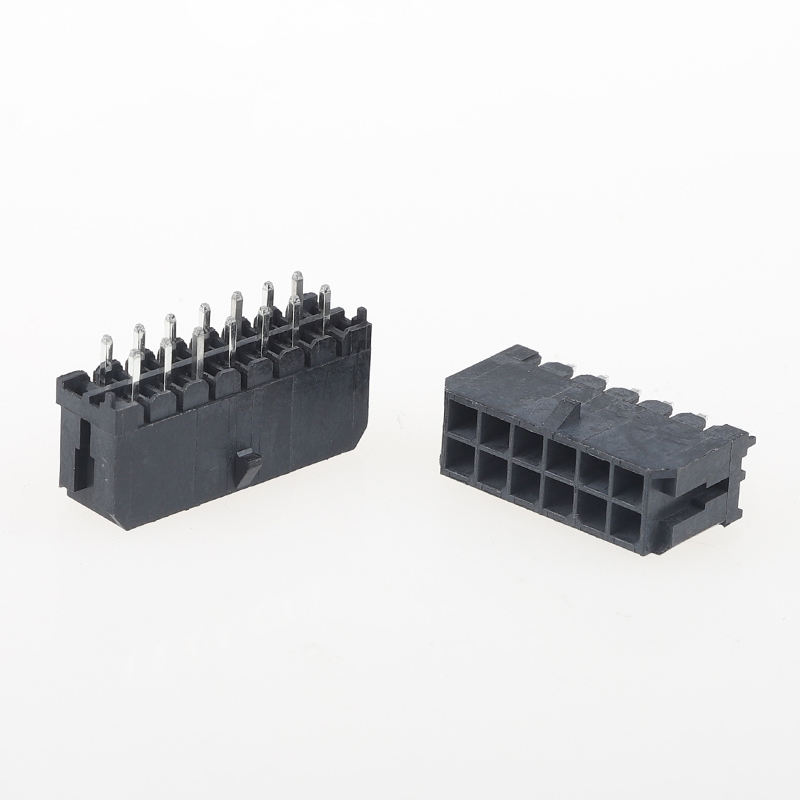

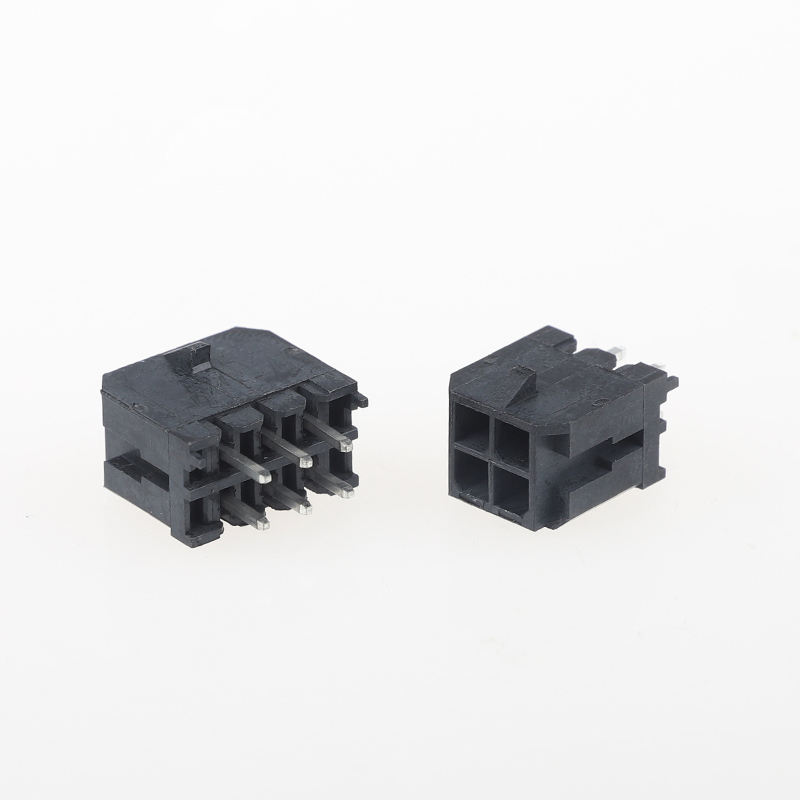

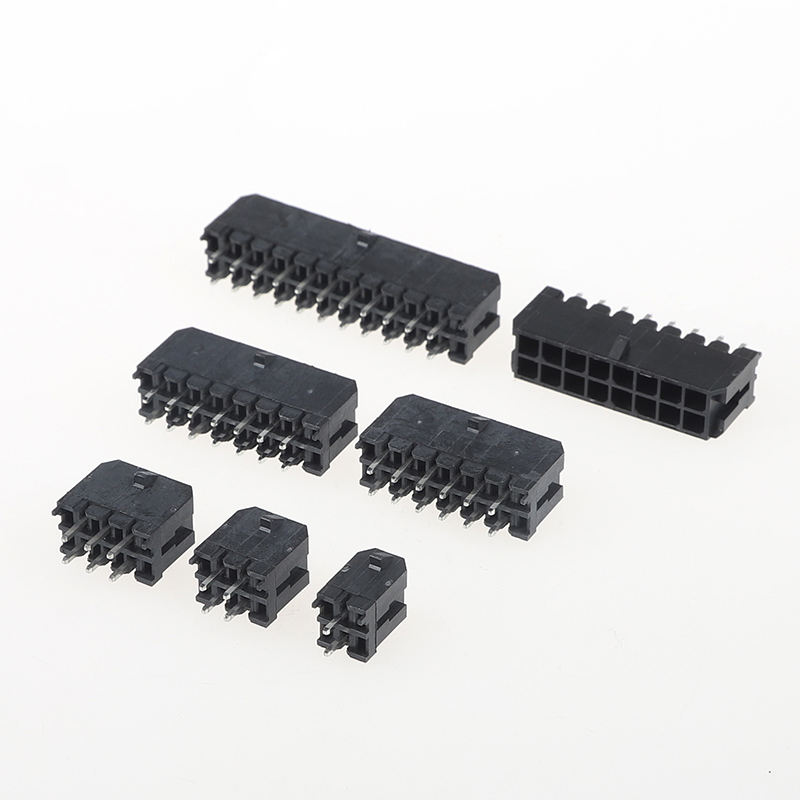

MX3.0 Metal Double Row Buckle Straight Pin Header 3.0mm Pitch 180 Degree 43045 Small 5557 Connector Power PCB Screw Connectors
Product Highlights
- UL94V-0 flame-retardant & Halogen-Free housing; meets industrial & home appliance safety requirements
- Reinforced metal locking buckle design. Anti-unmating; prevents accidental disconnection under heavy vibration for industrial & automotive harsh environments
- Complete system solution: matched housing + crimp terminals available, one-stop sourcing
- Dual row 3.0mm pitch, 180° straight through-hole pin header, power & signal mixed use
- RoHS & REACH compliant
Technical Specifications
| Category |
Item |
Parameter |
| Electrical Performance |
Rated Voltage |
600V AC/DC |
| Rated Current |
Up to 8.5A per pin |
| Contact Resistance |
≤20mΩ |
| Insulation Resistance |
≥1000MΩ |
| Withstand Voltage |
1500V AC, 1min |
| Mechanical Performance |
Mating/Unmating Cycles |
Min 30 cycles |
| Terminal Retention Force |
≥24.5N |
| Anti-vibration |
Pass industrial random vibration test, no intermittent opening |
| Material & Plating |
Housing |
PA66, UL94V-0, Halogen-Free, Black |
| Pin / Terminal Material |
Copper Alloy |
| Plating |
Bright tin plating (Gold plating optional for high-reliability version) |
| Environmental Spec |
Operating Temp |
-40℃ ~ +125℃ |
|
Storage Temp |
-45℃ ~ +130℃ |
| Soldering Guide |
Wave Soldering |
Peak 260℃, max 5s |
| Hand Soldering |
350℃, ≤5s per pin |
| Note |
Avoid repeated high-temperature soldering to prevent plastic deformation |
Cross Reference / Alternative Replacement
Direct drop-in replacement for Molex Micro-Fit 3.0 43045 series. Compatible mating housing & terminals match 43020 / 43030 series. Also works as a cost-effective substitute for the 5557 series in many power connection projects.
Engineers can reuse existing PCB footprint & harness tooling, no major redesign required.
Product Advantages
- Anti-vibration metal latch: Solves the customer pain point of connectors popping loose under vibration in automation/vehicle devices
- Halogen-free UL94V-0 plastic, safer for home appliance & industrial control
- Full set in-house production: pin header, housing, crimp terminals, stable supply chain
- Short lead time for samples & mass production, flexible pin count customization
- Strict 100% inspection before shipment, low contact failure rate
Application
✅ Industrial automation, servo & power control modules
✅ Home appliances, power supply & charging units
✅ Automotive interior power & signal connections
✅ Medical equipment, telecom & battery management systems
✅ PCB wire-to-board power connection
Packaging Method
- Standard: Anti-static bag packing
- Optional: White / Neutral carton box packing. Custom packing label & barcodes available upon request.
Payment Method
EXW, FOB, CIF, CPT, T/T, L/C available
Lead Time
- Samples: 3 working days
- Mass order: 1–2 weeks
Factory Certificate & Custom Service
- Certifications: UL, RoHS, REACH, ISO9001
- MOQ: Low MOQ for standard items
- Sample Policy: Support free samples / Fast sample delivery. Custom service: Custom pin count, plating thickness, cable harness assembly, special packaging & marking.
Customer Selection Guide
- Confirm pin count: 22P ~ 216P standard in stock; contact us for longer circuits
- Current derating: Reduce rated current when multiple pins are loaded together under high ambient temperature
- Vibration environment: Must use metal latch version to prevent unexpected unmating
- Material selection: Default UL94V0 halogen-free; specify gold plating if long mating cycle required
- PCB design: Follow standard 43045 footprint for direct replacement; check soldering temperature profile before mass production
