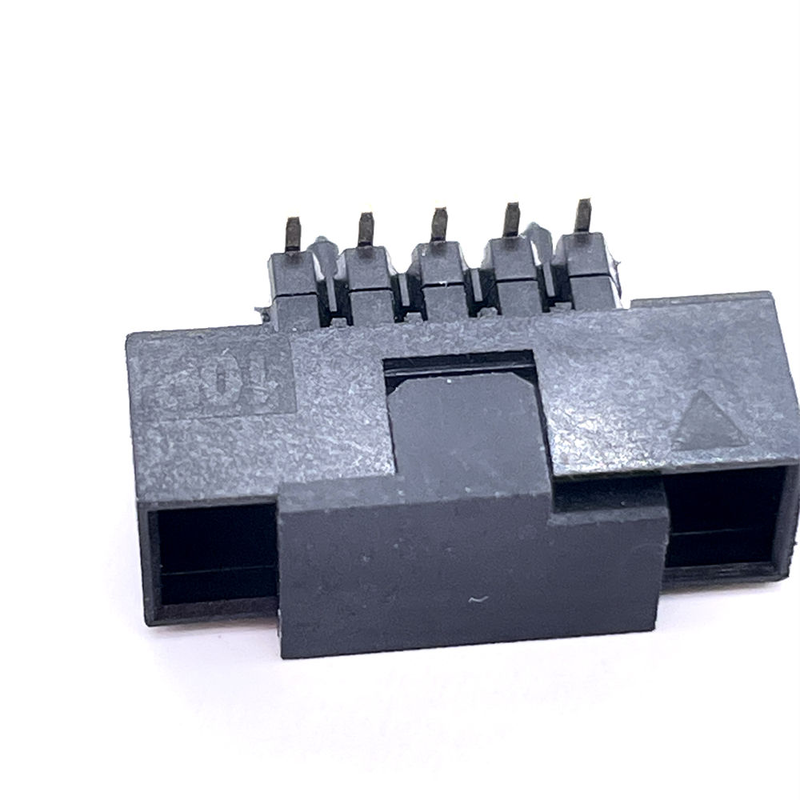

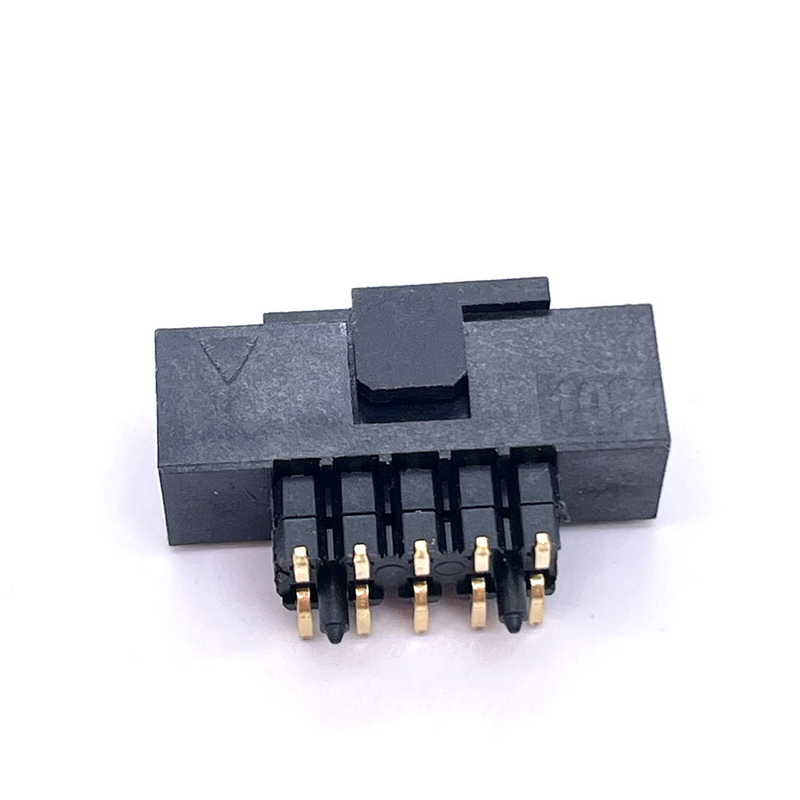

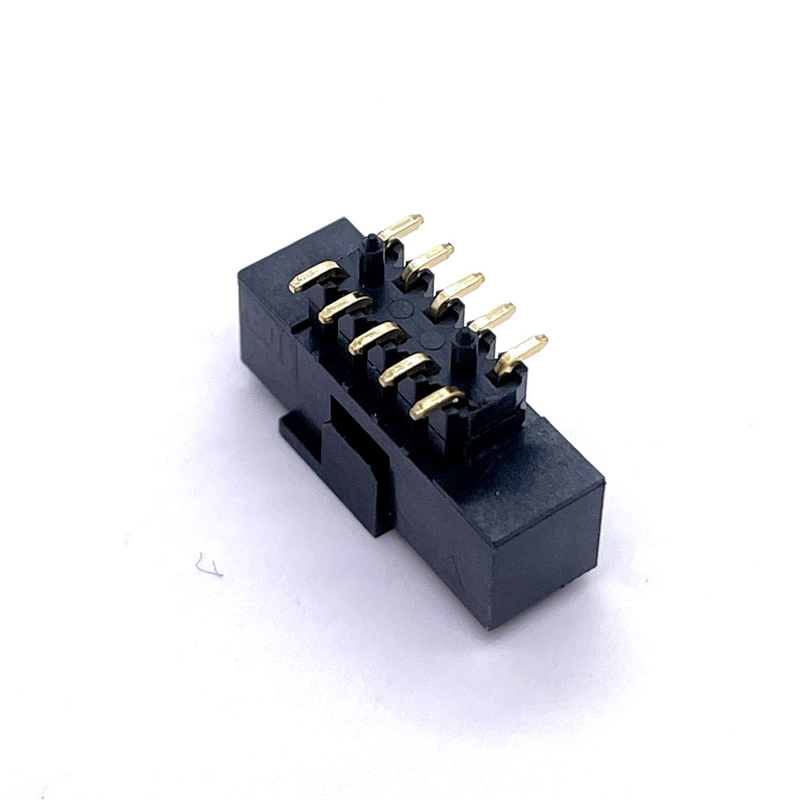

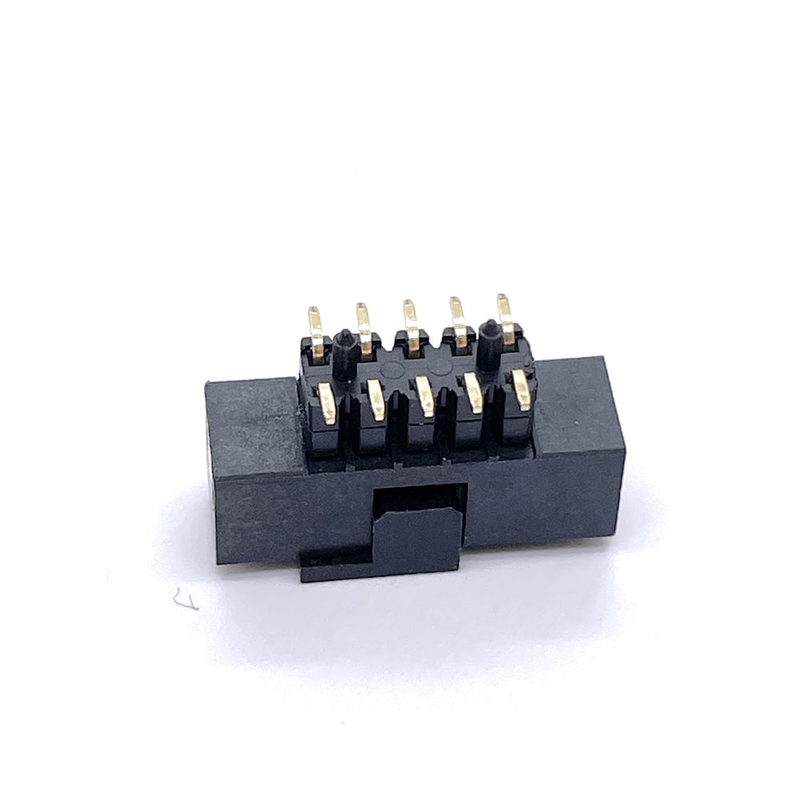

2.0mm Brass Right-Angle Box Header & Ejector Header PCB Connector for LED Lighting

Highlight

✅ Rich customization portfolio: straight pin / right‑angle / SMT mounting; customizable plastic housing height for different PCB stacking & enclosure space
✅ SMT pick‑and‑place ready: optional suction cap for automated mounting equipment
✅ Tape & Reel / Tube packaging available, directly compatible with SMT assembly lines
✅ Brass contact material, stable signal transmission for LED lighting systems
✅ Polarized shroud housing, anti‑mis‑mating, prevent pin bending during assembly
✅ RoHS & UL94 V‑0 compliant, fit for indoor & outdoor LED lighting projects

Product Description

Compatibility & Cross‑Reference

Note: Always verify pin‑count, mounting orientation, housing height & plating before drop‑in replacement. Our 2.0 mm Box Header & Ejector Header can serve as cost‑effective alternatives for mainstream brand series:

• Compatible with TE, Molex, JAE 2.0 mm pitch shrouded ejector header series for LED & signal interconnection.
• Supports custom footprint adjustment to match customer’s existing PCB for direct replacement.
• Avoid long OEM lead‑time (12‑20 weeks) while maintaining mechanical & electrical compatibility.

Send us your competitor part number, we will confirm matching solution for you.

Product Features

1. Shrouded box‑type housing protects brass pins from physical damage during production & transportation
2. Ejector latch design for secure ribbon cable locking, easy cable release for maintenance
3. Multiple mounting options (straight/right-angle / SMT) solve limited cabinet / PCB layout space
4. Customizable plastic height to fit different enclosure gap requirements
5. Optional suction cap for SMT variant, supports high‑speed automatic pick‑and‑place
6. Polarization key prevents reverse mating, reducing on‑site assembly failure rate
7. Strict dimension control for consistent mating with standard 2.0 mm IDC flat ribbon cables

Product Advantage

🔹 Engineer‑tailored customization: housing height, pin tail length, plating spec can be adjusted per your PCB drawing
🔹 Assembly‑friendly packaging: Tape & Reel for SMT line; Tube for manual prototype assembly
🔹 Stable brass contact, low contact resistance, reliable for LED power & signal loop
🔹 Shorter lead‑time vs overseas famous brands; competitive factory‑direct cost for mass lighting projects
🔹 Pre‑shipment full‑range electrical & dimensional inspection
🔹 Support drawing‑based custom development for non‑standard LED module designs

Application

• LED lighting equipment: LED display modules, LED strip control boards, LED panel lights, driver boards
• Smart lighting control units
• Indoor & outdoor LED signage
• Industrial control signal interconnection
• Consumer electronics PCB‑to‑flat‑cable connection
• IoT smart device internal wiring

Packaging Method

1. Tape & Reel: For SMT version with vacuum cap. Direct feeding to automatic pick‑and‑place machine, suitable for high‑volume mass production.
2. Tube (Tube Packing): For THT straight/right-angle samples & small‑batch orders, manual insertion or semi‑auto assembly.

Please specify packaging requirement when placing order.

Lead Time

• Samples: 3 working days for standard items
• Bulk production order: 1‑3 weeks (depends on pin‑count, plating & packing type; custom modified parts need extra time)

Factory Certification & Custom Service

• Certifications: RoHS, REACH, UL‑94V‑0 material certification
• Sample Policy: Support free samples / fast sample delivery for engineering evaluation
• MOQ: Standard parts low MOQ; Custom‑structure MOQ upon project evaluation
• Custom scope: insulator height, empty‑pin position, pin length, plating thickness, mounting form, special packaging solution
• Service: Provide drawings, 2D/3D files, test report for your project review

Engineer Selection Guide (Engineer Tips)

1. Confirm pitch: confirm 2.0 mm pitch, dual‑row structure.
2. Select mounting type: Straight / Right‑Angle 90° / SMT (if SMT required, confirm whether a suction cap is needed for pick‑and‑place).
3. Confirm PIN: match your IDC flat cable position count.
4. Housing height: choose standard height or submit drawing for customized plastic height.
5. Plating selection: Tin plating for general signal; Gold flash for high‑vibration / long‑life working environment.
6. Packaging selection: Tape & Reel for auto‑SMT production; Tube for lab prototype & manual assembly.
7. Send us your PCB footprint or competitor part number; our engineering team will validate the matching solution.

Inquiry reminder: Please share pin count, mounting style, packaging requirement and target application when sending inquiry.
