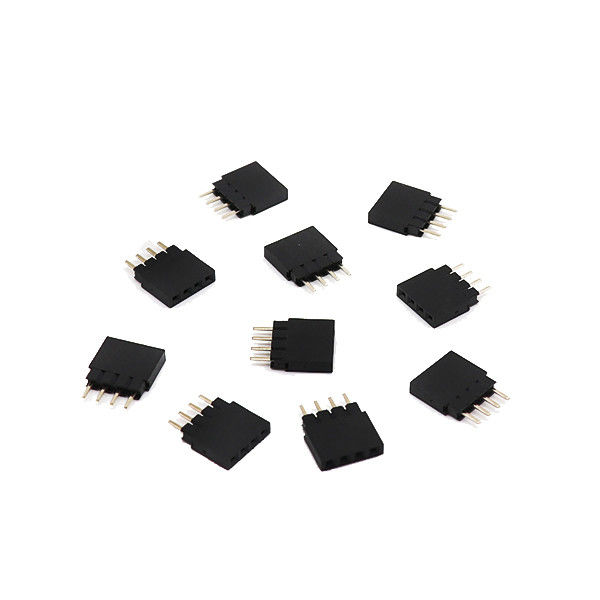

Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket

Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket
Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket
Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket

Large Image :  Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: female header connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs
Contact Now

Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket

Description
Pitch: 2.0mm Mounting Type: DIP
Contact Material: Phosphor Bronze Contact Finish: Gold Over Ni
Operation Temperature: -40℃ To +105℃ Withstand Voltage: 500V AC/DC
High Light:

4 Pin Female Header Connector

,

2.0mm Female Header Connector

,

2.0mm Female Header Socket

Single Row 4 Pin Female Connector , Plastic Square Pin Female Header Socket





Product Description





Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-50p
Rated current 1.5A AC
Rated voltage 50V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -40℃ to +105℃
Withstanding Voltage 500V/1min AC
Housing Polyester(UL94V-0)
Contact Brass
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days

Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket 0



Drawing

Single Row 4 Pin Female Header Connector 2.0mm Pin Female Header Socket 1



Features



the use of a wide range of environmental protection fireproof antioxidant strong conductivity.



Typical Application



For data transfer and charging:Mobile phone, mobile power, charger Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipment, security etc.



What is a PCB Connector?

Printed Circuit Board connectors are connecting systems, which are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. As PCBs are not hard-wired to each other and can be assembled later in a production process, providing an easy method of Design for Manufacture.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors are known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. There are also some other names for PCB connectors: Male PCB Connectors usually referred to Pin Headers, as they are simply rows of pins, while Female PCB Connectors named as Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Tag:

2.0mm 25 pin female connector,

PCB 25 pin female connector,

Straight DIP PCB Female Connector
