Product Details:
|
| Application: | Automotive | Housing: | PBT UL94V-0 / PA6T |
|---|---|---|---|
| Pin: | 08~60 Pins | Contact Plating: | Gold Flash Selective |
| Tape: | Straight DIP,Right Angle ,SMT | Color: | Black |
| High Light: | Single Row 1.27 Mm Female Header,1.27 Mm Female Header,Single Row pcb female header |
||

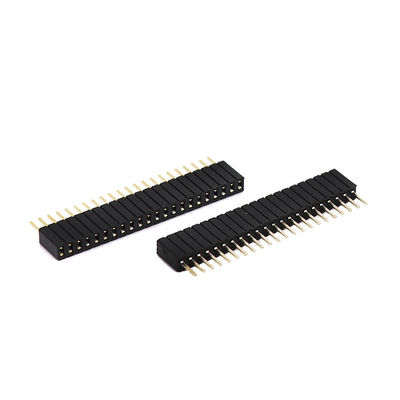

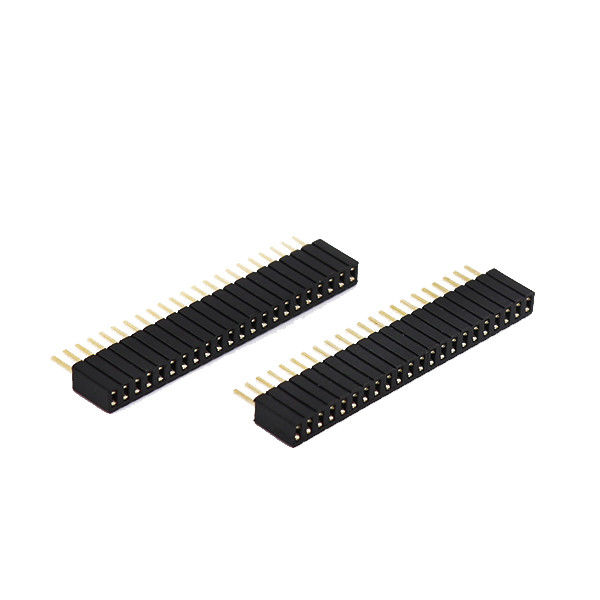

1.27mm Female Header PCB Connector Single Row Straight DIP Type
Product Description
| roduct Name | single dual row pcb connector female header |
| Pitch | 1.27mm |
| Material | PPS,PBT and Brass |
| Pin Plating | Tin or gold over nickel |
| Package | Bag packing,Tube packing,Tape&Reel packing |
| OEM/ODM | Accept and made based on drawing or samples |
| Payment Terms | T/T,PayPal,Western Union,L/C |
| Lead time | 1-2weeks |
| Application | PCB board |
| Positions | 1-40pin |
| Samples | Provided |
| Confirmation | Drawing will be provided before production |
| Insulator Flammability | UL94V-0 |
| Company Advantage | 1.Factory and trade integration,18 years export experience; 2.One-stop shopping; 3.Competitive price; 5.Timely delivery; 6.Technical support; 7.Samples for free; |
Drawing
Feature
Custom Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
