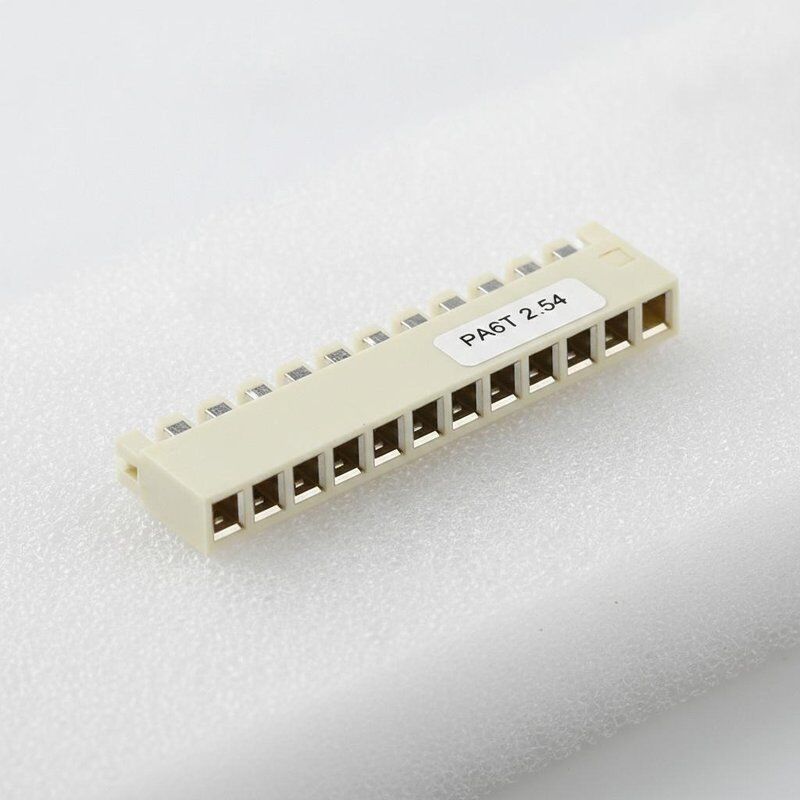

Name: PA6T UL94V-0 Female Header Connector with 2.54mm Pitch and Brass Gold Flash Contact
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Female header
Price: 4.10 USD
Availability: InStock

Home > Products > Female Header Connector >

PA6T UL94V-0 Female Header Connector with 2.54mm Pitch and Brass Gold Flash Contact

PA6T Female Header Connector

2.54mm Female Header Connector

PA6T 2.54 mm female header

Place of Origin:

Guangdong,China

Brand Name:

XTK

Certification:

CE,ROHS

Model Number:

Female header

Request A Quote

Product Details

Contact Material:

Brass Gold Flash

Material Of Housing:

PA6T UL94V-0

Temperature Range:

240℃ For 30-60S/260℃ For 5S

Positions:

1-40pin

Pitch:

2.54mm

Solder Type:

DIP

Highlight:

PA6T Female Header Connector

2.54mm Female Header Connector

PA6T 2.54 mm female header

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7days

Payment Terms

L/C,T/T，Paypal

Supply Ability

4KKpcs/month

Gold Plated PCB Board To Wire Connectors Ejector 2.0mm DIP IDC Male Connector

Get Best Price

Black 1.0mm Pitch Reversible Contact Vertical SMT Type FPC Connector Bar To Bar

Get Best Price

Upgrade Your B2B Business with High Durability Chip Connector Fress Sample

Get Best Price

Tin Plating Wafer Box Connector for Plastic Products in Fress Plating

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

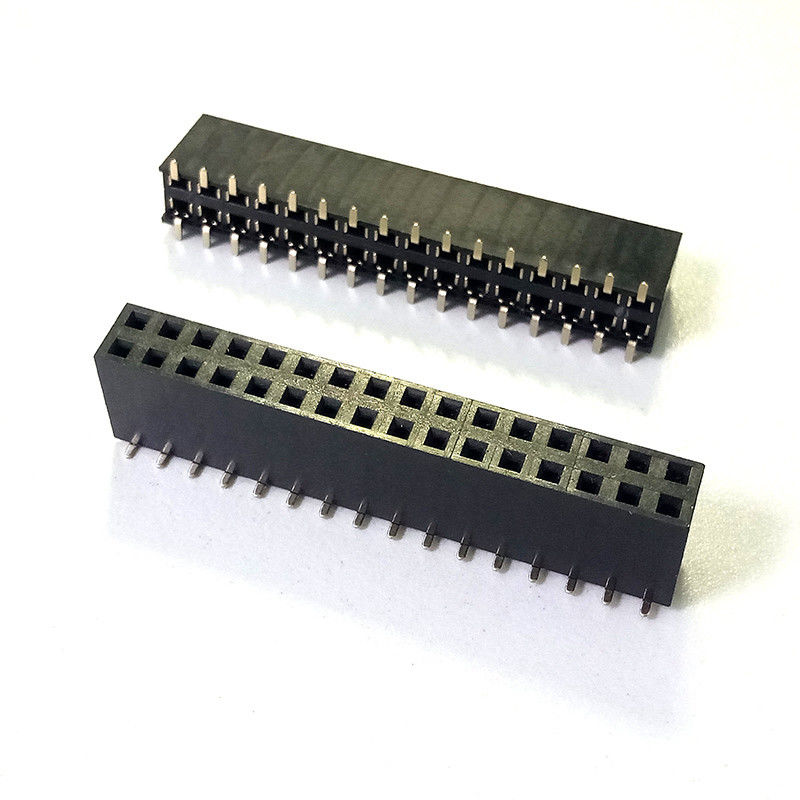

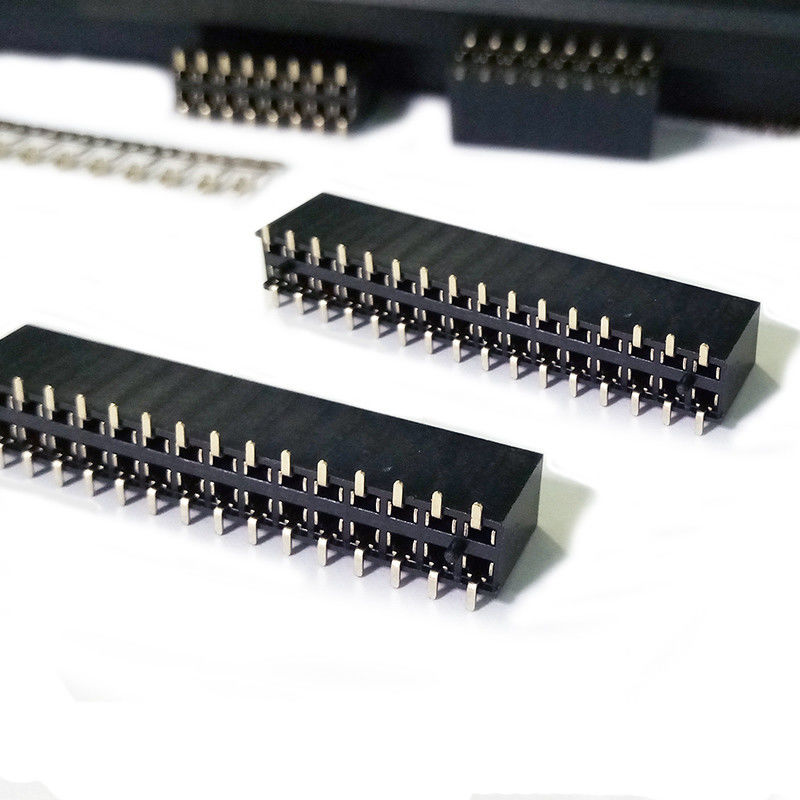

PA6T Single Dual Row 16 Pin Female Header Connector 2.54mm Pitch

Single / Dual Row Female Pin Header Connector 2.54mm Pitch

Product Specifications

Pitch	2.54mm
Mounting Type	SMT
No. Of Positions	2-50p
Rated Current	3.0A AC
Rated Voltage	50V AC/DC
Contact Resistance	20m ohms MAX
Insulation Resistance	1000m ohms min
Insertion Force	20gf/pin Min
Operation Temperature	-40℃ to +105℃
Withstanding Voltage	1000V/1min AC
Housing	Polyester (UL94V-0)
Contact	Phosphor bronze
Gender	Female
Price Term	FOB
Durability Cycles	5000 Cycles Min
Lead Time	7-10 working Days

Key Features

Pin Headers provide design flexibility and production efficiency
Reduces needed equipment assets
Available in horizontal, right-angle, and vertical orientations
Single and dual row configurations

Typical Applications

Data transfer and charging applications
Mobile phones, mobile power banks, chargers
Cameras, digital audio devices
Tablet PCs, Notebook PCs
DSCs, DVCs, Audio Players
FPD, LCD TVs, Printers, Copiers
Industrial Equipment, Medical Equipment
Security systems

Manufacturing Process

Stamping / Injection
Pre-line inspection
Automatic machine plug terminal
Assembled back cover
Electrical test
Pressure test
Flatness test
Appearance test
FQC test
Storage

Packaging & Shipping

FOB Port: Shenzhen
Lead time: 7 working days
Packaging: Reel in carton

Payment & Delivery

Payment Methods: Advance TT, T/T, L/C, Paypal, etc.
Delivery: 7-10 working days after order confirmation

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

What is your delivery time?

Generally 5-7 days for standard products within quantity of 10,000 pcs.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

What PCB Connectors can you provide?

FPC connector, Pin Header, Female Header, Box Header, Ejector header, Wafer housing, SIM Card connector, Memory card connector, USB.

What are your terms of payment?

Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, etc. And you can pay on Alibaba with your credit card.

Are small orders less than 100pcs accepted?

Yes, please contact with us, we will send you link for small order.

Why can you buy high quality PCB connectors with attractive prices from us?

1) Products development and design of metal and plastic mold, precision high-speed punch molding, plastic injection molding and automatic assembly with the support of Skilled R&D. All processes are done in-house to save costs and control quality.

2) We have our own electroplating factory which saves costs - this is our competitive advantage.

3) Our production equipment uses Auto-Assemblies Machines instead of manual labor, providing highly efficient production capacity.

For example, 0.5mm pitch FPC connector: Auto-Assemblies Machine capacity: 100pcs/1 minute.
