3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP

3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP
3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP
3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP 3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP 3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP

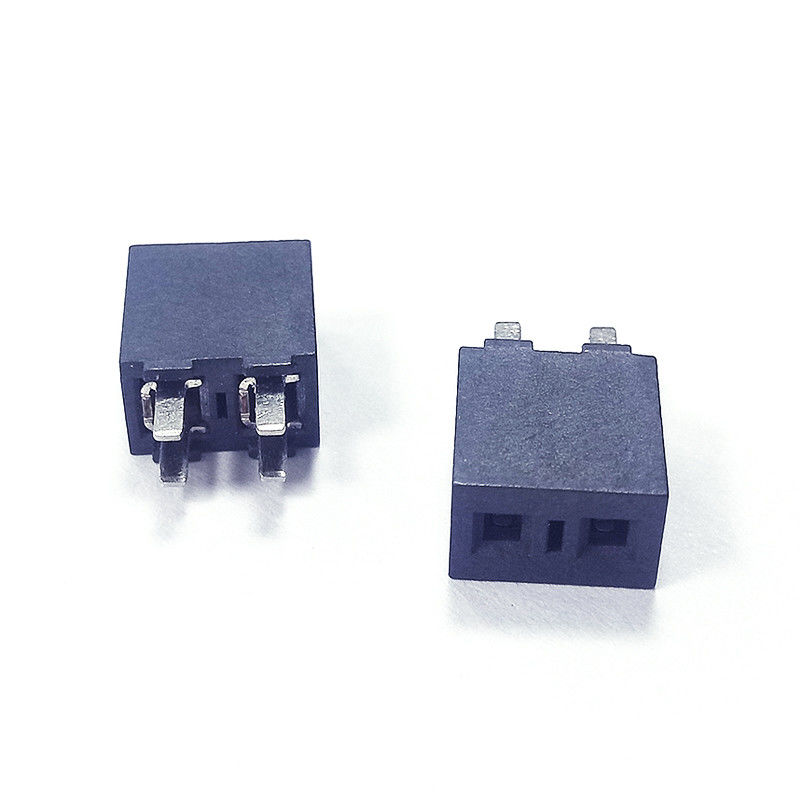

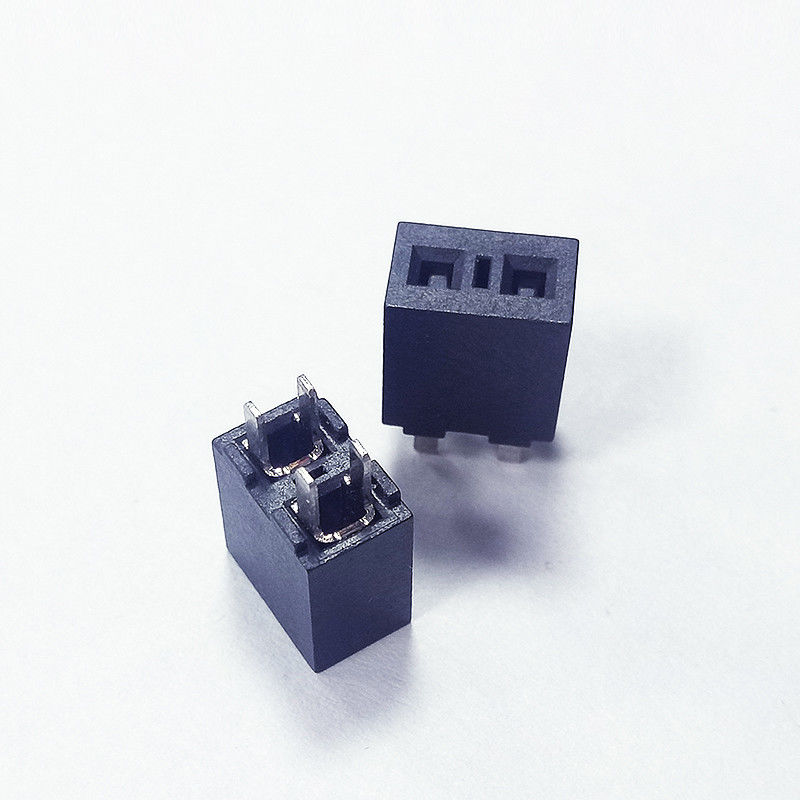

Large Image :  3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Female header connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP

Description
Pitch: 3.96mm Contact Resistance(max): 20M Ohm
Current Rating: 7Amp Processing Temperature: 260±5℃ For 10 Seconds
Operating Temperature: -40~105℃ Insulation Resistance(min): 1000M Ohm
High Light:

3.96mm Female Header Connector

,

4pin Female Header Connector

,

3.96mm single row female header

3.96mm pitch Female Header Connector Single Row Straight DIP





A female header is a socket header connector with metal contacts, which are inserted into a plastic base. They are typically mated with pin header connectors providing a reliable and economical board-to-board connection.



Product Application



It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.



Specification

Products Name Female Header/PCB Connector
Pitch 3.96mm
Current Rating 7.0 AMP
Contact Resistance 20 mΩ Max
Withstand Voltage AC 1000V
Insulation Resistance 1000 MΩ Min
Operation Temperature -40℃ to 105℃
Contact Material Coppy Alloy
Contact Plating Au or Sn Over Ni
Insulator Material PA6T+30 GF(UL94-V0)
Mounting Type Through Hole
Termination Solder
Number of Row Dual
Plastic Height 8.8mm
Contact Finish Gold Flash
Pins available 4 Pins to 40 Pins
Color Black
Packaging Tube

3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP 0



Drawing

3.96mm Pitch Single Row 4-40 Pin Female Header Connector Straight DIP 1



What's the Female Header

1,Female header is called PCB Connector. Based on different designs for PCB, they choose different pitch connectors for         signal transmission;

2,0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin     header that standard pitch couldn't satisfy, e-mail or call our sales team;

3,Generally, Female headers with suited pin headers are used to finish created modules in electronic industry;

4,Regarding Female header electrical and mechanical properties, same pitch has the same function, which we have shown     clearly in our data sheet;

5,Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and     folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust,   with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry   customers choose machine pin to improve connection stability.
