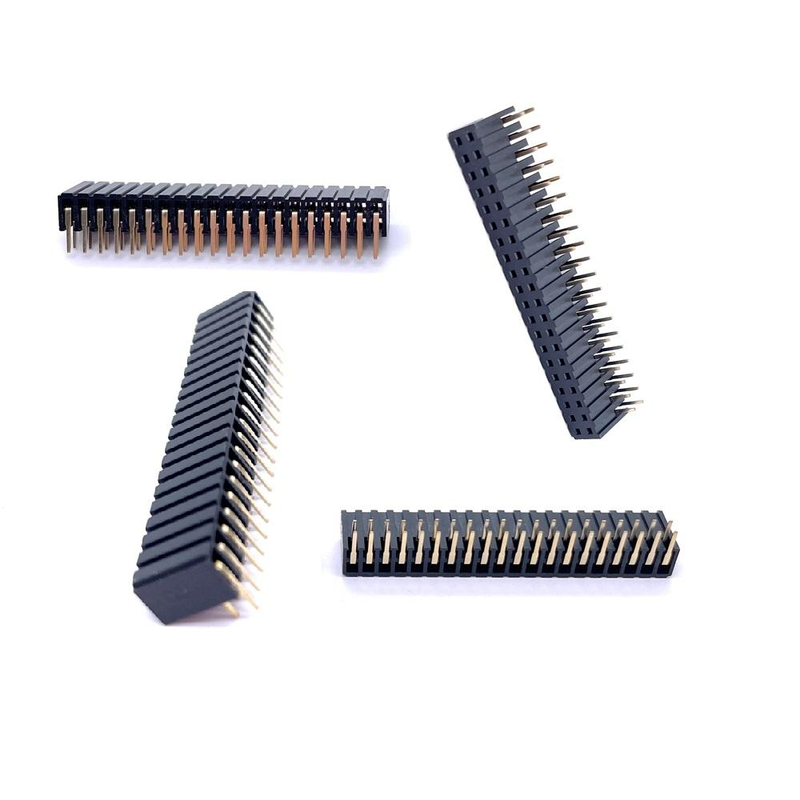

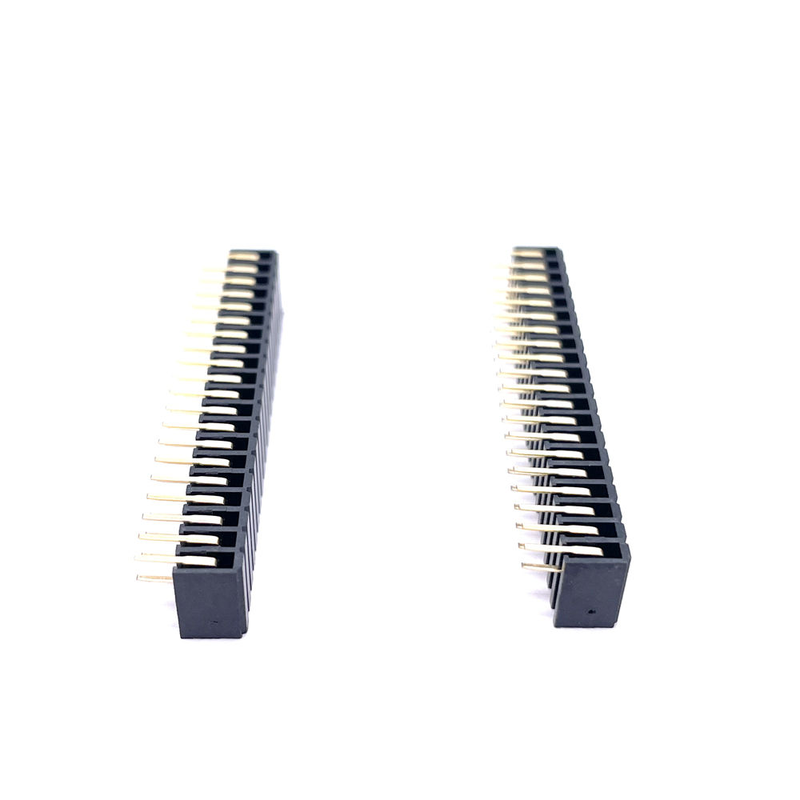

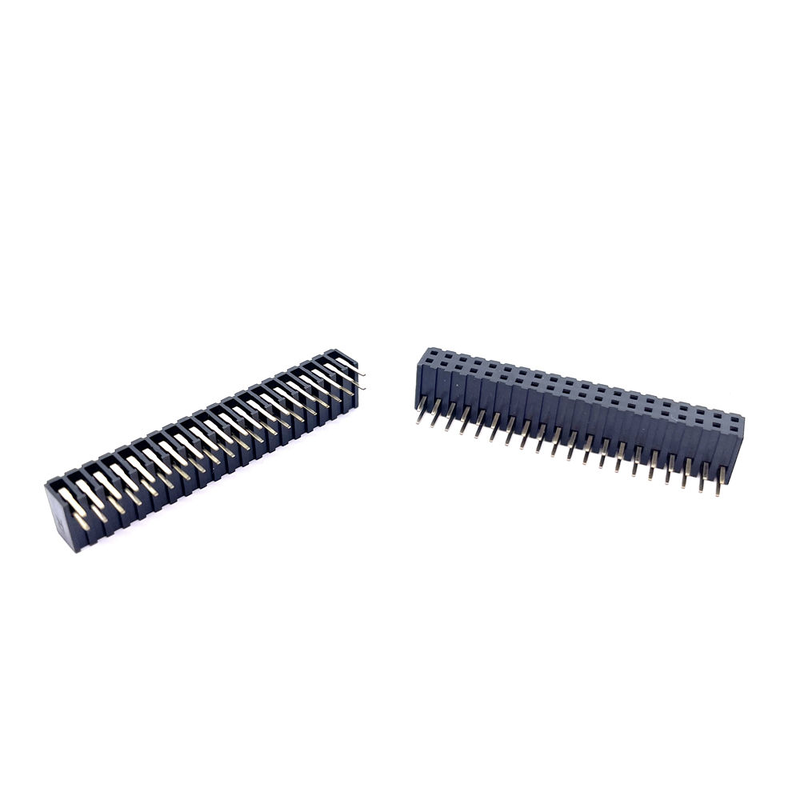

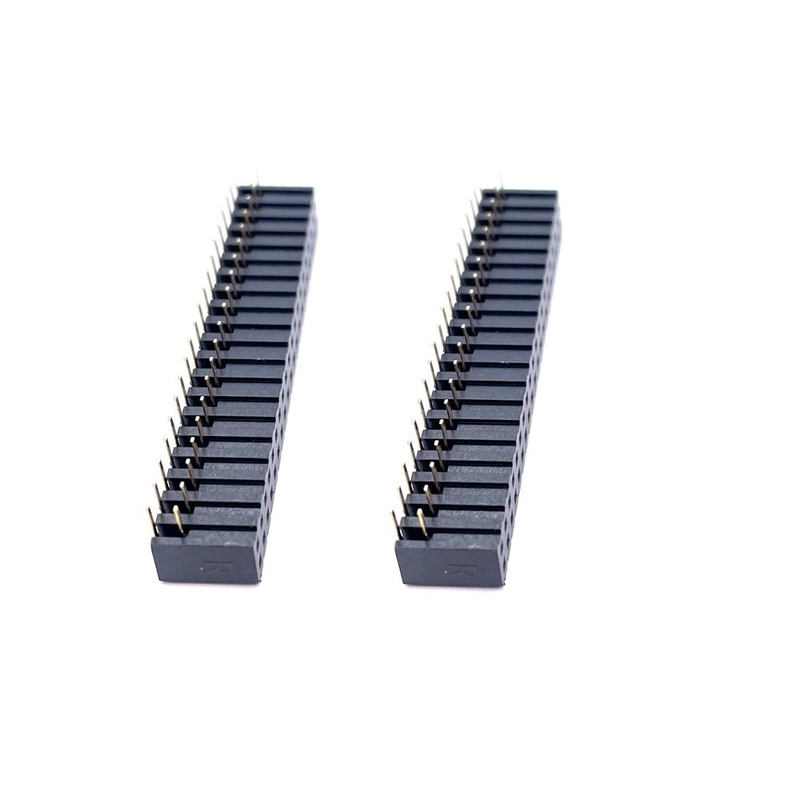

ODM 2.0mm Pitch 90 Degree Dual Row Brass Contact IP67 Automotive 2x20 Pin Female Header

Highlight

1. Multiple mounting options: straight‑pin / right‑angle 90° / SMT surface‑mount, custom plastic housing height available for ODM
2. SMT pick‑and‑place cap supported, ready for automatic assembly
3. Tape & Reel anti‑static reel packaging for high‑volume SMT production
4. IP67 sealed, automotive-grade, brass contact base material
5. Flexible pin count modification, housing color & plating custom upon request

Product Description

Mechanical Performance

Environment & Soldering

Compatibility & Cross‑Reference

Direct mechanical & electrical compatibility for mainstream international automotive connector series.

• Works as a functional alternative to Molex, TE, Amphenol 2.0 mm pitch dual‑row sealed female header series.
• Pin‑to‑pin footprint compatible for most PCB layouts; verify mating housing & seal before mass production.

Note: Submit your original part number to our engineering team for full replacement validation report.

Product Features

1. Brass contact delivers stable conductivity, good spring retention against automotive vibration & shock
2. IP67 sealing blocks dust, splash, and short‑term immersion for harsh vehicle environments
3. Anti‑misplug polarization prevents wrong‑direction assembly errors
4. SMT pick‑and‑place cap compatible; fits standard pick‑and‑place machines
5. Multi‑form factor ODM support: vertical/right-angle / SMT, customizable housing height
6. High‑temperature insulator survives SMT reflow soldering without deformation

Product Advantage

• Fast ODM customization: modify pin‑count, housing height, plating, mounting style without huge NRE cost
• Two‑packaging options: Tube / Tape & Reel, directly fit customer's existing SMT production lines
• Automotive‑level reliability, passed vibration, temperature‑cycle & IP‑ingress validation
• Cost‑effective alternative vs international brands, same mechanical‑electrical performance
• Engineering support: PCB footprint recommendation, mating‑pair matching, pre‑production validation

Application

• Automotive ECU, BMS, vehicle infotainment, ADAS sensor modules
• Off‑road vehicle, commercial vehicle control units
• Harsh‑environment industrial control, outdoor IoT equipment
• On‑board camera, lighting system, vehicle signal wire‑to‑board interconnection

Packaging Method

1. Tube Packing: Standard PVC tube, for manual assembly/prototype sampling; not suitable for SMT auto‑mounter
2. Tape & Reel: Embossed carrier tape + cover tape on reel, directly compatible with SMT pick‑and‑place machine, for high‑volume mass production.

Please specify packaging requirement when placing order.

Lead Time

• Samples: 3 working days for standard items
• Bulk production order: 1‑3 weeks (depends on pin‑count, plating & packing type; custom modified parts need extra time)

Factory Certification & Custom Service

• Certifications: ISO9001, IATF16949 automotive‑quality‑system, UL, RoHS & REACH compliance
• MOQ: Standard parts: low MOQ; ODM custom parts: MOQ upon evaluation
• Free samples available; fast sample delivery supported
• ODM service: housing height, pin‑number, plating, housing color, mounting style, and special packaging requirements are acceptable.

Engineer Selection Guide (Engineer Tips)

1. Confirm pitch: 2.0 mm, dual‑row, pin count 2×20P, mounting orientation: 90° right‑angle
2. Confirm working environment: Need IP67? Confirm actual mating sealing requirement.
3. Select termination: Through‑hole soldering or SMT surface‑mount.
4. Plating selection: Tin‑plated for general signal; Gold‑plated for high‑vibration / long‑life vehicle application.
5. Packaging choice: Tube for small‑batch; Tape & Reel for SMT automatic production line.
6. Submit target working temperature, mating‑housing part number, and PCB layout restrictions to our engineer for final confirmation before formal sampling.

Contact our engineering team if you need footprint drawing, 3D STEP file or mating‑pair recommendation.
