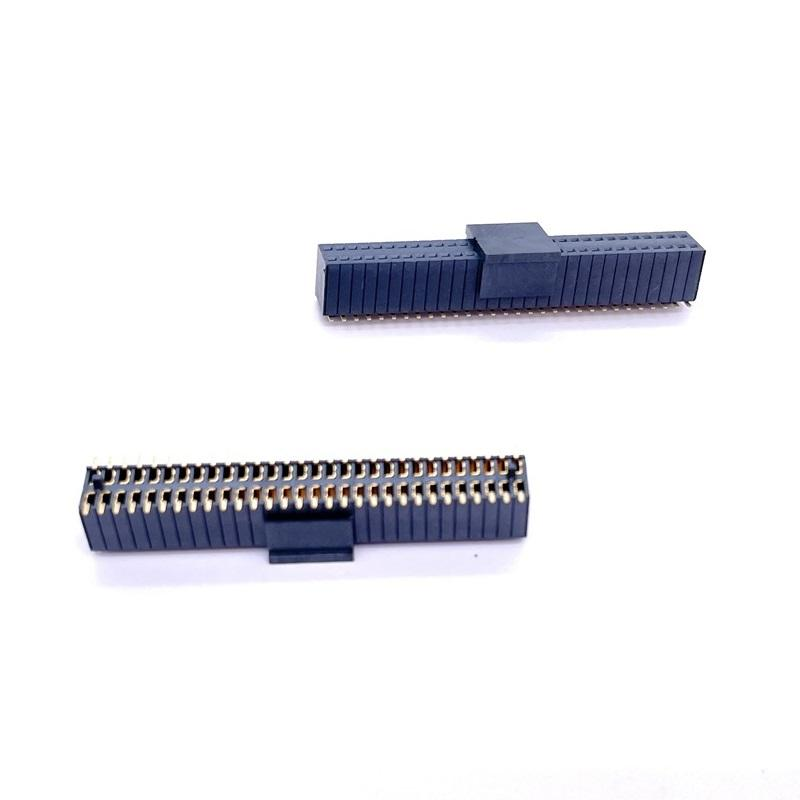

Custom Connector 1.27mm Pitch Plastic Single/Dual Row Straight Plug for PCB Female Header Pin Socket

Highlight

✅ Flexible custom options: Straight / Right‑angle / SMT mounting; customizable plastic housing height
✅ Built‑in real pick‑and‑place cap for fully‑automated SMT assembly
✅ Standard Tape & Reel packing, directly compatible with SMT pick‑and‑place machines
✅ IP67 waterproof‑rated, optimized for photovoltaic & harsh‑environment PCB connection
✅ Brass contact, stable signal & power transmission, dual‑row 2×30‑pin 60‑position configuration

Product Description

Mechanical Performance

Environment & Soldering

Compatibility & Cross‑Reference

For engineer reference only; always verify footprint & IP rating before PCB release

• Functional equivalent for Molex, TE, JAE 2.54 mm dual‑row female header series
• Drop‑in mechanical & electrical match for most standard 2×30‑pin 2.54 mm right‑angle SMT female header layouts
• Key difference: This model adds IP67 sealing & a genuine SMT pick‑and‑place cap; many OEM brand standard versions lack waterproof function and a pick-and-place cap.

Note: Please send target OEM part number, we can provide exact cross‑reference confirmation & drawing comparison.

Product Features

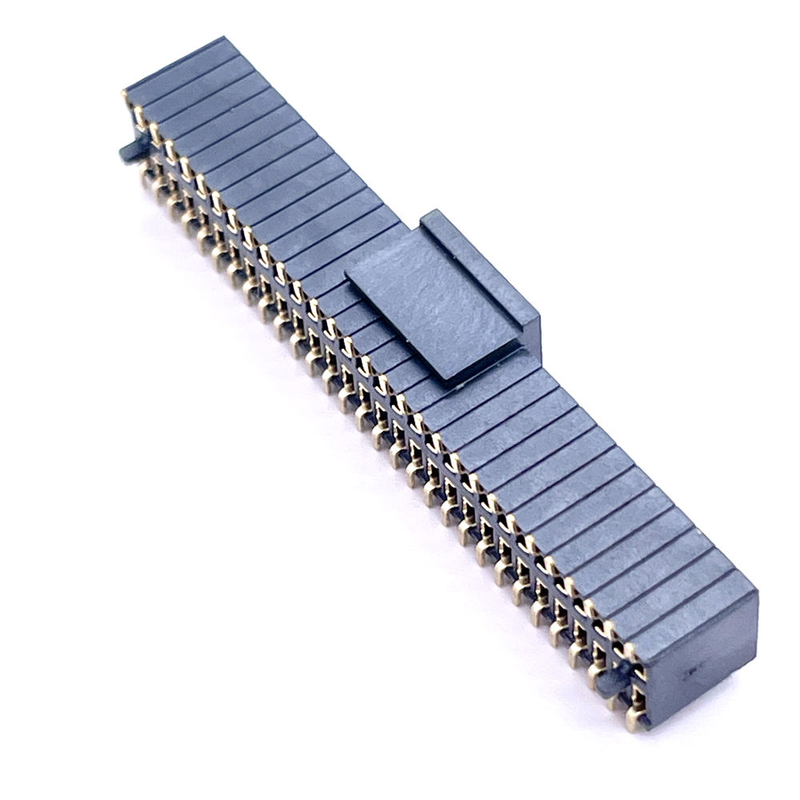

1. Real physical SMT pickup cap, no dummy cap; stable nozzle grabbing for high‑speed SMT production line
2. IP67 sealed structure, dust‑proof & waterproof, suitable for outdoor photovoltaic equipment
3. Brass contacts guarantee low‑resistance & stable conductivity under long-term operation
4. Right‑angle 90° SMT layout, saves PCB vertical space
5. Multi‑dimension custom support: pin orientation, housing height, plating thickness, pin count
6. Tape & Reel output matches EIA‑481 standard for automatic assembly lines

Product Advantage

🔹 Solve pain point: Many 2.54 mm SMT female headers use fake‑cap design causing pick‑miss; our real‑cap improves SMT placement yield
🔹 IP67 waterproof capability; most common 2.54 mm headers on the market have no waterproof grade
🔹 Flexible customization without high non‑recurring‑engineering cost for medium‑volume orders
🔹 Tape‑and‑reel ready, parts go directly onto SMT feeder, no secondary manual handling required
🔹 Strict batch‑to‑batch consistency for photovoltaic & industrial PCB mass‑production

Application

• Photovoltaic solar power equipment, solar inverter PCB modules
• Outdoor industrial control PCB boards
• Rugged IoT outdoor terminals
• Industrial sensor connection modules
• Harsh‑environment signal & low‑power board‑to‑board interconnection

Packaging Method

1. Tube Packaging (Standard): Anti‑static plastic tube, ideal for lab prototyping, small‑batch manual assembly. Cannot feed directly into SMT automatic pick‑and‑place machine.
2. Tape & Reel (Optional): Carrier‑tape + cover‑tape on reel, complies with EIA‑481 standard. Directly usable for SMT automatic assembly lines.

Important: Specify packaging type clearly when placing inquiry, packaging determines your SMT‑line compatibility.

Lead Time

• Sample order: 3 working days
• Mass production orders: 1‑3 weeks, subject to quantity & customization complexity

Factory Certification & Custom Service

• Certifications: ISO9001, RoHS compliance
• Sample Policy: Free samples supported, fast sample delivery
• MOQ: Standard part MOQ:1000 pcs; Customized parts subject to tooling requirements
• Customizable items: pin count, insulator height, straight/right-angle / SMT type, gold plating thickness, pick‑up cap enable/disable, special housing material.

Engineer Selection Guide (Engineer Tips)

1. Confirm 3 core parameters before design‑in: pin count(2×30), mounting style(SMT right‑angle), required protection grade (IP67).
2. Confirm SMT production requirement: Must select Tape & Reel packing if you run automatic pick‑and‑place. Tube packing cannot feed auto‑machines.
3. Plating selection: Gold plating for high‑mating‑cycle / high‑reliability scenario; Tin plating for cost‑sensitive static‑connection application.
4. Reflow soldering: Follow our reflow‑profile spec; over‑long high‑temperature duration will damage IP67 sealing housing.
5. Send us your PCB footprint or target competitor part number; our engineering team will double‑check fit‑for‑use for your project.
