2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug

2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug
2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug
2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug 2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug 2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug 2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug

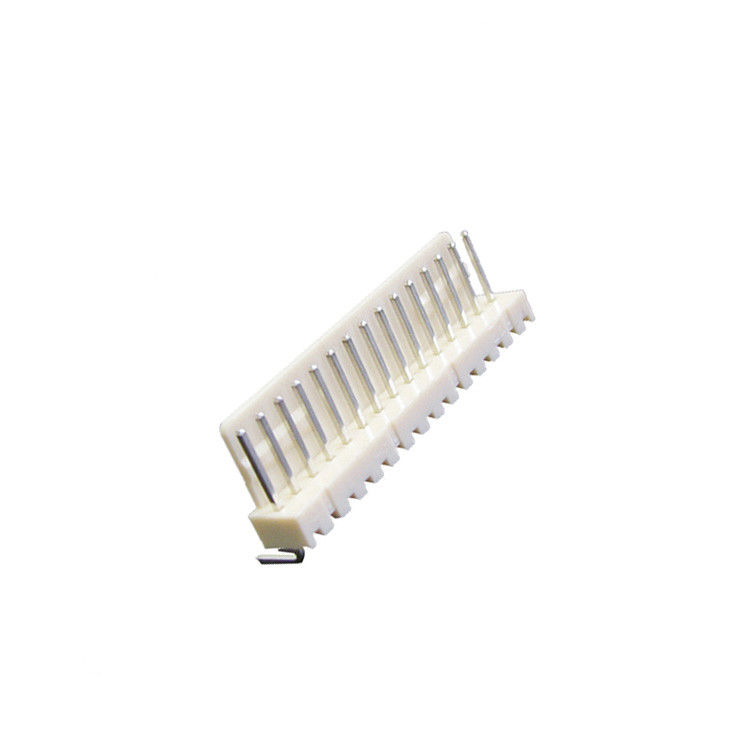

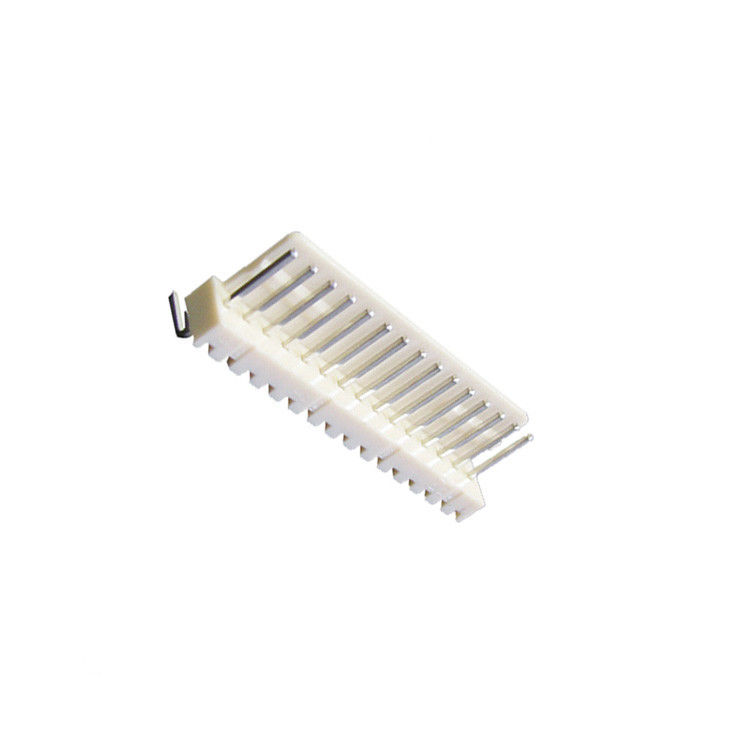

Large Image :  2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

2.54mm Spacing 5p 6 Pin Wafer Connector 90 Degree Female Header Right Angle Plug

Description
Insulator Material: Polyester (UL94V-0) Standard: PA9T + 30%GF
Contact Planting: Sn Over Ni Contact Resistance: 20m Ω Max
Withstand Voltage: 250V AC/Minute Insulation Resistance: 100m Ω Min
High Light:

2.54mm 6 Pin Wafer Connector

,

Right Angle 6 Pin Wafer Connector

,

2.54mm 90 degree female header

2.54mm Spacing 2p 5p 6p 40 pin 90 Degree Wafer Box Connector Right Angle Plug





Product Description



Ideal for compact applications, 2.54mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets automotive, consumer and industrial industry requirements.

item
value
Place of Origin
China
Brand Name
XTK
Wire AWG
#22-28
Type
Wire to Board Connector
Application
All Electric Area
Gender
Wafer
Current Rating
1.0 AMP
Contact Resistance
20m Ω Max
Insulation Resistance
100m Ω Min
Withstand Voltage
250V AC/Minute
Operation Temperature
-25℃ to +85℃
Contact Material
Brass
Contact Planting
Sn over Ni
Insulator Material
Polyester (UL94V-0)
No. Of Pins
02 - 40P
Pitch
2.54mm





Features



It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.



Packing & Shipping



1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.

2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.

3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.



FAQ







who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(31.50%),Western Europe(15.60%),Southeast Asia(9.50%),Central America(8.10%),South Asia(7.20%),Eastern Asia(5.00%),South America(4.30%),North America(4.20%),Mid East(3.50%),Southern Europe(3.30%),Africa(2.20%),Eastern Europe(2.10%),Oceania(2.00%),Northern Europe(1.50%). There are total about 101-200 people in our office.


how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

what can you buy from us?
Cable Assemblies,Board to Board Connector,Wire To Board Connector,IO Connector,Terminal Blocks


1. XTK Electronics Technology Co., Ltd was founded in 2009;

2. We have accumulated a wealth of experience on connectors.

3. Quality-oriented, rigorous standards.

4. We accept customized products.

what services can we provide?
Accepted Delivery Terms: EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
