Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

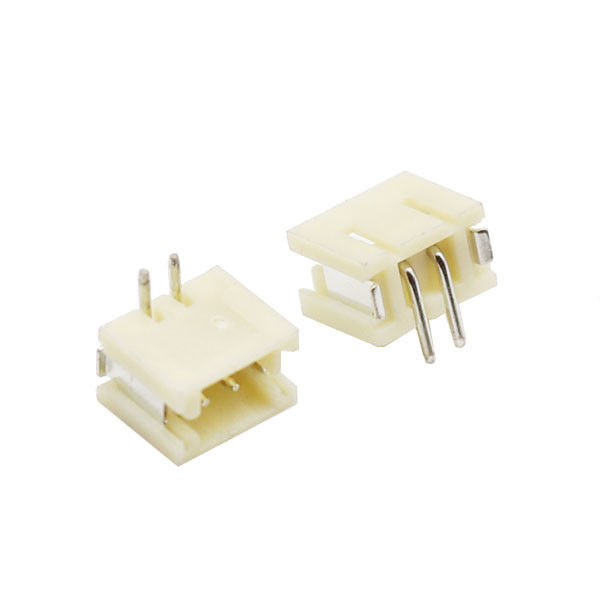

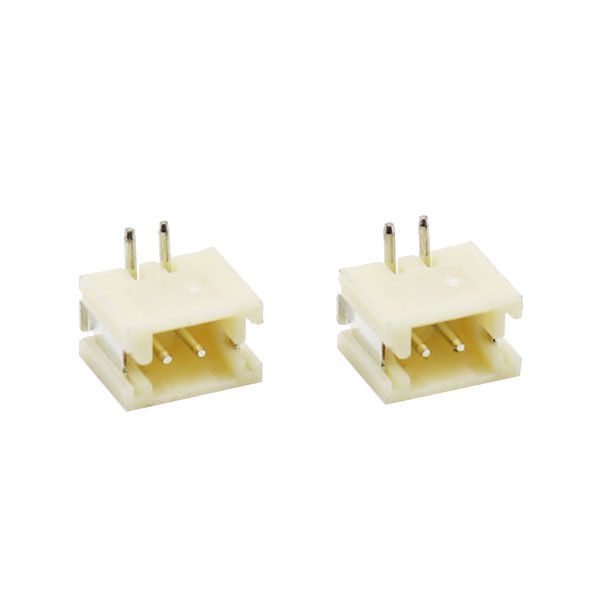

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female
Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female
Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Large Image :  Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Description
Pitch: 1.5mm Rated Current: 1.0A AC
Price Term: FOB Durability Cycles : 5000 Cycles Min
Wire AWG: #24-30 Contact: Brass Tin-plated
High Light:

Wafer SMT Wire To Board Connector

,

1.5mm SMT Wire To Board Connector

,

1.5mm Pin Header Connector Female

Straight SMT Type 2-15pin 1.5mm Pitch wafer Box Connector Female Pin Header





Product Description



Ideal for compact applications, the Pico-SPOX 1.50mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets several industry requirements.

Pitch 1.5mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 1.0A AC
Rated voltage 100V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 500m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG 24-30



Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female 0



Feature



Wafer Connector System is very compact and secure, featuring 1.50mm-pitch and friction lock. Saves 30% space compared with 2.00mm wire-to-board connector system. Customers choose different connectors from different vendors; this makes their procurement process complex and often causes compatibility issues.wafer Connector System is available in 2- to15- circuit single-row connectors in vertical and right angle configurations.



Application



For data transfer and charging:

Mobile phone,

mobile power,

charger Camera,

Digital Audio,

Tablet PCs / Notebook PCs,

DSCs / DVCs,

Audio Players,

FPD / LCD TVs,

Printers / Copiers,

Industrial Equipment,

Medical Equipment,

security etc.



Competitive Advantages



Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS
