Product Details:
|
| Pitch: | 2.54mm | Application: | PCB,Audio & Video,networking,Telecom,Signal |
|---|---|---|---|
| Gender: | Female | Type: | Through Hole Mounting |
| Material: | Nylon66 UL94V-0 | Name: | 2.54mm Pitch PCB Connector |
| High Light: | UL94V-0 2 Pin Wire To Board Connector,2.54Mm 2 Pin Wire To Board Connector,UL94V-0 2.54 mm wire to board connector |
||

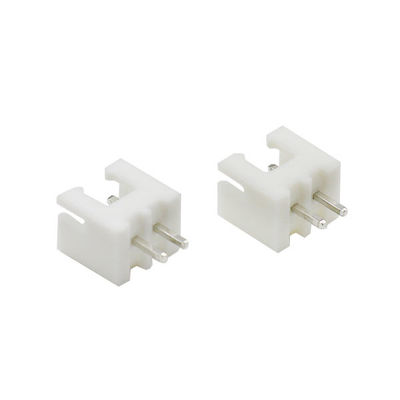

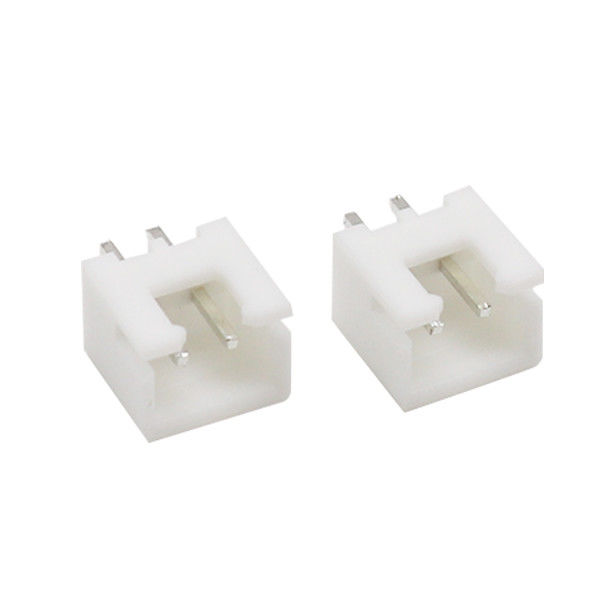

2.54m Pitch Wire To board Housing Wafer Box Connector Straight Dip Type
Pruduct Description
| Pitch | 2.54mm |
| Mounting Type | SMT |
| No. Of Positions | 2-15p |
| Rated current | 3.0A AC DC |
| Rated voltage | 250V AC/DC |
| Contact Resistance | 20m ohms MAX |
| Insulation Resistance | 1000m ohms min |
| Operation Temperature | -25℃ to +85℃ |
| Withstanding Voltage | 1000V/1min AC |
| Housing | Nylon66 UL94V-0 |
| Contact | Brass Tin-plated |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Wire AWG | #22-28 |
Drawing
Product Feature
Ideal for compact applications, 2.54mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets automotive, consumer and industrial industry requirements
Description
1. Wafer connector is a classification of rectangular connector. The basic structure is a bar, the contact is arranged in a single row, and the connector has a bar joint surface. The strip connector is a kind of component that electronic engineering technicians often contact.
2. Its function is very simple, in the circuit is blocked or isolated between the circuit, set up a bridge of communication, so that the current flow, so that the circuit to achieve the intended function.
Service
XTK Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if
customers are not satisfied)
