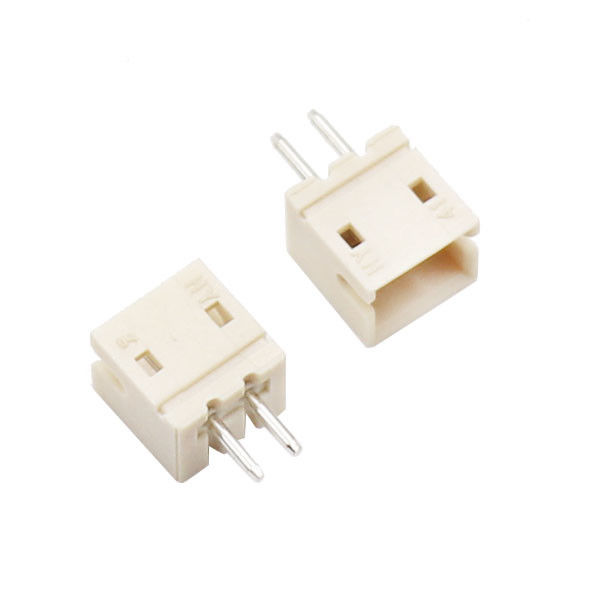

Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector

Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector
Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector
Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector

Large Image :  Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector

Description
Pitch: 1.5mm Rated Voltage: 50V AC/DC
Contact Resistance: 40m Ohms MAX Insulation Resistance: 500m Ohms Min
Operation Temperature: -25℃ To +85℃ Withstanding Voltage: 200V/1min AC
High Light:

Straight Dip 1.5 mm pitch connector

,

Wafer Housing 1.5 Mm Pitch Connector

,

1.5mm 2 pin wafer connector

1.5mm pitch straight dip wafer housing connector female needle connector





Product Description



Pitch 1.5mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 0.5A AC
Rated voltage 50V AC/DC
Contact Resistance 40m ohms MAX
Insulation Resistance 500m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 200V/1min AC
Housing LCP UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG #24-30

Straight Dip 2 Pin Wafer Housing 1.5 Mm Pitch Connector Female Needle Connector 0



What is Wafer Connector? What the different with 2.0mm Pitch?



Ideal for compact applications, the Pico-SPOX 1.50mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets several industry requirements.

Wafer Connector System is very compact and secure, featuring 1.50mm-pitch and friction lock. Saves 30% space compared with 2.00mm wire-to-board connector system. Customers choose different connectors from different vendors; this makes their procurement process complex and often causes compatibility issues.wafer Connector System is available in 2- to15- circuit single-row connectors in vertical and right angle configurations.



Application scope



It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.





Packing & Shipping



1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.

2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.

3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
