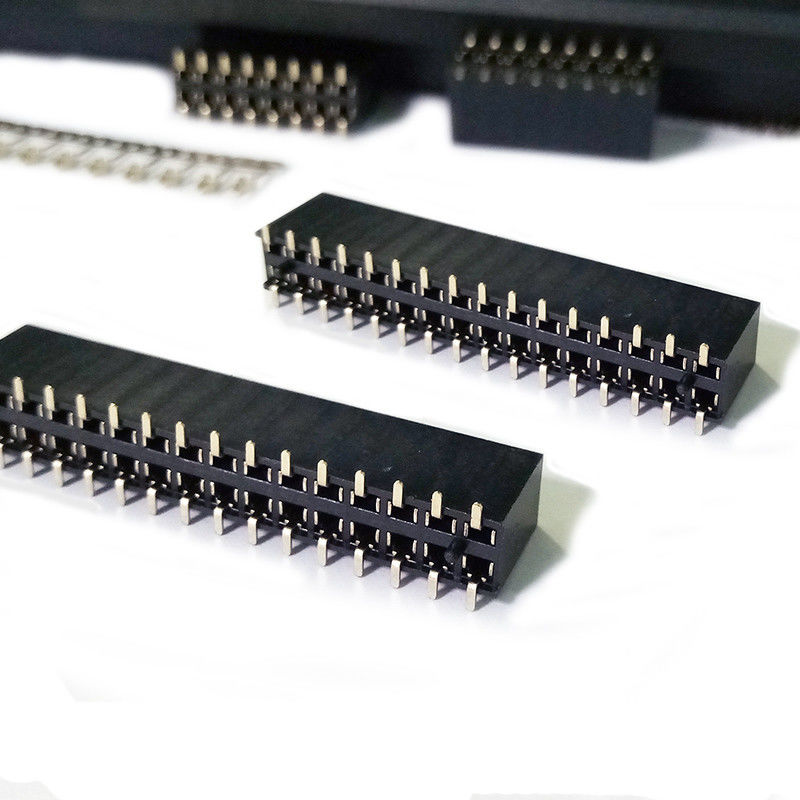

Single / Dual Row Female Pin Header Connector 2.54mm Pitch
Product Details
| Pitch |
2.54mm |
| Mounting Type |
SMT |
| No. Of Positions |
2-50p |
| Rated current |
3.0A AC |
| Rated voltage |
50V AC/DC |
| Contact Resistance |
20m ohms MAX |
| Insulation Resistance |
1000m ohms min |
| Insertion Force |
20gf/pin Min |
| Operation Temperature |
-40℃ to +105℃ |
| Withstanding Voltage |
1000V/1min AC |
| Housing |
Polyester(UL94V-0) |
| Contact |
Phosphor bronze |
| Gender |
Female |
| Price Term |
FOB |
| Durability cycles |
5000 Cycles Min |
| Lead Time |
7-10 working Days |
Feature
Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows.
Typical Application
For data transfer and charging:Mobile phone, mobile power, charger Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipment, security etc.
Processing steps
Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.
Packaging & Shipment
FOB Port:Shenzhen
Lead time:7 working days
Packaging: reel in carton
Payment term & Delivery
Payment Method:advance TT,T/T,L/C,Paypal etc;
Delivery details:7-10working days after having confirmed the order
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What 's PCB Connector can provide?
A: FPC connector, Pin Header, Female Header, Box Header, Ejector header,Wafer housing, SIM Card connector,Memory card connector, USB.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
Q: Why you can buy high quality PCB connector with attractive price from us ?
A: 1) Products development and design of metal and plastic mold , precision high-speed punch molding, plastic injection molding and automatic assembly with the support of Skilled R&D also all process are done in house that can save cost and control quality of each production process by ourself.
2) We have own electroplating factory can save our cost, other supplier has not it yet. It’s our advantage
3) Our production equipment are Auto- Assemblies Machine instead of worker. Highly efficient production capacity.
For Example 0.5mm pitch FPC connector
Auto-Assemblies Machine capacity: 100pcs/ 1minute.
