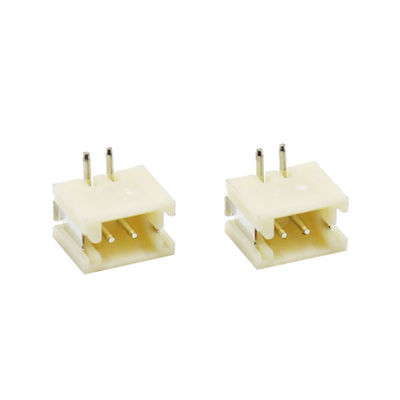

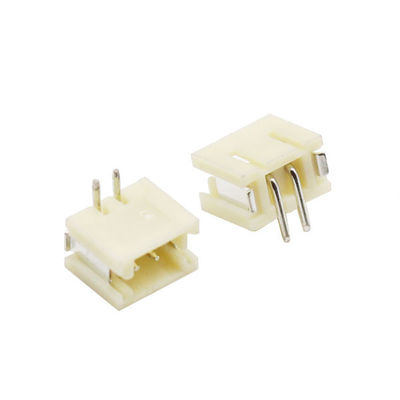

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female
Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Large Image :  Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal

Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female

Description
Pitch: 1.5mm Rated Current: 1.0A AC
Price Term: FOB Durability Cycles : 5000 Cycles Min
Wire AWG: #24-30 Contact: Brass Tin-plated
High Light:

Wafer SMT Wire To Board Connector

,

1.5mm SMT Wire To Board Connector

,

1.5mm Pin Header Connector Female

Straight SMT Type 2-15pin 1.5mm Pitch wafer Box Connector Female Pin Header





Product Description



Ideal for compact applications, the Pico-SPOX 1.50mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets several industry requirements.

Pitch 1.5mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 1.0A AC
Rated voltage 100V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 500m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG 24-30



Straight SMT Wire To Board Connector 1.5mm Pitch Wafer 2 Pin Header Connector Female 0



Feature



Wafer Connector System is very compact and secure, featuring 1.50mm-pitch and friction lock. Saves 30% space compared with 2.00mm wire-to-board connector system. Customers choose different connectors from different vendors; this makes their procurement process complex and often causes compatibility issues.wafer Connector System is available in 2- to15- circuit single-row connectors in vertical and right angle configurations.



Application



For data transfer and charging:

Mobile phone,

mobile power,

charger Camera,

Digital Audio,

Tablet PCs / Notebook PCs,

DSCs / DVCs,

Audio Players,

FPD / LCD TVs,

Printers / Copiers,

Industrial Equipment,

Medical Equipment,

security etc.



Competitive Advantages



Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS
