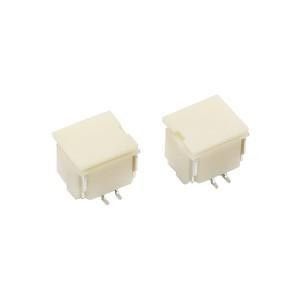

SMT 2-15 Pin Connector PHB 1.25 Mm Wafer Connector Vertical With Buckle

SMT 2-15 Pin Connector PHB 1.25 Mm Wafer Connector Vertical With Buckle
SMT 2-15 Pin Connector PHB 1.25 Mm Wafer Connector Vertical With Buckle

Large Image :  SMT 2-15 Pin Connector PHB 1.25 Mm Wafer Connector Vertical With Buckle

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

SMT 2-15 Pin Connector PHB 1.25 Mm Wafer Connector Vertical With Buckle

Description
Type: Connector Color: White
Product Name: Wafer Box Connector Pin: 02 To 15 P
Mounting Type: SMT Pitch: 1.25mm
High Light:

1.25mm 15 Pin Connector

,

SMT 15 Pin Connector

,

2Pin 1.25 Mm Wafer Connector



2-15pin connector PHB 1.25mm vertical smt wafer connector with buckle

Short Description:

2-15pin connector PHB 1.25mm vertical smt wafer connector with buckle

Product category:Wafer female socket / Wire To Board

Send email to us Download as PDF

Product Detail

Product Tags

Xietaikang`s leading wire-to-board 1.25mm-pitch connector system provides design flexibility with multiple header options, making it ideal for a variety of applications across many industries.

Wafer connector is offered in wire-to-board options. The system saves about 45% of PCB space compared to typical 2.00mm wire-to-board systems. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.

A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.

Specifications

Mounting Type

SMT

Pitch

1.25mm

No. Of Positions

2-15p

Rated current

1.0A AC

Rated voltage

50V AC/DC

Contact Resistance

20m ohms MAX

Insulation Resistance

100m ohms min

Insertion Force

20gf/pin Min

Operation Temperature

-25to +85℃

Withstanding Voltage

500V/1min AC

Housing

LCP UL94V-0

Contact

Brass Tin-plated

Gender

Female



Contact Details
Shenzhen Xietaikang Precision Electronic Co., Ltd.

Contact Person: Tina

Tel: 86 13711847246

Send your inquiry directly to us (0 / 3000)
