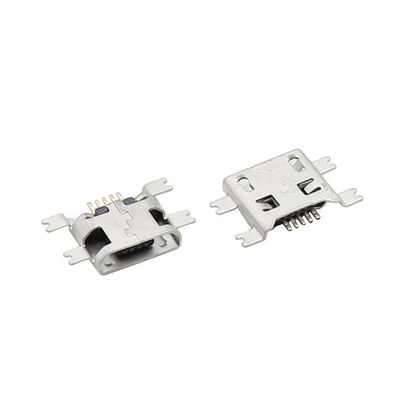

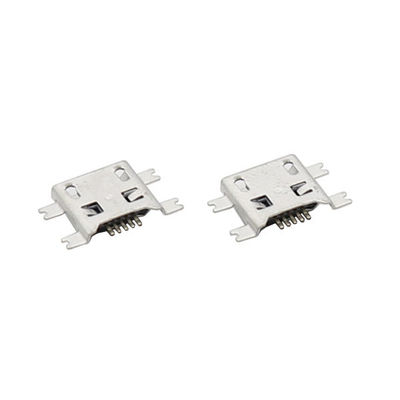

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT
Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT

Large Image :  Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: MICRO USB
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT

Description
Keywords: Micro Usb Connector Durability: 10000 Cycles
Storage Temperature: -30℃ ~ +80℃ Insulation Resistance: 100M Ohms Min./500 VDC
SMT Peak Temperature: 245 ± 5℃ 3~5S Application: Phone, Tablet,electric Device
High Light:

1.17mm micro usb female charging socket

,

SMT micro usb female charging socket

,

1.17mm SMT USB connector

Sink Type Car Charger Panel Mount Micro USB Female Connector Mid-Mount 1.17 SMT





Product Description





Item sink type car charger panel mount micro usb female connector
Model MCU117-T1T1-2010-A
Current Rating 1A AC/DC
Operation Temperature -30 ~ +80
Storage Temperature -30 ~ +80
Contact Resistance 50m ohms max.
Insulation Resistance 100M ohms min./500 VDC
Durability 10000 cycles
SMT Peak Temperature 245 ± 5 10S
Insulator Material High Temperature Thermoplastic with g. f , UL 94V-0
Terminal Material copper alloy, T=0.20mm
Shell Material stainless stell, T=0.25mm
Terminal Finish 50u" min nickel underplated on allover, gold
plating on contact arer,
80u" min tin on solder tail
Shell Finish 50u" nickel underplater on allover, gold flash on solder latch

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT 0

Drawing

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT 1

Material Specification

1) Mid Plate: stainless steel
2) Front shell : stainless steel
3) Housing: Hig Temperature resistant plastic,UL94V-0.
4) Contacts : Copper Alloy

Product Application

Our connectors are widely applied to lots of cummunications industry ,cusumer electronics,computer peripheral products , action camera manual mini sport DV, rear DVR video recorder , automotive filed, medical equipment , military industry and so on .
