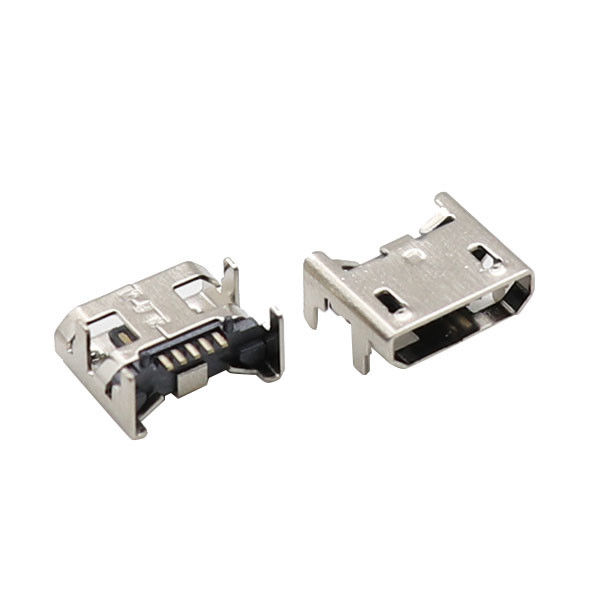

UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate

UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate

UL94V-0 Micro USB Connectors

5pin Micro USB Connectors

UL94V-0 5 pin female socket

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

MICRO USB

Contact Us
Request A Quote
UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate
UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate
Product Details
Voltage Withstanding:
100V AC/1Minute
Current Rating:
1A AC/DC
Contact Resistance:
50m Ohms Max.
Durability:
10000 Cycles
Gender:
Female
Insulation Resistance:
100M Ohms Min./500 VDC
Highlight:

UL94V-0 Micro USB Connectors

,

5pin Micro USB Connectors

,

UL94V-0 5 pin female socket

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
RELATED PRODUCTS
Good price LCP Micro Usb Female Connector Port 5 Pin 5.9mm Pitch With Edge online Video

LCP Micro Usb Female Connector Port 5 Pin 5.9mm Pitch With Edge

Get Best Price
Good price Plain Charging Port Female Micro USB Plug Socket 5P 5.9mm online Video

Plain Charging Port Female Micro USB Plug Socket 5P 5.9mm

Get Best Price
Good price Female 5 Pin 5.9mm Pitch Mini Micro USB Connectors With Post Plain Port online Video

Female 5 Pin 5.9mm Pitch Mini Micro USB Connectors With Post Plain Port

Get Best Price
Good price SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001 online Video

SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

MICRO USB 5P Female Socket Legs Inserting Seat Jack Plate Mini USB Connector





Product Description



Item MICRO USB 5P Female Socket Legs Inserting Seat Jack Plate Mini USB Connector
Model

MCUQC-T1T1-2010-A
Current Rating 1A
Operation Temperature -30℃ ~ +80℃
Storage Temperature -30℃ ~ +80℃
Contact Resistance 50m ohms max.
Insulation Resistance 100M ohms min./500 VDC
Durability 10000 cycles
SMT Peak Temperature 245 ± 5℃ 10S
Voltage Withstanding 100V AC/1Min



UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate 0



Drawing

UL94V-0 Micro USB Connectors 5 Pin Female Socket Legs Inserting Seat Jack Plate 1



Material

Insulator: High Temperature Thermoplastic with G.F., UL 94V-0
Contact: Copper alloy, T=0.20mm
Shell: stainless steel, T=0.25mm

Application

mobile phone
GPS Navigator
LCD TV
Fashion device

Process Flow

Check material by line leader & IPQC-->Automachine cut molding-->Assemble shell-->Rivet shell-->Electrical test-->Hi-pot test-->Coplanarity-->True position-->Appearance-->FQC inspection-->Warehouse.

Our Service


Your inquiry related to our product & price will be replied within 12 hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
