Product Details:
|
| Mounting System: | Mid-mount | Terminal Material: | C5210 |
|---|---|---|---|
| Certificate: | ROHS SGS ISO9001 | Shell Material: | SUS |
| Packaging: | Tape + Reel (TR) | Application: | Automotive |
| High Light: | Female 5P mid mount usb connector,0.8mm micro usb socket female,0.8mm mid mount usb connector |
||

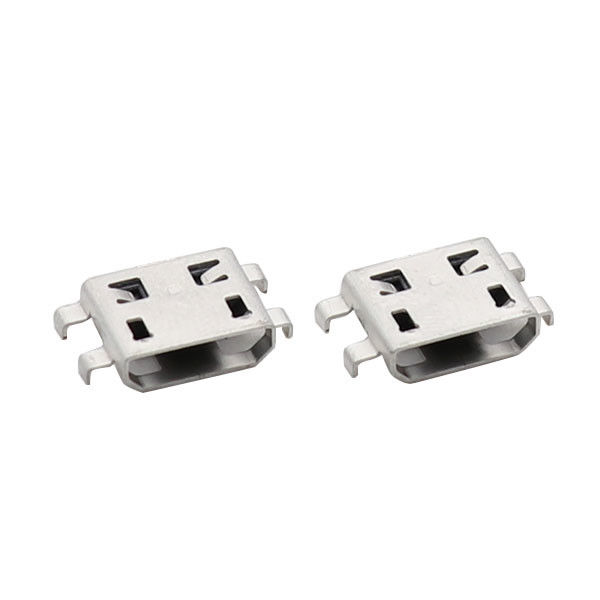

Charging Port MICRO USB 5P Female Socket Mid-Mount 0.8 Four Feet Dip Sinking Type
Product Description
| Item | Charging Port MICRO USB 5P Female Socket Mid-Mount 0.8 Four Feet Dip Sinking Type |
| Model | MCU08-T1T1-2011-A |
| Brand | XTK |
| Mounting system | Mid-Mount |
| Plastic material | LCP |
| Shell material | SUS |
| Terminal material | C5210 |
| Structure type | sinking type |
| Insulator material | LCP ,COLOR:BLACK, rated UL94V-0 |
| Contact Material | Phosphor Bronze , T=0.15mm |
| Contact Finish | Selective Gold Plated on Contact Area, Plated GOLD 1u” on Solder Area |
| Shell Material | SUS304-1/2H.T=0.15mm |
| Contact Finish | 50u”NICKEL Plated on allover, gold flash on solder ground. |
| Voltage Rating | 30V AC |
| Current Rating | 0.5A Max |
| Operating temperature | -20℃ +60℃ |
| Storage temperature | -40℃ +85℃ |
Drawing
