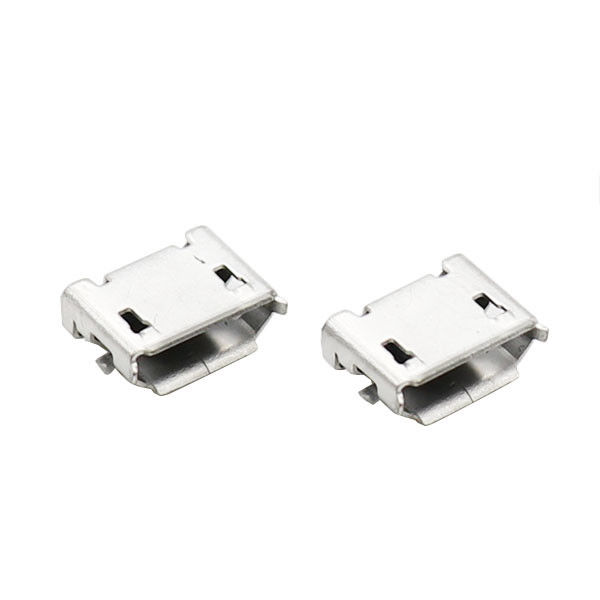

Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin

Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin
Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin
Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin

Large Image :  Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: MICRO USB
Payment & Shipping Terms:
Minimum Order Quantity: 600pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin

Description
Characteristic: Flame Retardant/flame Retardant Interface Type: USB
Contact Material: Copper Species: Plug/socket
Gender: Female Craftsmanship: Injection Molding
High Light:

SMD Micro USB Connectors

,

SMT Micro USB Connectors

,

5Pin usb smd connector

Micro USB 5pin B Type Female Connector For Phone SMD SMT Soldering PCB Mount Micro USB Connector


Product Description


Secification: 5 P
Type : Micro USB
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0


Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin 0

Drawing
Type B SMD SMT Soldering PCB Mount Micro USB Connectors 5 Pin 1


Material Specification

1) Mid Plate: stainless steel
2) Housing: Hig Temperature resistant plastic,UL94 V-0.
3) Solder area: Au : G/F
4) Front shell : stainless steel

Product Application

XTK connectors are widely applied to lots of industries, such as computer peripheral products ,cusumer electronics, action camera manual mini sport DV, rear DVR video recorder , unmanned aerial vehicle, cummunications industry ,military industry ,automotive filed, medical equipment and so on .



FOQ

1: May I get free samples?
A: Sure, 10-20 pcs of free samples are available for normall models. We need to confirm height, operation force and price before shipment.

2: When can I get the quotation ?
A: We will send you quotation within 24 hours.

3: When can I get the samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.

4: Can you accept small order, like 1000 pcs , 2000 pcs ?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.

5: What's the lead time of bulk order ?
A: Normally, lead time is 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.

6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by TT.

7. Can you open mold for teminal order or uncommon models ?
OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

8.What's your advantage ?
1.We provide 30 days return or refunds if any quality issue;
2.Our sales 24hrs online,you can contact us anytime,even though 03:00am in the morning.
