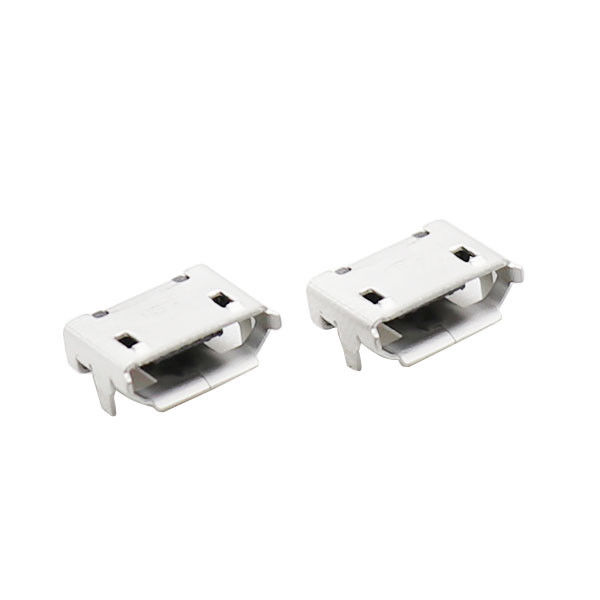

LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange

LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange
LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange
LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange

Large Image :  LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: MICRO USB
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 2KK pcs

LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange

Description
Application: Power, PCB Craftsmanship: Injection Molding
Contact Material: Copper Number Of Cores: Single-Core
Shape: Rectangle Insulator Material: LCP Plastic
High Light:

LCP Micro USB Connectors

,

5Pin Micro USB Connectors

,

LCP micro usb type b connector

Magnetic Micro USB B Type 5 pin With Flange With Post Socket





Description



Mounting Type SMT
No. Of Positions 5p
Rated current 1.0A AC
Rated voltage 30V
Contact Resistance 30m/pin ohms MAX
Insulation Resistance 1000mohms min
Insertion Force 8-35 N
Operation Temperature -25℃ to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days



LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange 0



Drawing



LCP Plastic Magnetic Micro USB Connectors Type B 5 Pin With Flange 1



Material Specification



1) Mid Plate: stainless steel

2) Front shell : stainless steel

3) Housing: Hig Temperature resistant plastic,UL94 V-0.

4) Contacts : Copper Alloy



Product Application



Our connectors are widely applied to lots of industries, such as cummunications industry ,cusumer electronics, automotive filed, medical equipment , military industry , Computer Peripheral Products , action camera manual Mini Sport DV. Rear DVR Video Recorder , unmanned aerial vehicle and so on .



Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.



FAQ



Q1: Can you provide samples and catalogue ?
A: Yes, send our your request via email, we can provide free samples with the catalogue as long as you can pay for the shipping cost.

Q2: I can not find the product on your catalogue, can you make this product for me ?
A: Yes, we have many common products on catalogue but not all of our products be showed on it. We following the market trends and keep renewing the product types, tell our enginners what your needs , we can help to design or source it.

Q3: I do not have product drawings, can you still quote my product ?
A: Yes, you can describe the product details as many as possible to our experienced and professional enginners ,they can produce drawings for you.

Q4: How can we ensure our information no let third party to see our deaign ?
A: We are willing to sign confidentiality agreement to keep customers data in high confidential level.

Q5: How can you ensure the product qualities ?
A: Porducts are 100% inspected before shipment by our Quality Department, also we can provide ISO9001, IQC ,SGS ,RoHS certificates to our customers.

Q6: What about the delivery time ?
A: 1-3 days for common stock products, and the customized products could be negotiable.

Q7: What about the shipping method ?
A: We support exprees such as DHL, FedEX, UPS, TNT, EMS and etc...

Q7: What kind of payment do you accept ?
A: We can accept T/T, Western Union, PayPal, L/C at sight and etc...
For longer terms or more information, please feel free to contact our sales team to get more details.

Q8: What is your warranty ?
A: Normally, our warranty is about 1 year, but it can depends on the actual situation.
Our service principle is customer first, we are willing to provide customer satisfaction after-sales service.
