Product Details:
|
| OEM And ODM: | Welcome | Gender: | Female |
|---|---|---|---|
| Rated Current: | 1.8A AC | Rated Voltage: | 30V |
| Contact Resistance: | 30m/pin Ohms MAX | Withstanding Voltage: | 100V/1min AC |
| High Light: | SMT Micro Usb Female Charging Port,5p micro usb female charging port,SMT female charging jack |
||

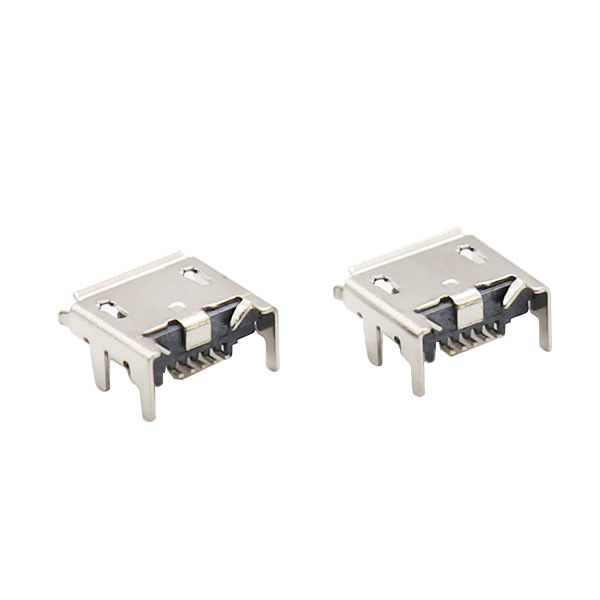

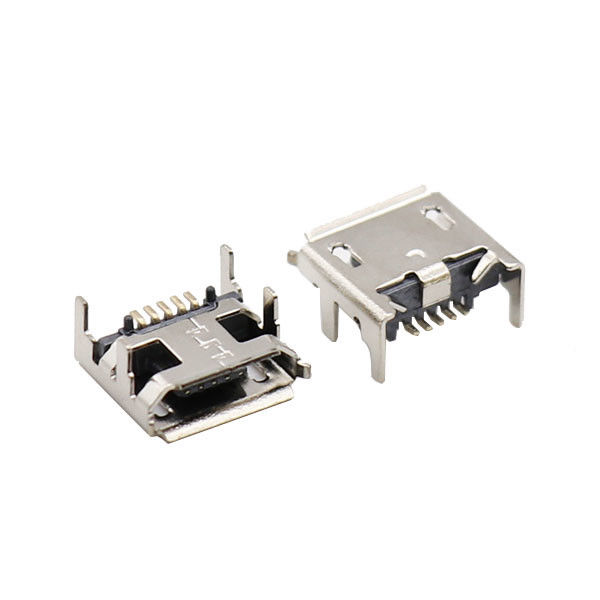

Female Charger Mount Jack Connector MICRO USB 5P socket four feet DIP
Product Description
| Mounting Type | SMT |
| No. Of Positions | 5p |
| Rated current | 1.8A AC |
| Rated voltage | 30V |
| Contact Resistance | 30m/pin ohms MAX |
| Insulation Resistance | 100mohms min |
| Insertion Force | 8-35 N |
| Operation Temperature | -30℃ to +85℃ |
| Withstanding Voltage | 100V/1min AC |
| Housing | LCP |
| Contact | Copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
Drawing
Packaging & Shipping
MOQ: 1000pcs 7.20mm card audio micro usb charging port charger female connector
Trade Terms: FOB HK; Ex-work
Payment Terms: T/T, L/C, Western Union; 30% deposit in advance, 70% balance before shipping
Delivery Time: Within 7 working days after receiving deposit.
Packing: 1. Tape reel package;
2. Diameter of Reel: 13";
3. Cover Tape: Transparent;
4. Use K=K carton to prevent transport damage
Shipping: By sea, by air delivery or express such as DHL, TNT, UPS etc.
Refund & Replacement
1. We provide 30 days warranty.
2. If the item you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
