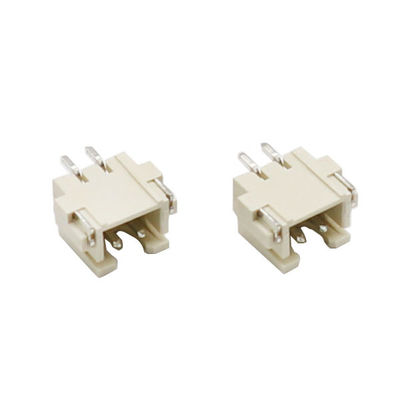

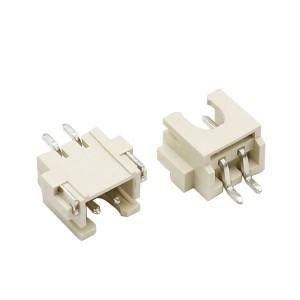

Wire To Board Header 2.54mm pitch PCB Housing Wafer bOX connector SMT type- horizontal
|No. Of Positions
||3.0A AC DC
||20m ohms MAX
||1000m ohms min
||-25℃ to +85℃
||5000 Cycles Min
||7-10 working Days
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:
- Parallel or mezzanine – both connectors are vertical orientation;
- 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
- 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
More than 80% XTKCONN products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
1.Specializes in manufacturing connector more than 15 year as well as export the relevant component more than 10 years
2.UL-marked products conform to REACH and ROHS regulations
3.Rich selection of connector,terminal,PIN,female header, automotive terminals and more
4.ISO 9001:2008-certified factory quipped with automated assembly lines
5.Up to 40 million units turned out each month
6.The KR BRAND can replace JST,Molex,YEONHO,Tyco,AMP,HRS,JWT,JMT, ect.)
7.R&D team updates every month with 20 new items
8.Sample take up to 3 days,but can be finished with one day in urgent cases
9. Specialized in providing connector solutions for customers and providing customized services.
10.Custom orders welcome.
