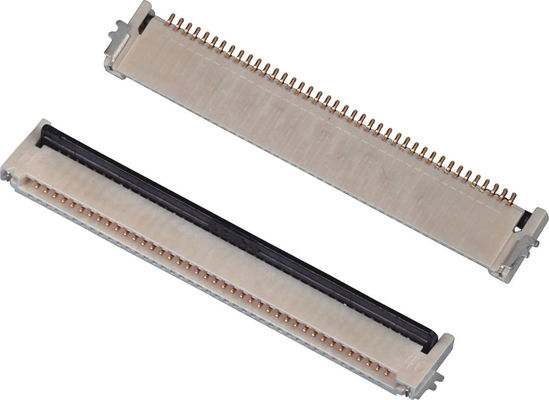

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits
0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits 0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

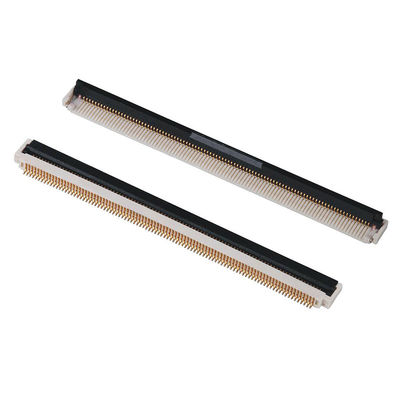

Large Image :  0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: FPC**-T1S1-2030-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

Description
Pitch: 0.5mm Height: 2.0mm
No. Of Positions: 4-96pin Contact Location/Type: Dual Contact,Back Lock,Gold-plated
Current Rating: 0.5A/Pin Max Housing: LCP UL94V-0 Natural
High Light:

96 Circuits FFC FPC Connector

,

2mm FFC FPC Connector

,

SMT 0.5 mm pitch connector

Dual Contact 0.5mm FFC FPC Connector Height 2.0 right angle SMT 4~96Circuits





Description

This Series are FPC/FFC Connectors designed for applications such as GPSs,consumer electronics and AV equipment for automobile use or electronics for industrial and/or medical use which require resistance to vibration. These products are 0.5m pitch,2.0mm height, bottom contact or dual-sided contact, right angle, SMT, ZIF connectors with front locking or back locking. Structures of bottom contact prevent FPCs/FFCs from becoming disjointed or inserted aslant.Structures of bottom contact prevent poor contact.We also offer 1mm pitch type.

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.


Specifications

Pitch 0.5mm
Height 2.0mm
Mounting Type SMT/ZIF
No. Of Positions 6-96pinpin
Contact Location/Type Dual contact,Back lock,Gold-plated PN:FPC**-T1S1-2030-A
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating  Gold-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits 0



Primary Competitive Advantages

Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS
