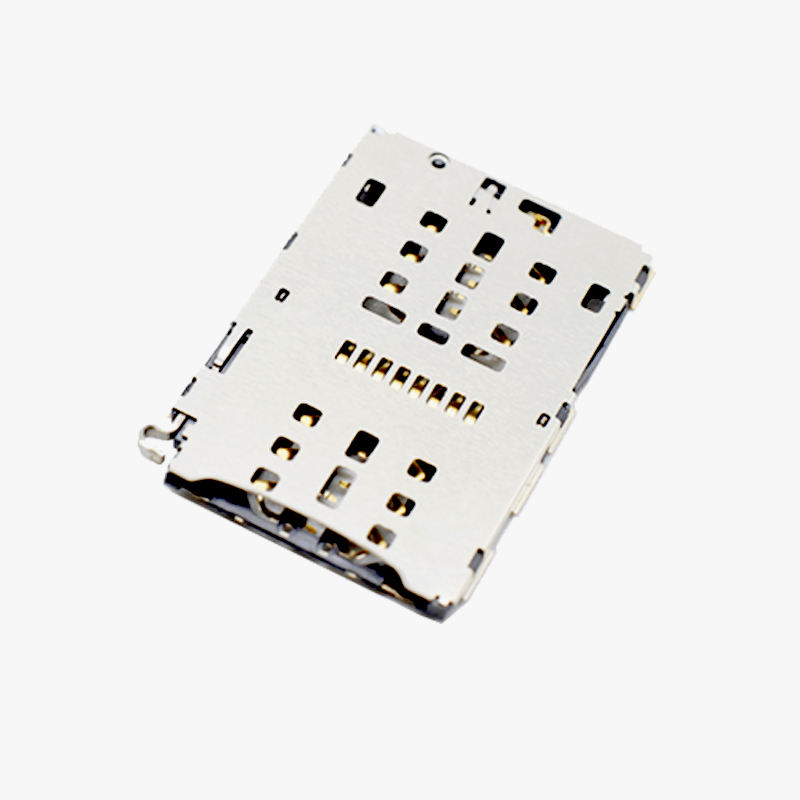

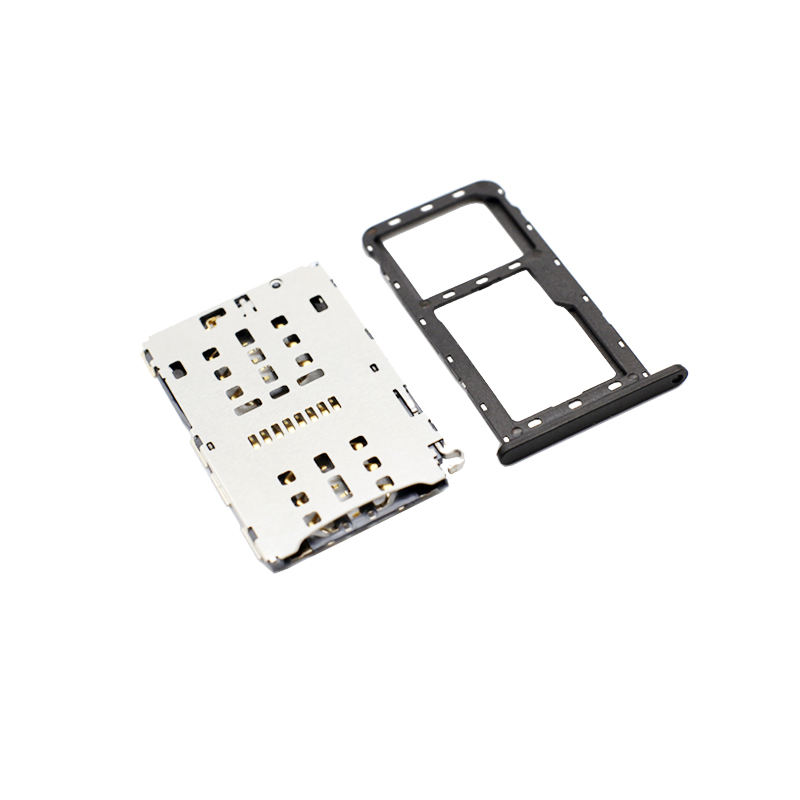

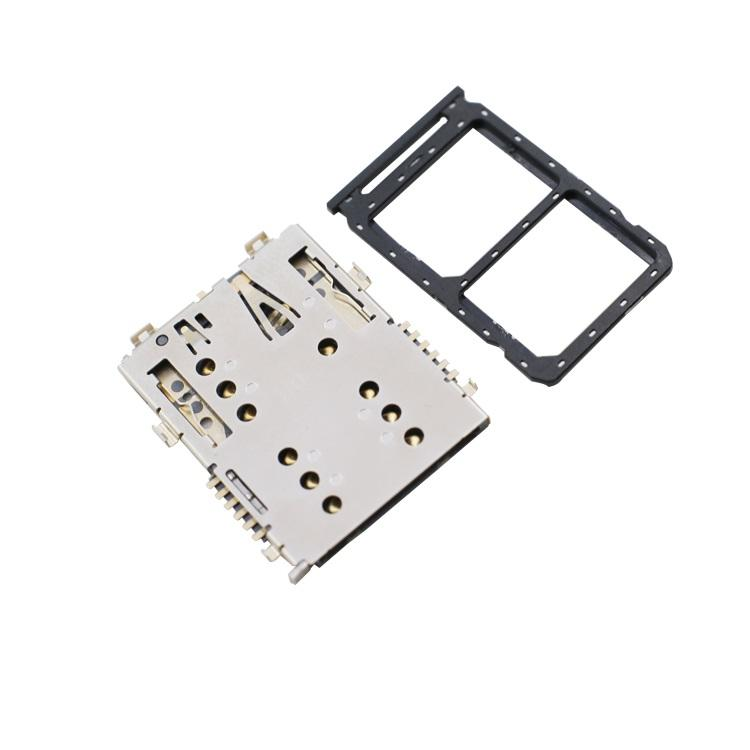

Nano SIM + TF Card Combo Connector | Push-Push PST Pair SMD SIM Socket

Highlight

1. Mechanism: Push-Push Eject Structure: Push-to-lock / Push-to-eject, no separate eject pin. NOT Push-Pull / NOT Hinge type. Optimized cam track solves the top failure pain point: uneven end-user pushing force that causes cards to stick, jam, and lead to push-push failure.
2. Ultra-Long Durability: 50,000 Mating Cycles Guaranteed. Phosphor bronze spring contact beam with stress-relief curved design suppresses metal fatigue under frequent hot plugging; far exceeds the industry-standard 10,000-cycle rating for high-cycle IoT, handheld terminals.
3. Anti-Card-Blocking & Anti-Reverse Insertion Design: Molded polarisation rib + mechanical stop structure. Wrong-direction insertion is physically blocked, preventing users from forcing a misaligned SIM/TF card to damage contact springs or the lock cam. Eliminates field RMA from card jams & bent pins.
4. Built-in Card Detect Switch: Hardware card presence signal for host MCU detection.

Technical Specifications Table

Cross Reference / Drop-In Replacement (Compatible Big Brands)

Pin-to-pin & footprint compatible with mainstream international combo SIM+TF sockets: Molex 1042391430, Hirose DM3N series, TE 2199337 series, JAE ST11S series.

Advantage: Direct PCB replacement, no board redesign required. We improve cam & spring structure to fix the original OEM jam / short-lifetime weakness.

Product Features

• Ternary 3-Choose-2 PST design: Select Nano SIM (4FF) OR TF / Micro SD card
• SMD low-profile design for compact handheld, portable hardware
• Halogen-free LCP housing, suitable for EU REACH & RoHS
• Reinforced stainless shield shell for EMI shielding and anti-deformation
• Precision cam mechanism with stable tactile feedback
• Polarised anti-misinsertion geometry

Product Advantages

1. Field failure reduction: Target the #1 push-push failure – card jam & spring fatigue
2. Drop-in alternative to premium imported brands, shorter lead time & competitive cost
3. 50k cycles long-life contact beam: fit for high-frequency plug industrial devices
4. Tape & reel packaging, compatible with standard SMT pick-and-place
5. Card detect switch option for system hot-swap logic
6. RoHS / REACH compliant, supply chain traceability

Our Service

2. Sufficient Production Capacity---solve the troubles of large orders for you
3. Professional Customization---provide one-stop service for connectors
4. Solve Problems --- we will solve all production problems for you before shipment
5. Fast Delivery---provide multiple delivery solutions to save logistics costs

Application Scenarios

IoT Gateways,

4G/5G Modules,

 Smart POS,

 Handheld Data Collector,

 DVR,

 Dashcam,

 Industrial Controller,

 Smart Meter,

 Portable Medical Terminal,

 Smart Lock,

 Wireless Router.

Packaging

Standard: Tape & Reel (Reel Pack), directly compatible with SMT automatic assembly lines; cut tape available upon request.

Lead Time & Sample / MOQ Policy

• Sample: 3 working days
• Bulk Order: 1–3 weeks
• Sample Policy: Free samples available, fast sampling support
• MOQ: Negotiable, small batch support for NPI prototype

Factory Certification & Custom Service

• Certifications: ISO9001, IATF16949 (automotive option), RoHS, REACH, UL
• Customizable options: Profile height, card detect switch logic, plating thickness, pin assignment, carrier tape modification, custom logo & packaging.

Engineer Selection Guide

1. Push-Push vs Push-Pull vs Hinge: This model = Push-Push. Choose when no external tray is preferred; best for thin enclosures. If your end-user needs a physical card tray, select Push-Pull type instead. Hinge is mainly for low-cycle consumer use.
2. Cycle rating selection guide

• Consumer low-frequency use: ≥10k cycles
• Industrial / field service / frequent swap: Select this 50k version

3. Layout reminder: Reserve clearance for push-push cam travel on PCB; avoid plastic enclosure pressing directly onto card top.
4. Plating note: Hard gold contact is mandatory for high-cycle / humid environment; tin plating only for static, rarely swapped cards.

FAQ

1): Can you send Free samples for quality check?
Yes. In most cases, we can provide samples for Free.

2): How does your factory apply quality control?
- Before production, XTK has a meeting with all management personnel to confirm all product details
- We have high-precision punching equipment, high-precision injection molding equipment, and fully automated production equipment to strictly control the product quality.
- All the materials will be checked by sales and production management before use.
- Each production line has a team leader to monitor quality.
- Specialized quality controllers check quality on finished products.
We will keep you posted on the updated order status in a timely manner.

3) Why is your product so cost-effective?
- With our mission to help our customers cut down overall costs, we don't believe in an overpriced strategy.
- XTK has been striving to do our best to keep prices as low as possible without sacrificing quality. Beyond that, XTK improves the competitiveness of manufacturing costs by actively seeking the best possible component options and managing supply chain logistics.
So, we could help ease your capital pressure and develop a mutually beneficial business relationship together.

4. Why should you buy from us, not from other suppliers?
-15 years of precision connector manufacturing -Strong technical innovation and R&D team -Designated supplier for renowned enterprises -Customized services and solutions -Low MOQ production
